Wiring up the H22 (using P13 ECU and modifying the Civic harness)

I didn't have the bracket to hold the timing belt tensioner, so I whipped this up in a few minutes with a spare bracket, a hammer, and a cutting wheel...

It doesn't seem like it could fit!

PUSH! PUSH!

More to follow this coming week =) See more of my swaps at Phoenix Tuning - Home and PSD_Home

TurboMirage · 11-04-2006, 09:36 PM

nice!

i hope that bracket holds

Dr Tweak · 11-04-2006, 10:22 PM

Oh no, that bracket doesn't stay there, it just holds the hydraulic tensioner in a compressed position so that I can slip the new timing belt on. Then it's removed and it tightens the belt up.

Dr Tweak · 11-18-2006, 03:24 PM

Here's the rest of it

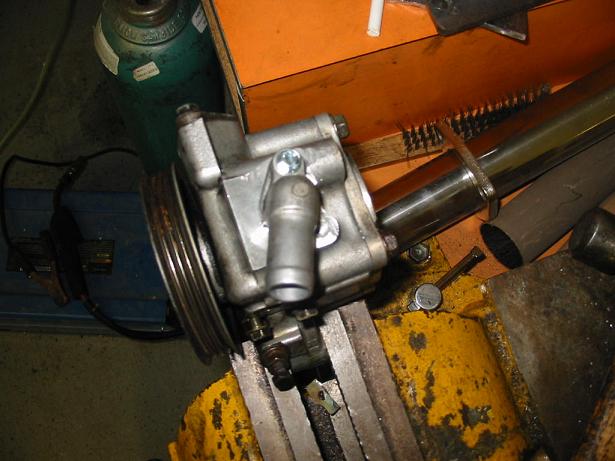

Modifying the power steering pump. I rotated the return line fitting and drilled a new hole to bolt it in. I had to trim the pump a little for it to fit.

First startup...

After I confirmed that it was running correctly, I detached the harness and loomed it up...

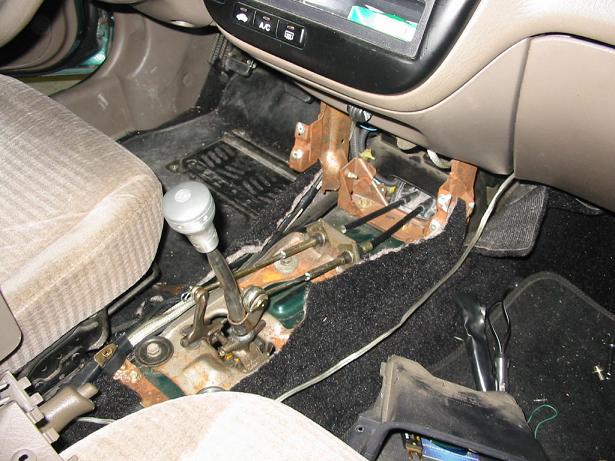

Cutting the hole for the shifter...

Shot from underneath...

There it is. Once the interior was installed you could hardly tell.

Exhaust installed. The cat-back had to be shortened to fit.

Installing the new fuel pump...

The P13 ECU just barely fits behind this trim panel.

All that needs to be done is the a/c and clean up the engine. It runs great and is VERY strong.

97SuperCivic · 12-04-2006, 10:39 PM

Hey, looks great, clean as hell. How many swaps have you done, and how long did that take?

Dr Tweak · 12-04-2006, 11:44 PM

Well I'm an expert in all Toyota swaps since I've been doing them for quite some time now. This was my first H22/Civic swap though. It took me about 4-5 days of work including rewiring the harness (not using an adapter harness) and whatnot.

-Doc

Seany-izzle · 12-05-2006, 02:04 AM

awesome. what kind of mounts and axles did you use? Could you make a list of parts needed and stuff for reference purposes?

Dr Tweak · 12-06-2006, 10:36 AM

I beleive the kit was a place racing kit, and the axles were specific for the swap (provided by the customer). There are several lists out there if you look around, that's what I would do.

Where in VT are you from? I used to live in Newport.

-Doc

hazzardboy95 · 12-06-2006, 10:48 AM

nice swap, are you looking to hook it up anymore, or are you gonna run all motor

Seany-izzle · 12-06-2006, 08:45 PM

Quote:

Originally Posted by Dr Tweak

I beleive the kit was a place racing kit, and the axles were specific for the swap (provided by the customer). There are several lists out there if you look around, that's what I would do.

Where in VT are you from? I used to live in Newport.

-Doc

Oh no, not jewport haha. Im from brattleboro, southern vt. I go to school with a bunch of kids from up yonder.

DelSlow89 · 12-11-2006, 10:43 AM

Hey I Got a 93 Del sol and im tryin to get a new engine for it. i was looking at the b16, b18 and b20 and im not sure which one would be the easiest to do?

reikoshea · 12-11-2006, 11:05 AM

Quote:

Originally Posted by DelSlow89

Hey I Got a 93 Del sol and im tryin to get a new engine for it. i was looking at the b16, b18 and b20 and im not sure which one would be the easiest to do?

best to create a new thread for this question.

Sick swap, doc. Looks like it belongs there.

ThatGuy4life · 12-11-2006, 05:58 PM

Great work man

DelSlow89 · 12-12-2006, 07:11 AM

How do you start a Thread, I'm new to this Forum and I have no clue how to post or start a thread. By the way How hard is it to swap a b15 del sol for a b18 and c1 LSD tranny

TurboMirage · 12-12-2006, 08:07 AM

nice job!!

blu · 01-10-2007, 09:14 AM

How hard of a swap was it? How much did it cost? I'm dying to put an H in my 98' Civic EX. I've heard I would lose power steering and AC, was it hard preserving those things?

Dr Tweak · 01-10-2007, 01:36 PM

I think including all the extra parts and labor it costed this customer around $2500, including the a/c and p/s and everything. That doesn't include the engine or mount kit.

-Doc
