    Just thought that I would start a build thread on my car since I'm bored in Afghanistan...

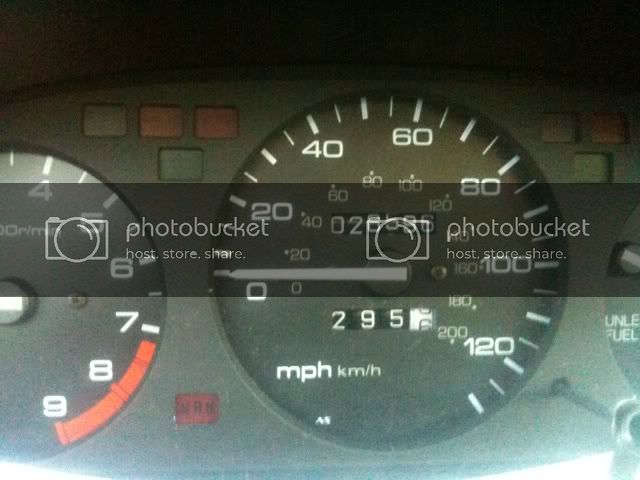

    When I first got the car. I bought it off of some German lady (I'm stationed in Germany) but it is American spec. I offered 1500 for the car but she only wanted 600 dollars for it. Not a bad deal for a car as old as it is with only 26,596 ORIGINAL miles. And yes the odometer still works. Her husband bought the car brand new for her and she only drove it back and forth to work which was less than a mile one way
    [​IMG]

  2. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    The dings in the driver side are where she hit a drunk pedestrian walking down the street, which is why I think she wanted to get rid of it.

    [​IMG]

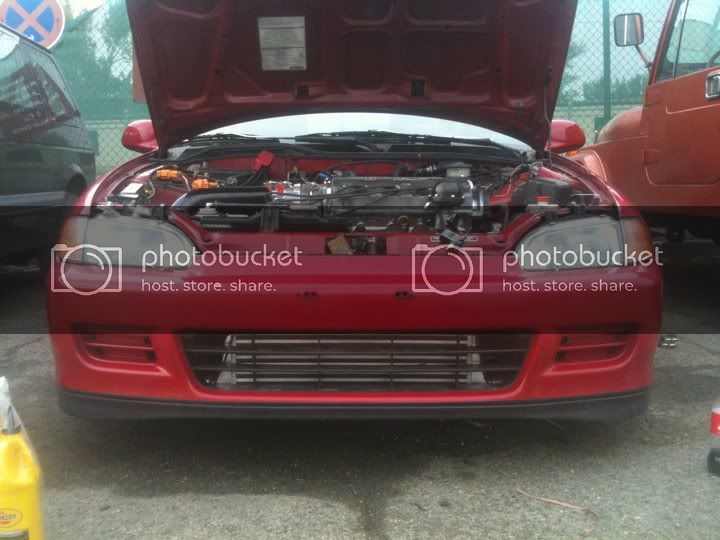

    Motor before I started canibalizing it :)

    [​IMG]

  3. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    About 2 weeks in to having the car, I was coming home from work and had to stop at a stop sign. When it was clear to go, I took off and about half way out I heard a snap. And then a clunk, clunk, clunk. Ill let the picture explain...

    [​IMG]

  4. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    Yes, Bob! A broken axle. They put so much salt on the roads in the winter time that it does harm than good. Being in Germany, it took 3 weeks to order new axles, as it did with every other part in the future. What I learned: NEVER build an American spec car in a foreign country.

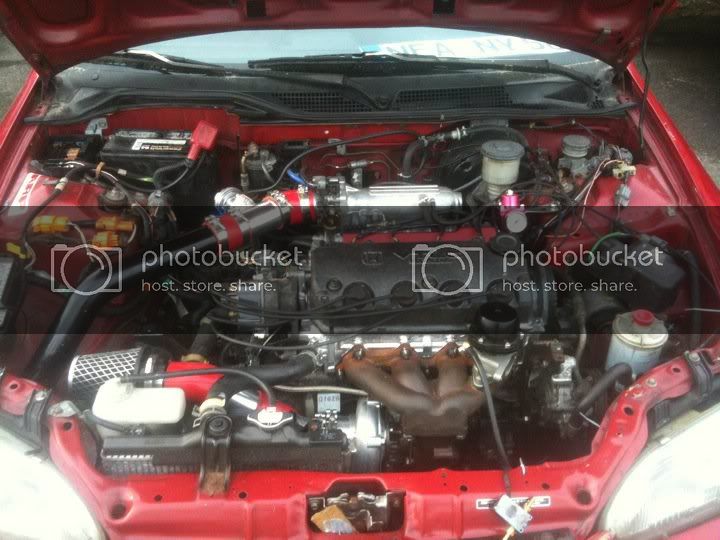

    While waiting on the axles to get here, I decided to install the turbo kit that I bought from eBay. Not the greatest option, I know. And I would later find out. But the turbo kit went on, along with the axles. As soon as I got the car running with the turbo, I took it for a test drive and I heard the car backfire and then cut off. It never started back. Still to this day, I have no idea what it was that made it do that. I had DSM 450cc injectors and a basemap on a P28 ecu boosting 8 psi on stock internals. But the good part about that is that I found out what the "Vitara Build" was so this is where it gets good. Unfortunately I dont have any detailed pictures on the car with just the turbo on it. This is the only one

    [​IMG]

  5. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011

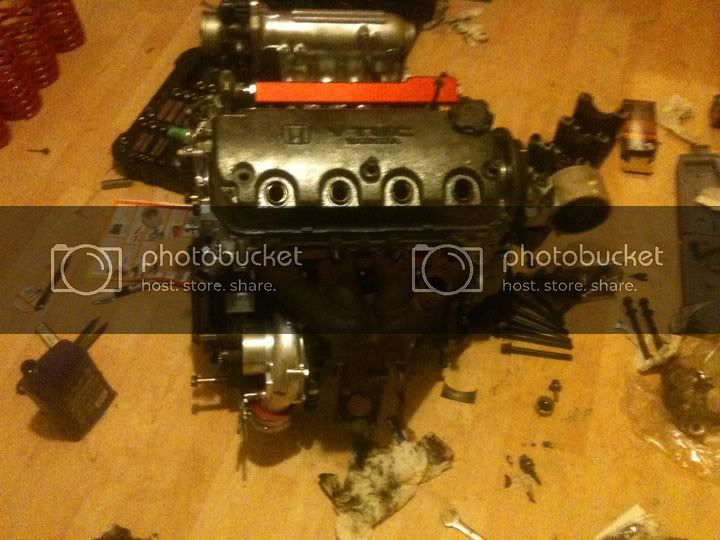

    Now comes the good part: This is when I started tearing the engine down for the new vitara set up

    [​IMG]

  6. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    I was going to do the internals with the motor still inside of the car but I didnt know that you have to notch the block in order to get the H-beam rods to clear the cylinder. The motor came out later and I tried to find a machine shop in Germany to notch the block but couldnt find anyone with a reasonable price. I ended up notching the block myself with a dremel tool.

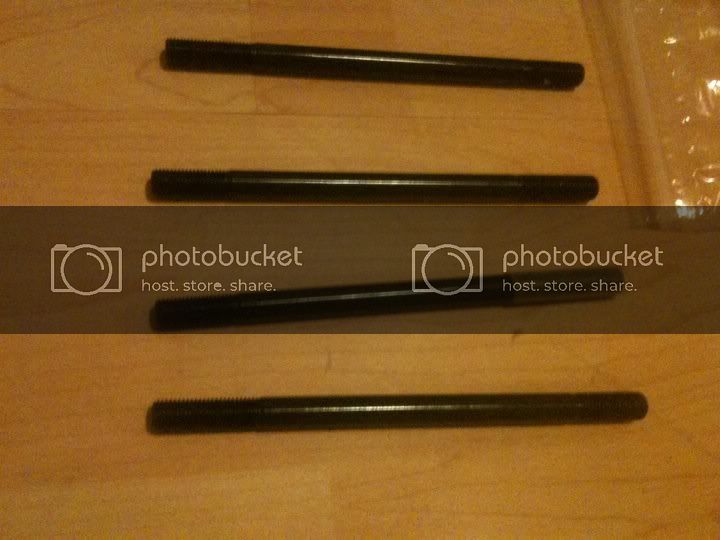

    For the pistons I went with 75mm vitara pistons with teflon coated sideskirts and Hastings rings. Rods are FJ R Spec custom length rods for low compression. 8:1 compression is where it set me to. ACL Race rod bearings and main bearings and ARP rod and head studs. Stock crank. Heres a little of my internals

    [​IMG]

    [​IMG]

  7. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    If you are married and have never done this, please take my word and dont put your motor in the spare bedroom in your house to work on it. Yes I have a garage but it was dead in the middle of winter. Im talking about 5 ft of snow and about 10 degrees outside. And german garages do not have any insulation or heat. But if you want to piss your spouse off, this is a good way to do it.

    Since I didn't have a ring compressor and nobody else did either, I came up with a method. I wouldn't recommend using it but what I did was take a coke can and a zip tie and put it around the piston and hit it in with a rubber mallot. Hey it worked.

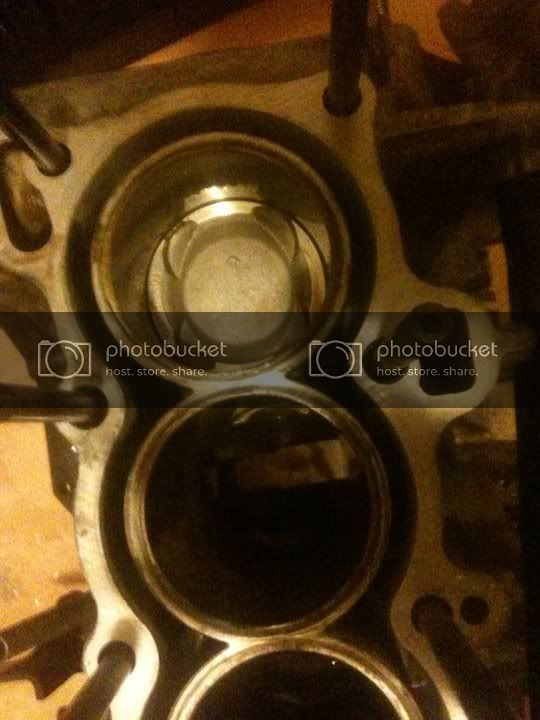

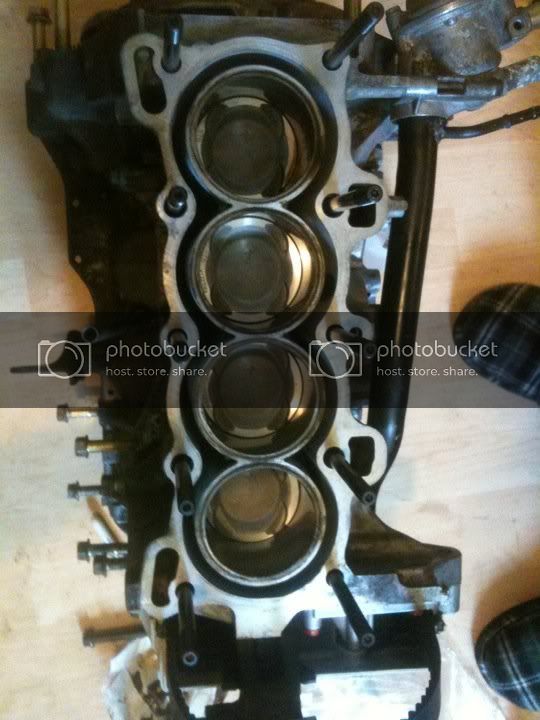

    Heres one piston in;

    [​IMG]

    and heres four pistons in :)

    [​IMG]

  8. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011

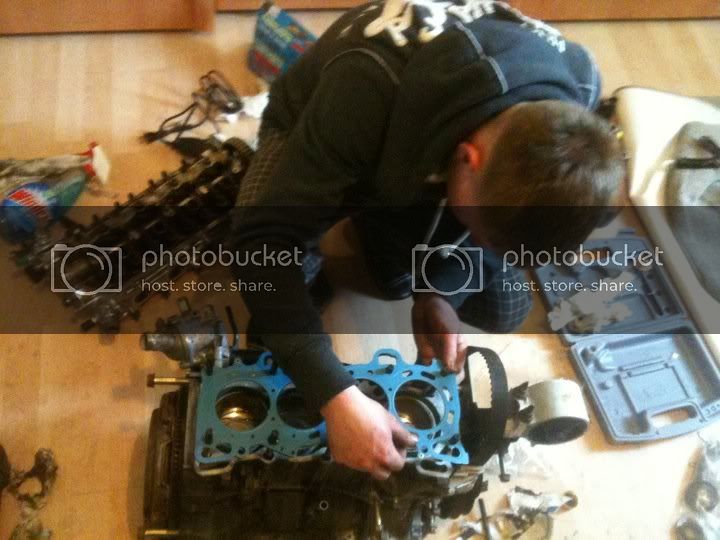

    Sealing everything on the engine is a Fel-Pro full engine gasket set. I used the Fel-pro MLS head gasket for the most vital gasket on the engine.

    Putting the engine back together.

    [​IMG]

  9. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    With a few busted knuckles and broken tools, I finally got the engine complete and ready to put back in the car. (My wife was more relieved that I was)

    [​IMG]


    [​IMG]

  10. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    Here is the engine inside of the car.

    [​IMG]

  11. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011

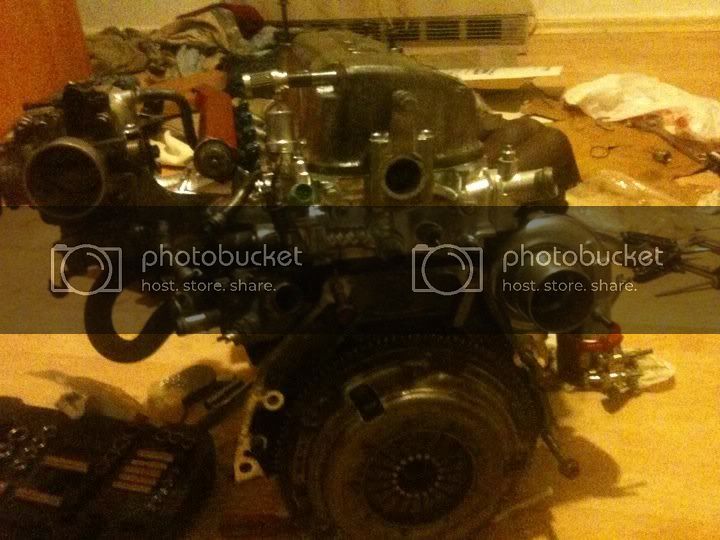

    This is when the motor installation was complete but It never ran right with the turbo. I found out later that I had blown the turbo. The way I found out was on the first start. The car jumped up the rpm like there was no tb installed. I had to take the intake manifold completely off and remove a piece of old gasket that was stuck and not letting the manifold seal completely. While taking the manifold off I found oil all inside of the pipes and tb. Also in the intercooler. DISASTER. But I learned not to buy ebay turbos again.

    [​IMG]

    [​IMG]

    [​IMG]

    The rims came from a friend of mine that was getting rid of his honda because of a blown head gasket. Swiped for 200 bones. They are Drag3. Im not sure what kind but they are light as balls. Tires arent so good though.

  12. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    Almost forgot

    So I got orders to come to Afghanistan for a year in July. I forgot to mention that I could never find out what was wrong with the car when the idling was all screwed up. I had put the car on the classifieds for sale but for some reason I didnt want to let it go. I just had to try and find out what was wrong. I had replaced the IACV, cleaned the FITV, bought a new virgin P28 ecu... nothing worked. The way I found the leak was by pulling the vacuum hose off of the fuel pressure regulator and blowing cigarette smoke in to the intake manifold. To my surprise smoke boiled out from between the mani and the head just below the vtec solenoid. Thats when I found out abou the turbo and the old piece of gasket. About 4 days from shipping out, I finally got the car running. This pic doesnt load on my photobucket acct. Maybe ill try again later. But once the car was running agian, It went in to the shop so I could install the Spyder exhaust from www.andysautosport.com, install blox lower control arms purchased from a friend, and finish on the skunk2 lowering springs. Also some tweaks and tunes to get the car running decent with 450cc injectors. Here are some pictures of after everything was installed and what the car looks like now. Im looking into a new turbo now but wont be able to install it until july 2012. Also some upgrades on the fuel system too.

    [​IMG]

    [​IMG]


    [​IMG]

  13. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011

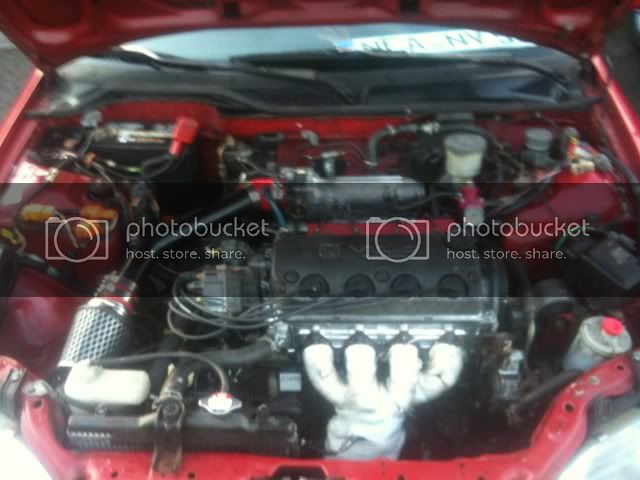

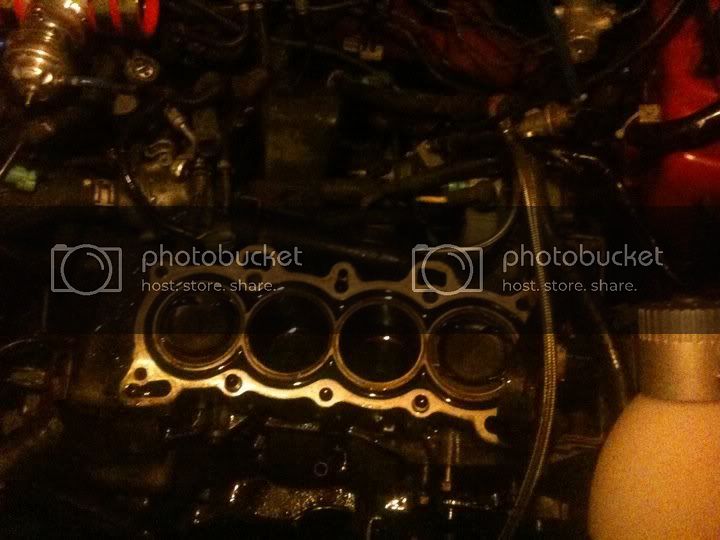

    And to touch back on the engine shot that wouldnt upload after the turbo was removed:

    [​IMG]

  14. caleb5947

    caleb5947 New Member

    Messages:
    19
    Likes Received:
    0
    Joined:
    Nov 18, 2011
    Well for now that includes my engine build. I get more anxious to get back on it when I get out of this hell hole. Oh and btw, I know the parts list is supposed to be up top but I forgot so Ill put it down here.

    Engine:
    D16Z6
    75mm Vitara pistons
    FJ R Spec custom length rods
    ACL Race rod bearings
    ACL Race main bearings
    ARP rod studs
    ARP head studs
    Fel-Pro full engine gasket set
    DSM 450cc injectors with resistor box
    MSD distributor cap
    AEM fuel rail and FPR
    Currently looking for a new turbo
    eBay piping and intercooler
    Some german filter
    Spyder cat back exhaust
    Header wrap

    Interior
    Glowshift A-pillar tripple gauge pod
    Glowshift boost, oil pressure, and oil temp gauges
    Sweet ass stock radio

    Exterior
    Drag3 rims
    Skunk2 sticker

    Suspension:
    Skunk2 lowering springs
    Blox rear lower control arms

    A special Thanks goes to:
    www.hondaswap.com
    www.honda-tech.com
    www.d-series.com
    www.fjdistributers.com
    www.glowshiftdirect.com
    My wife for putting up with this and all the people that helped me with this build!

    Soon to post more pictures of this build. But until then, Asta la vista, Baby

    (Did I mention that this was my first build ever?)
