B18c4 in Eg4 Ecu Pinout

Discussion in 'HYBRID -> EG-EK / DC' started by gefi, Aug 10, 2008.

  1. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
    Hi guys , i'm from Bulgaria and from http://hondabg.com , at this moment i'm doing a swap in my 5 gen eg4(obd1), the new motor is b18c4 , so far so good but i have a bit of a problem finding the pinout's of the ECU(p9k - OBD2 B) so my question is can someone help me [​IMG] I'm turning to you cause i see that you help allot of guys around here , and at Honda Fan Club Bulgaria we could not manage to find such diagrams or anything close to the one ...Thanks , Ivaylo

  2. jlicrx

    jlicrx Senior Member

    Messages:
    1,891
    Likes Received:
    65
    Joined:
    Jun 5, 2003
    Location:
    Colorado Springs
  3. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
  4. B16RacerN2NR

    B16RacerN2NR Working Hard VIP

    Messages:
    6,148
    Likes Received:
    99
    Joined:
    Feb 28, 2003
    Location:
    Moving back West...
  5. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
    The ecu has obd1 plugs but in all sort's of tablet's and information i found about it the people say it is obd2 :(

  6. B16RacerN2NR

    B16RacerN2NR Working Hard VIP

    Messages:
    6,148
    Likes Received:
    99
    Joined:
    Feb 28, 2003
    Location:
    Moving back West...
    That doesn't make any sense lol.

  7. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
    Yes i know but .... that is the way they give it ... i just found another motor like this , it is Honda Civic with d16y2(OBD2 "A") made after 1996 in UK and it has the same plugs ...tomorrow i will try to figure out if it has something in common with my ecu...

  8. jlicrx

    jlicrx Senior Member

    Messages:
    1,891
    Likes Received:
    65
    Joined:
    Jun 5, 2003
    Location:
    Colorado Springs

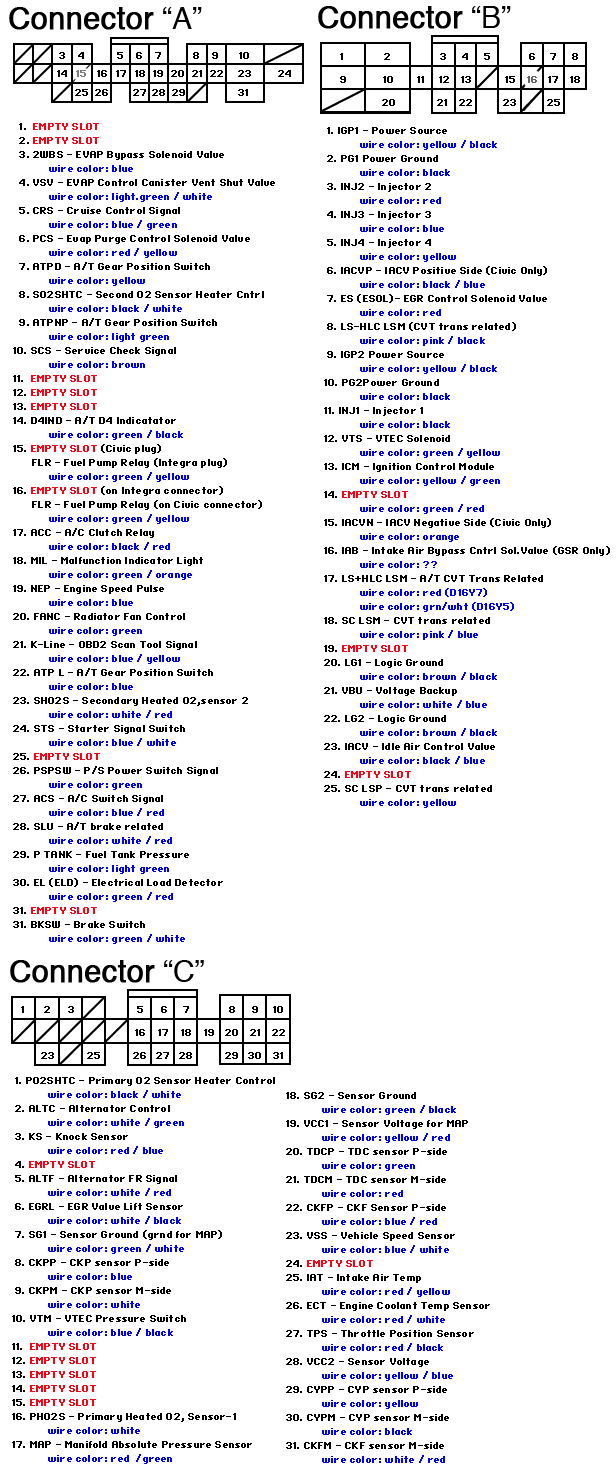

    maybe this will help (from 1998-1999 Civic Aerodeck Workshop Manual)

    [​IMG]
    [​IMG]

  9. jlicrx

    jlicrx Senior Member

    Messages:
    1,891
    Likes Received:
    65
    Joined:
    Jun 5, 2003
    Location:
    Colorado Springs
    this might be easier to read - looks to me like that the pinouts are the same as OBD1


    Attached Files:

    Last edited: Aug 11, 2008
  10. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
    Yes it helped , but there is a new problem the car won't start . Now , we conected everything , checked it 2 times , the ecu sends error 41 - which we didn't connect , fixed it , and again , the car won't start , it came out that the injectors don't inject the fuel .... they don't open . We tried a few things , like getting a "+" and "-" from a different place and they WORK , but when we connect them to the ecu , they stop working :(

  11. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
    Can the immobilizer be the problem , cause it is not wired and on the wire on the ecu there is 5v ... ? :(

  12. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
    i called the guy that gave me the motor and he gave me the immobilizer(the full set , even the steering wheel) and she still does't start ... :(

  13. YBLEGAL

    YBLEGAL Regular Member w/ Cheese

    Messages:
    2,762
    Likes Received:
    36
    Joined:
    Aug 9, 2006
    Location:
    NW Indiana
    bump for an interesting problem; i hope someone can get you going!

  14. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
  15. Korax

    Korax New Member

    Messages:
    1,379
    Likes Received:
    17
    Joined:
    Nov 29, 2007
    Location:
    Western PA
    People "bump" your post so It goes back to the top of the list where more people will see it.:)

  16. ukaccord92

    ukaccord92 Junior Member

    Messages:
    30
    Likes Received:
    0
    Joined:
    Jul 18, 2004
    hey man , im from the uk. im looking for a ecu pin out for a civic 5dr 16y2 , ive done the b16a2 swap but cant get the car to rev out im t5hinking the wires might be mixed up or somthing .....but if you cant hold of a diagram drop me a pm ...cheers dude

  17. gefi

    gefi New Member

    Messages:
    12
    Likes Received:
    0
    Joined:
    May 11, 2008
    What is your ecu ? And bump for my question :)

  18. ukaccord92

    ukaccord92 Junior Member

    Messages:
    30
    Likes Received:
    0
    Joined:
    Jul 18, 2004
    im using a p30 right now , before i was using the uk p1hek ecu for the d16y2 engine. that too started the car but had the same issue... im thinking it might be the dizzy but if i could get the ecu pinout for the ukdm car it might show me if ive done it right or wrong sumthin like that ...im in geat need . ive tried the dealership but that section of the manual is torn off completely it had to happen to be the d16y2 section too ..you got any thing on these car gefi ??
