DC Integra cluster swap

We may earn a small commission from affiliate links and paid advertisements. Terms

GlassHeadlights

West West Yall

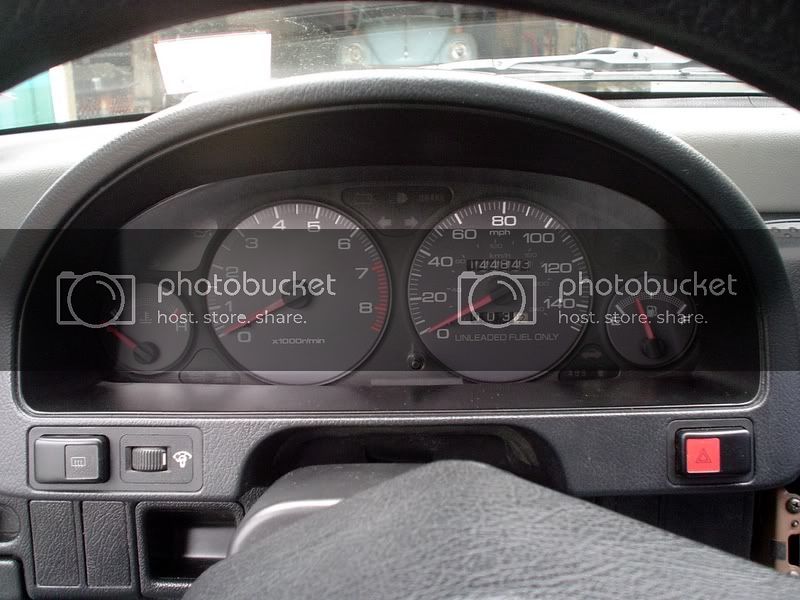

I want to put a LS Integra cluster in my CRX because I like the look versus my stock cluster and I want the redline at 7000 RPM for my Mini-Me.

This is what I think I need...

Cluster
Plugs for back?
Electric VSS

Anyone ever done this or seen this?

I think I'm gonna do it!


Last edited:
Ya, I'm pumped.

Anyone know which vss I would use? I think a eg d-series one.

i believe you need the vss from a 96-00 civic. a 92-95 d-series vss will have to be modified.

here's the pinout i put together when i did my cluster swap


Last edited:
Cluster
Plugs for back?
Electric VSS

Anyone ever done this or seen this?
Yes, that's all you need.

I had bad luck using those pinouts online; looks like there's a difference between years or trim. I ended up tracing the wires though; nothing difficult.

You can use any of the electric VSS(B-series will work too if you swap the gear). I ended up having to use a 96-00 one because my transmission is a little different(DOHC ZC) and the 92-95 style wouldn't fit.
