DIY: Install a 3.5 RL engine in your 91-95 Acura Legend

Discussion in 'NSX, TSX, RL, TL, CL' started by Mike Diaz, Feb 26, 2008.

  1. Mike Diaz

    Mike Diaz Junior Member

    Messages:
    75
    Likes Received:
    3
    Joined:
    Apr 4, 2006
    How to install a 96-04 3.5L Acura RL engine into a 91-95 Acura Legend
    Things you need:
    96-04 RL block (EDIT: 02-04 RL engines were rated with more horsepower & Torque, but it was related to muffler and ECU changes, not engine design. This will not benefit you with Legend electronics and exhaust.)
    RL heads
    RL driver side valve cover
    RL intake manifold
    RL throttle body
    RL timing belt covers
    RL egr valve
    RL passenger side front engine mount
    RL exhaust manifolds and 02 sensors (optional, but I used them)
    RL fuel rails, fuel pressure regulator, and fuel damper (optional, but I used them)
    RL timing belt and tensioner
    RL balance shaft belt
    Legend Coil packs
    Legend passenger valve cover & sensor
    Legend wiring harness
    Legend injectors
    Legend alternator
    Legend power steering pump
    Legend A/C compressor (if equipped)
    Legend differential
    Legend front driver side engine mount
    Legend front passenger engine mount
    Legend axles
    Any Legend transmission will bolt up to the RL engine. Only one bellhousing bolt will not line up. Ignore that one bolt.

    You do not need:

    RL differential
    RL injectors
    RL wiring harness
    RL coil packs
    RL ECU & ignitor. (Anything that isn't connected to the engine)
    Buy an engine stand and mount the RL engine to it. Then strip the engine down to the Block, heads and the driver side valve cover. Yes, the intake manifold should get new gaskets. Get your passenger side, front engine mount cut and welded so that the RL engine mount side bolts to the engine, and the Legend mount side, bolts to the rubber mount (see pictures for 91-93 Legends).
    Now is the time to clean and paint your engine if you want. I used High temperature low gloss black paint on the block and heads, and VHT gray wheel paint on the valve covers, intake manifold, and the timing covers, and it turned out good. You can do any color, just make sure it's quality high temp paint. This may also be a good time to change the spark plugs (NGK or Nippon Denso only), timing belt, water pump, balance belt, and tensioner.

    Get new intake manifold gaskets and reinstall your intake manifold with new gaskets. Install the LEGEND injectors and the RL fuel rails (optional) on the intake manifold. The intake manifold will have vacuum tubes running off by each injector, cap those off. (I didn't, and those blue tubes that are capped off are the end result. I plan on capping them off at the injector housing when I pull my intake manifold again).

    Install the LEGEND differential on the side of the oil pan, then install the LEGEND starter.

    Once the engine is bolted to the transmission , you can install the LEGEND coil packs and the LEGEND wiring harness. Here's where it gets tricky. There's a few splices that must be made in the LEGEND wiring harness.

    First, on the coolant connector tube that runs between the upper radiator hose and the heads, those two sensors are switched around, you'll need to extend the wires on both of those sensor plugs about 6-8 inches so the wires will reach the opposite side.

    The oil pressure sender plug down by the balance shaft will need to be extended about 4-5 inches. Also, on that plug, since the power steering belt is so close to the timing cover, you have to run the wire out and zip tie it to the lower radiator hose and then plug it in (see pics)

    The intake air temperature sensor that used to be on the front of the intake, is now on the rear of the intake. You'll have to extend that wire out about 10 inches to reach around the back side of the engine.

    Swap the Legend valve cover onto the passenger side of the engine and use the original Legend sensor in the rear of that valve cover.

    Go out and buy a small roll of vacuum tube ($10-12) and run your own lines where needed. Most of the original lines will match up. IF YOU GUT YOUR INTAKE MANIFOLD: You won't use a few of the lines if you gut the intake manfold. These unused lines lead up to the vacuum solenoids behind the passenger headlight and will get capped off at the solenoid.

    The crank/cam position sensor behind the driver side cam gear has a plug that does not match the Legend wiring harness plug. You have to cut and match up all the wires, solder, then heat shrink the wires. The wires are the same color on each side, so matching them up is easy.

    It's time to install the 3.5L engine! You will find that only one of the passenger side bell housing bolts will not bolt up to the 3.5L block. Don't worry, it won't cause a problem, just leave it with no bolt in it. Automatic Transmission: don't forget torque converter bolts - Manual Transmission: Don't forget to reinstall the slave cylinder and clutch fork.

    Almost done. Next, you're going to take the Legend fuel line that runs from the fuel filter to the engine, and you're going to slowly bend it upwards, so it will match the RL's fuel rail (see pics). Bolt it down to the fuel rail with the fuel damper behind it. Make absolutely sure you don't kink this line. If you decide to use the Legend fuel rail, you will use your Legend fuel line

    IF YOU USED THE RL FUEL RAILS: Last thing, on the RL's fuel pressure regulator, the vacuum line running off it is smaller in diameter than the Legend. Buy a vacuum line size reducer and some hose, and use a small hose clamp. Make sure it won't leak.

    Double check all your connections, make sure all your bolts are tight. I use Mobil 1 Synthetic 5w-30. Triple check all your connections, make sure all your fluids are full, and cross your fingers. It may take a couple of cranks to start, since your fuel rails will be empty. If it does not start, check your fuses, relays, connections and PM me.

    This swap is not beyond any person with some mechanical experience. Some simple wiring changes, a custom mount, and everything else pretty much bolts right up. Nobody should be scared of this swap.

    Email me if you have any questions. Datdaz84@gmail.com

    My engine bay
    [​IMG]

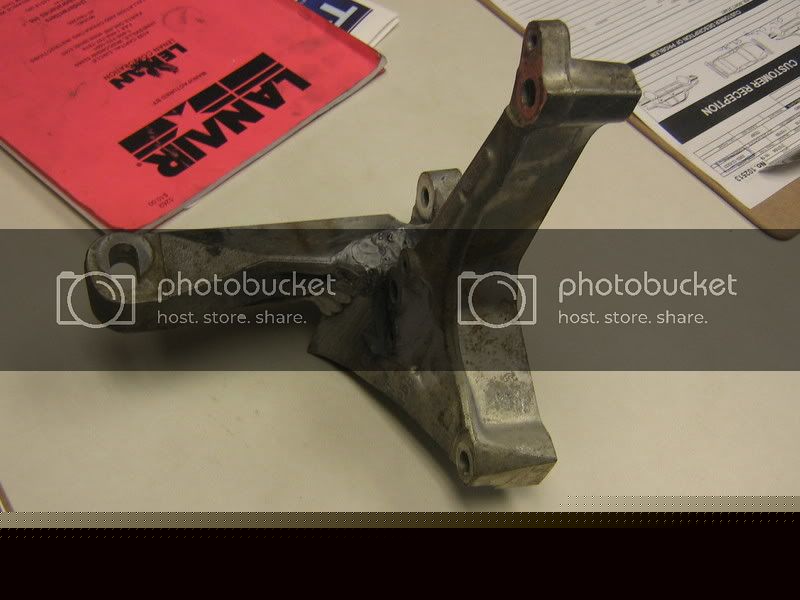

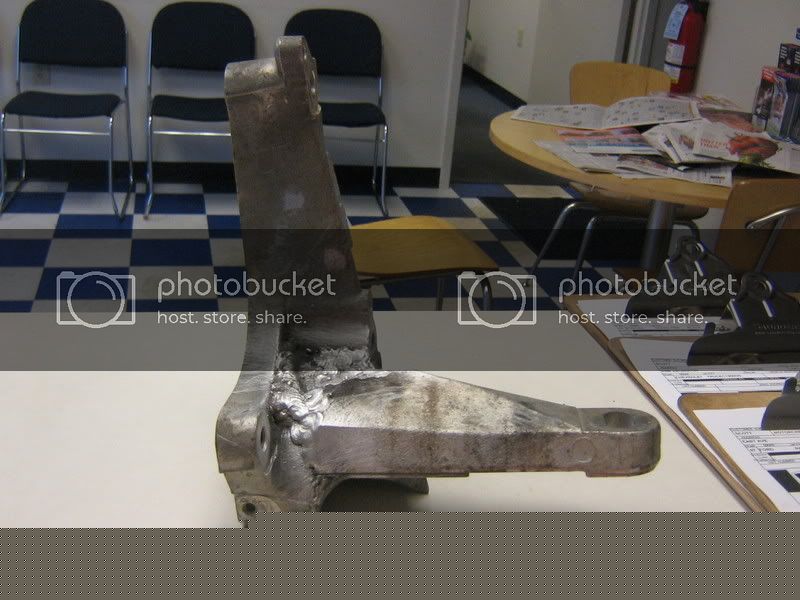

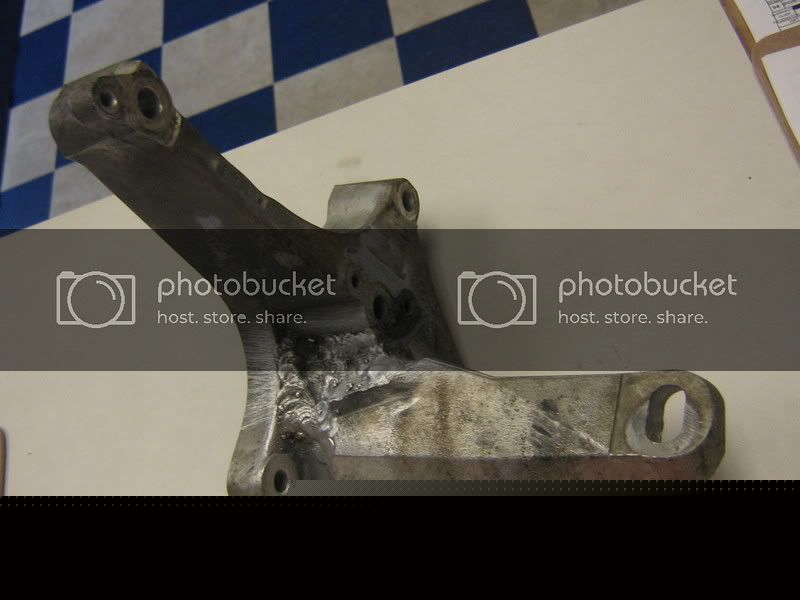

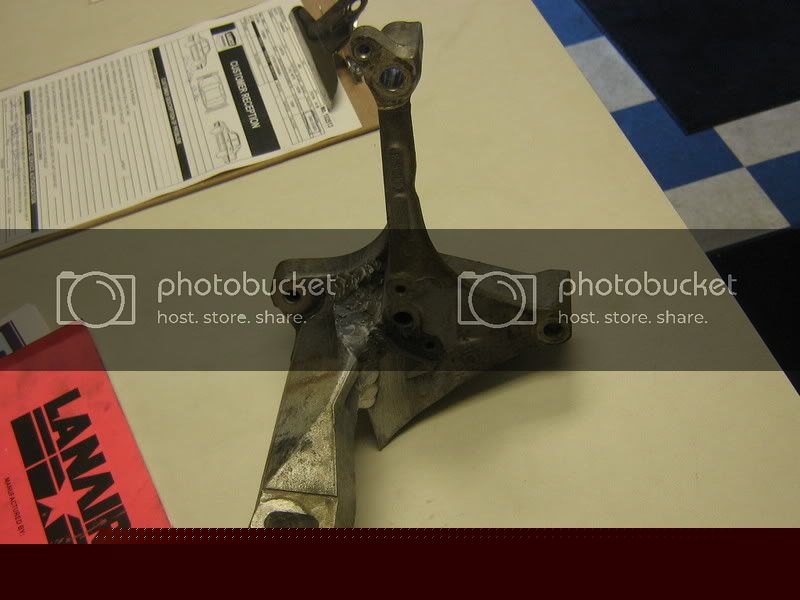

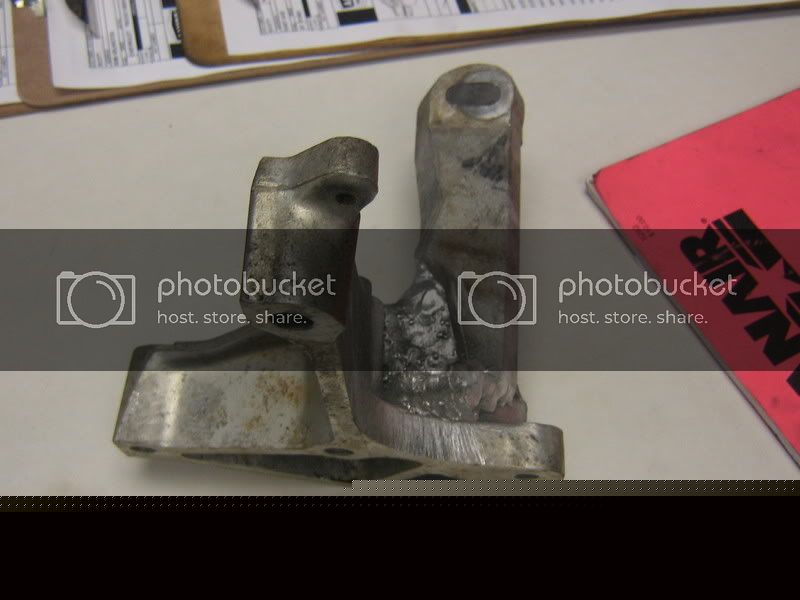

    What the mount should look like when it's done (for 91-93 Legends only):
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]



    Excuse the following pictures, I drove in the rain a couple days ago, and my engine compartment is a mess

    This is the oil pressure sending switch wire that needs to be extended and zip tied to the radiator hose since it can no longer be ran between the timing cover and the belts.
    [​IMG]

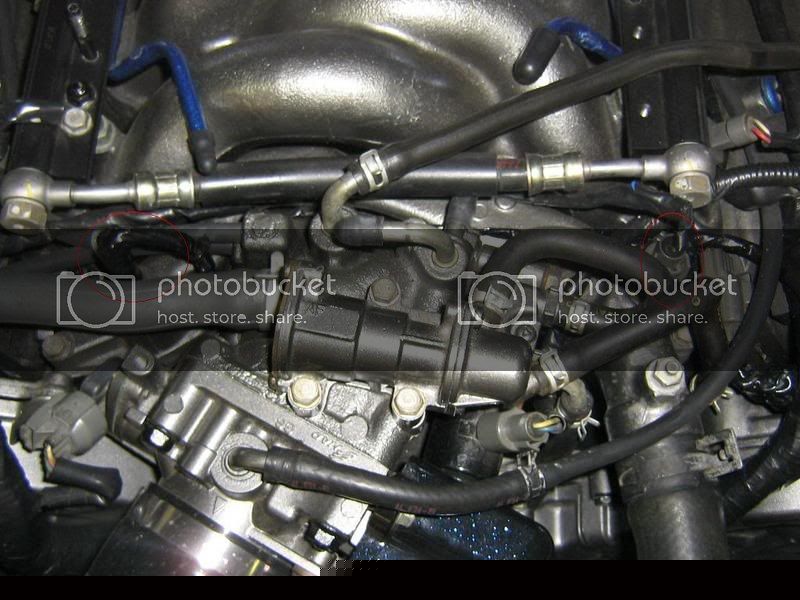

    Some of the vacuum lines (I used the RL valve cover, which needs to be swapped back to the Legend valve cover)
    [​IMG]

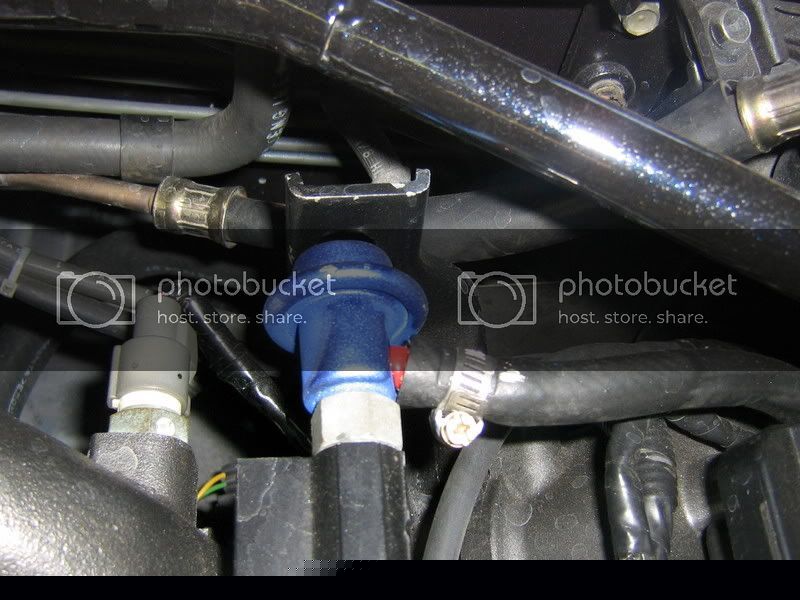

    A little adaptor I made for the undersized fuel pressure regulator tube (in red). This picture also shows the intake temp sensor (Gray) that had to be moved to the back of the engine.
    [​IMG]

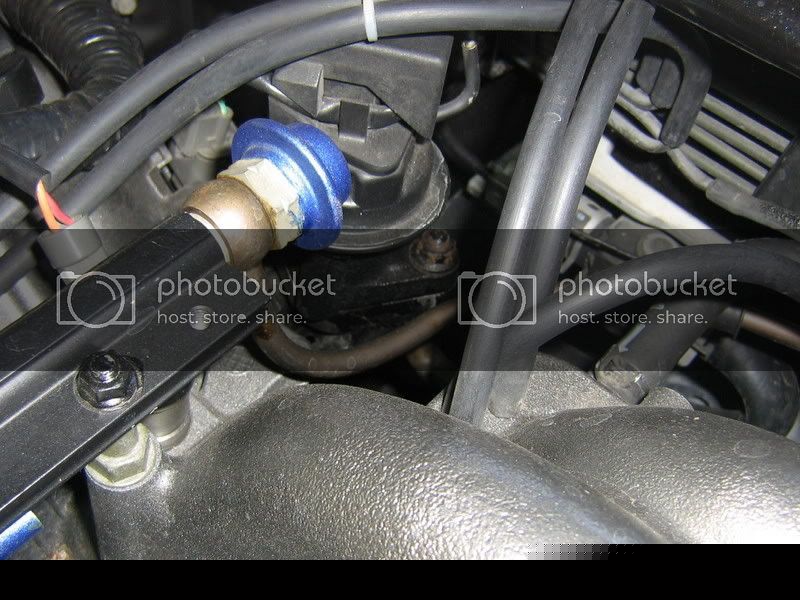

    The fuel line being bent up to fit on the RL fuel rail (OPTIONAL: use your Legend fuel rail and line)
    [​IMG]

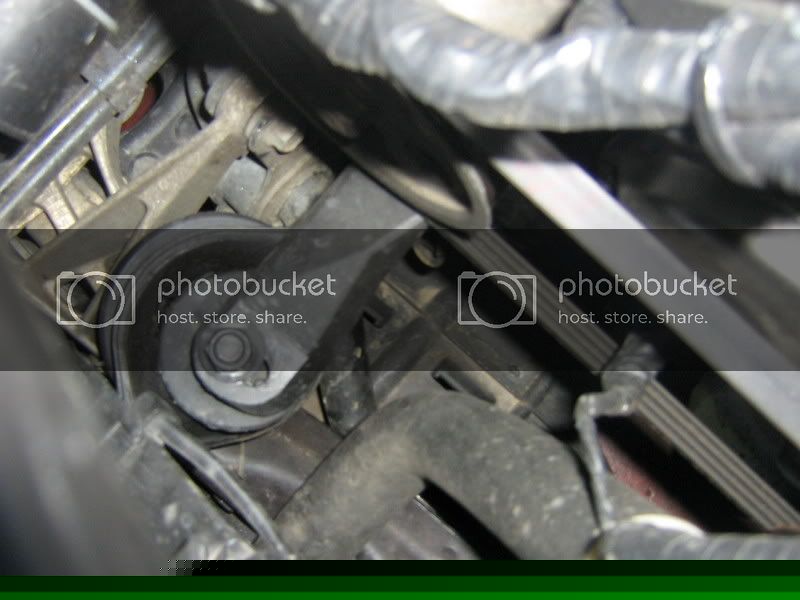

    The hybrid mount, painted and installed
    [​IMG]

    These are the two sensors that are swapped (in the thin red circles). You have to extend the wires about 6-8 inches to make it work
    [​IMG]

    A pic of my car on the Dyno:
    [​IMG]
    [​IMG]

    Scans of my first dyno run. This is untuned (AFC-II set at zeros), with one piece CAI, EGR Blocked, Throttle Body coolant bypass, Gutted and gasket matched intake manifold, gasket matched and lightly ported exhaust side of the heads, ported exhaust manifolds, stock Y pipe, no cat, and 2.5" exhaust from Y pipe back.

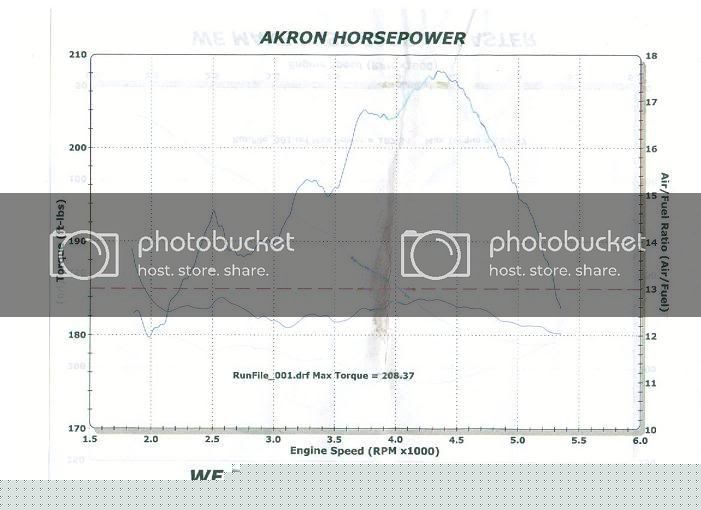

    Torque curve with air fuel ratio
    [​IMG]

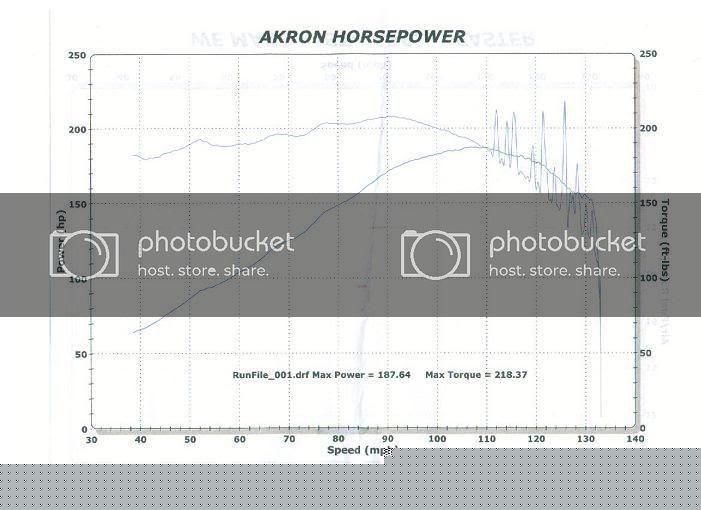

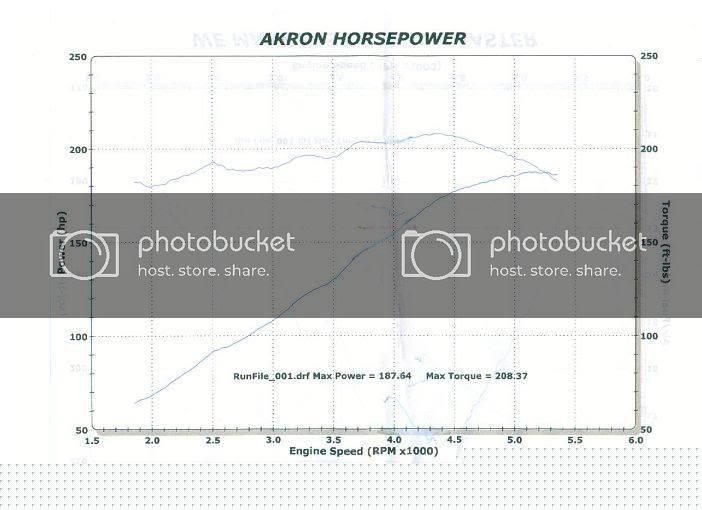

    Max horsepower and torque
    [​IMG]

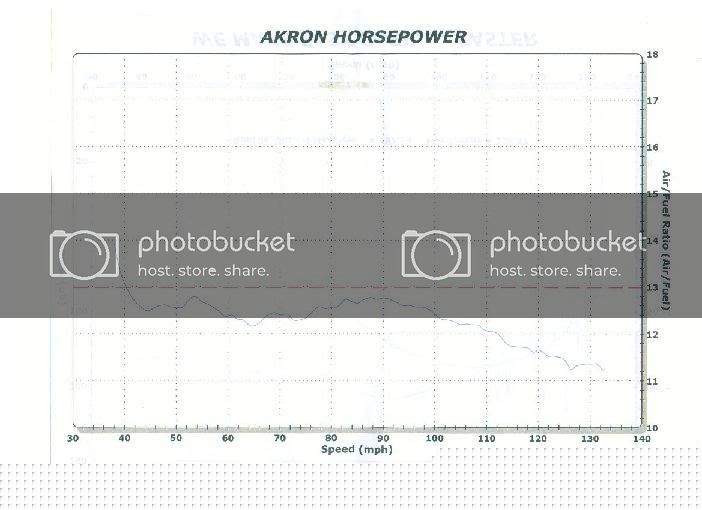

    Air/Fuel Ratio (terrible)
    [​IMG]

    RPM
    [​IMG]


    My dyno thread: Dyno Results for the 3.5L swap - The Acura Legend & Acura RL Community
    Pics on the dyno: 2 pics of my coupe on the dyno - The Acura Legend & Acura RL Community
    3.5L swap general questions: 3.5 swap questions - The Acura Legend & Acura RL Community
    Video of my 3.5L coupe in action: I made a "Legend only" video out of yesterday's vid. - The Acura Legend & Acura RL Community
    Thread about my vacuum problems and install issues: Christian, I need your help big time with this 3.5L swap *UPDATE, SHE RUNS PERFECT!* - The Acura Legend & Acura RL Community
    Problems when I first got it running: She's alive - The Acura Legend & Acura RL Community
    Thread about the mount: For future 3.5L swaps: Here is 5 pictures of what your mount needs to look like - The Acura Legend & Acura RL Community
    Honda Tuning working on a supercharger manifold: Honda Tuning Oct2006:Custom supercharger - The Acura Legend & Acura RL Community
    Christian's superthread about the 3.5L swap. None of this would be done without him. Dv8's Legend (Chronicles and Articles) - The Acura Legend & Acura RL Community
    Member from Thailand with a friend's 3.5L Swap: Hello from Thailand - The Acura Legend & Acura RL Community
    HarlemLegendz 3.5L swap: rl swap done - The Acura Legend & Acura RL Community

    3 people like this.
  2. TurboMirage

    TurboMirage YEEAAAHHH VIP

    Messages:
    24,579
    Likes Received:
    696
    Joined:
    May 20, 2003
    Location:
    Central, MA
    :thumbsup: i LOVE legends.

  3. awptickes

    awptickes unimpressed by you VIP

    Messages:
    9,276
    Likes Received:
    498
    Joined:
    Aug 29, 2007
    Location:
    MD
    That torque curve looks pretty good. And your swap looks really clean.

  4. Briansol

    Briansol Admins Admin VIP

    Messages:
    21,453
    Likes Received:
    2,117
    Joined:
    Nov 18, 2007
    Location:
    CT
    totally neat and original. good job man, and thanks for the write up.

  5. BrutalB83

    BrutalB83 Brutal Moderator Moderator VIP

    Messages:
    11,620
    Likes Received:
    302
    Joined:
    Jun 24, 2006
    Location:
    Rochester Hills, MI
    Nice write-up man, and awesome project! I vote for sticky! :thumbsup:

  6. 99sidude

    99sidude Moderator Moderator VIP

    Messages:
    3,707
    Likes Received:
    170
    Joined:
    May 1, 2006
    Location:
    Ohio
    +1

    I see you're from Akron... Do you regular any of the meets during the summer?

  7. efhondakid

    efhondakid My name is Byron. VIP

    Messages:
    7,034
    Likes Received:
    202
    Joined:
    Mar 2, 2007
    Location:
    Akron-Canton, Ohio
    I live 5 minutes from the Akron Horsepower shop. Kinda cool, hopefully I see that car around town.

  8. Mike Diaz

    Mike Diaz Junior Member

    Messages:
    75
    Likes Received:
    3
    Joined:
    Apr 4, 2006
    I head down to Superfly Sundays in downtown Akron sometimes. Definitely let me know if you know of any local shows.

  9. diamondDIESEL

    diamondDIESEL be gentle

    Messages:
    11
    Likes Received:
    0
    Joined:
    Mar 27, 2008
    Does

    Does that thing rip or what?

  10. diamondDIESEL

    diamondDIESEL be gentle

    Messages:
    11
    Likes Received:
    0
    Joined:
    Mar 27, 2008
    ps, that shit is fucking clean! props

  11. Mike Diaz

    Mike Diaz Junior Member

    Messages:
    75
    Likes Received:
    3
    Joined:
    Apr 4, 2006

    We're in the process of filming the high speed runs now. Did you check out the video?

  12. 90DATeggy

    90DATeggy The Pussi Snatcher

    Messages:
    169
    Likes Received:
    2
    Joined:
    Apr 12, 2008
    Location:
    FL
    Very Clean Nice Swap

  13. Mike Diaz

    Mike Diaz Junior Member

    Messages:
    75
    Likes Received:
    3
    Joined:
    Apr 4, 2006
    :cool: Thanks!

  14. ACKLEGENDNUT

    ACKLEGENDNUT New Member

    Messages:
    3
    Likes Received:
    0
    Joined:
    Nov 2, 2009
    If i have a 95 legend coupe will i need to modify the mount on the 3.5 rl motor? Also how did you gut the manifold? Was there any extra plugs from the type 2 air intake system? If so will that effect a chack engine light? Can u use the complete rails and injectors from the 3.2??- thanks for the great info- i greatly appriciate it!!

  15. riceracerex

    riceracerex D-Series Ninja

    Messages:
    645
    Likes Received:
    12
    Joined:
    Jan 28, 2009
    Location:
    Pryor, Ok
  16. RoughKnight

    RoughKnight Christmas Car

    Messages:
    846
    Likes Received:
    25
    Joined:
    Aug 4, 2009
    Location:
    Ottawa, Ont
  17. Mike Diaz

    Mike Diaz Junior Member

    Messages:
    75
    Likes Received:
    3
    Joined:
    Apr 4, 2006
    Yes, the mount on the passenger front side of the engine is totally different on the 3.5L engine because of the addition of the balance shaft. It still has to be welded.

    You can either reuse the TCS or eliminate it by removing the intake tubing and just leaving them unplugged. You will have a TCS light on the dash if you do this. You can use the Fuel rails from the 3.2L but if you do that, you should use the 3.2L intake manifold because the fuel rails bolt to the manifold

  18. bornlegend2

    bornlegend2 New Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Jan 5, 2010
    legend lover

    i might be doing this wrong and someone help me please. i need to ask a question to the guy that put the rl motor in his legend. i appoligize for incovience. bornlegend2@yahoo.com

  19. bornlegend2

    bornlegend2 New Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Jan 5, 2010
    the legend lover

    Okay i got it now, mr, diaz, i need to know, i have the 2000 rl motor, trans, computer, everything, i need to know what should i put in my legend to get the best performance and how to put the motor in my legend just for basic driving. But i want the torque and power.

  20. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    did you miss his first post in here? tells you how to install it..
