Drive shaft installation trick

Discussion in 'General Tech and Maintenance' started by autox19, Aug 8, 2015.

  1. autox19

    autox19 Member

    Messages:
    56
    Likes Received:
    1
    Joined:
    Feb 25, 2010
    Location:
    Lansnig, Michigan
    Trying to get the driveshaft into the midshaft. I get the splines lines up and it goes in but doesnt look like all the way.
    20150808_143955.jpg 20150808_143943.jpg
    Help!

    Odie
    b16 fiat x19

  2. CAFROG

    CAFROG Honda Minion VIP

    Messages:
    4,417
    Likes Received:
    154
    Joined:
    Apr 5, 2009
    Location:
    NOR-CAL
    If the spline count is good, try a pry bar to leverage it in. Be careful of the rubber boot.

  3. autox19

    autox19 Member

    Messages:
    56
    Likes Received:
    1
    Joined:
    Feb 25, 2010
    Location:
    Lansnig, Michigan
    Thanks! I think I need to get a hold of the place that built the shafts (driveline shop. Usually very good). I dont see how it can go any further into the mid shaft as the splines are almost to the edge. Here are pics of the shafts. The work order said full spline for midshaft.... not seeing full spline 20150808_192549.jpg

  4. Briansol

    Briansol Admins Admin VIP

    Messages:
    21,456
    Likes Received:
    2,117
    Joined:
    Nov 18, 2007
    Location:
    CT
    I had a similar issue with my swap... it took a lot of jiggling for it to finally get to seat all the way in. Chris rock it in.


  5. autox19

    autox19 Member

    Messages:
    56
    Likes Received:
    1
    Joined:
    Feb 25, 2010
    Location:
    Lansnig, Michigan
    Ok, getting closer. found from other pics online, that axle doesnt go tight against the intermediate shaft. but now I am stuck on the passenger side. same issue of it not going all the way in. I even tried taking the ring off just to see if it would go all the way in without it, and it goes in the same distance. I need some help here. I need someone with a Y1 cable trans, that happens to have the passenger shaft out do some measurements for me. 4 to be exact. I want to see if the driveshaft shop has the right end on it. I have marked the 4 places I need measurements on

    [​IMG]

    [​IMG]

    thanks! you guys have been very helpful!

    Odie
    B16 Fiat X19

    Last edited: Sep 8, 2015
  6. jlicrx

    jlicrx Senior Member

    Messages:
    1,891
    Likes Received:
    65
    Joined:
    Jun 5, 2003
    Location:
    Colorado Springs

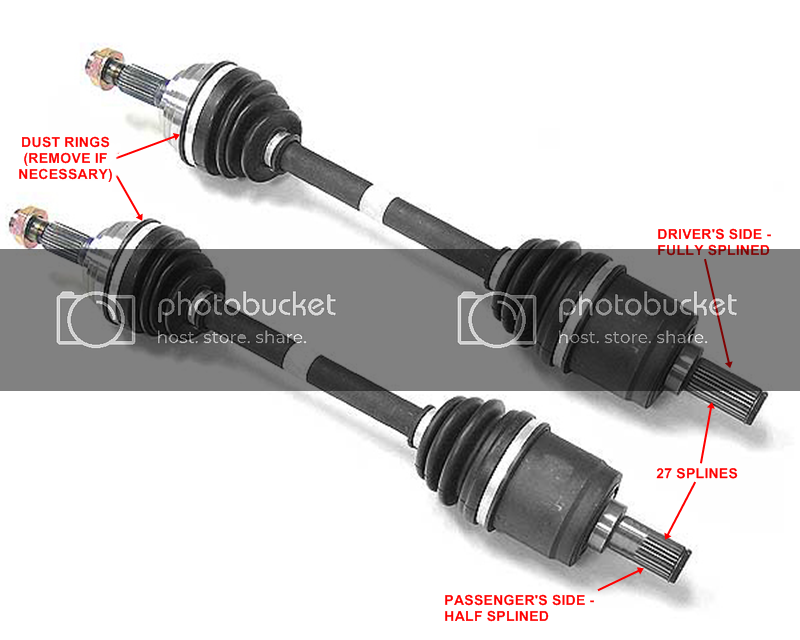

    the axles should look like this:
    [​IMG]

  7. CAFROG

    CAFROG Honda Minion VIP

    Messages:
    4,417
    Likes Received:
    154
    Joined:
    Apr 5, 2009
    Location:
    NOR-CAL
    Measurement #2 is where it seats against the trans or midshaft.

  8. jlicrx

    jlicrx Senior Member

    Messages:
    1,891
    Likes Received:
    65
    Joined:
    Jun 5, 2003
    Location:
    Colorado Springs
    are those supposed to be 90-93 Integra axles? - they don't look like any I have ever seen - the ones I have seen look like the picture I posted - IIRC the dimension from the end to the part that fits in the seal is 2 1/8" - should look like picture below when in the intermediate shaft


    Attached Files:

    Last edited: Sep 8, 2015
  9. autox19

    autox19 Member

    Messages:
    56
    Likes Received:
    1
    Joined:
    Feb 25, 2010
    Location:
    Lansnig, Michigan
    Perfect carfrog, so Measurement 1 does not go against the tranny. the shafts were built by the driveshaft shop. y1 tranny to fiat x19 outer.

    Odie

  10. autox19

    autox19 Member

    Messages:
    56
    Likes Received:
    1
    Joined:
    Feb 25, 2010
    Location:
    Lansnig, Michigan
    awesome. that helped ALOT!

  11. autox19

    autox19 Member

    Messages:
    56
    Likes Received:
    1
    Joined:
    Feb 25, 2010
    Location:
    Lansnig, Michigan
    We have a winner! finally got the RIGHT sized. now I think I need to adjust the drive train height. suspension unloaded seems to be binding up a little, hub becomes harder to rotate. the Axle is darn near level when loaded.
    [​IMG]

    thanks Everyone here for their help!

    Odie
    B16 Fiat X19

  12. CAFROG

    CAFROG Honda Minion VIP

    Messages:
    4,417
    Likes Received:
    154
    Joined:
    Apr 5, 2009
    Location:
    NOR-CAL
    Level (or near level) with suspension load is good. My Kswap has axles slightly pointing up to the hubs because I'm too low.
