    One stop shop for all the wiring info/diagrams. Pics from Google/Pheerable.

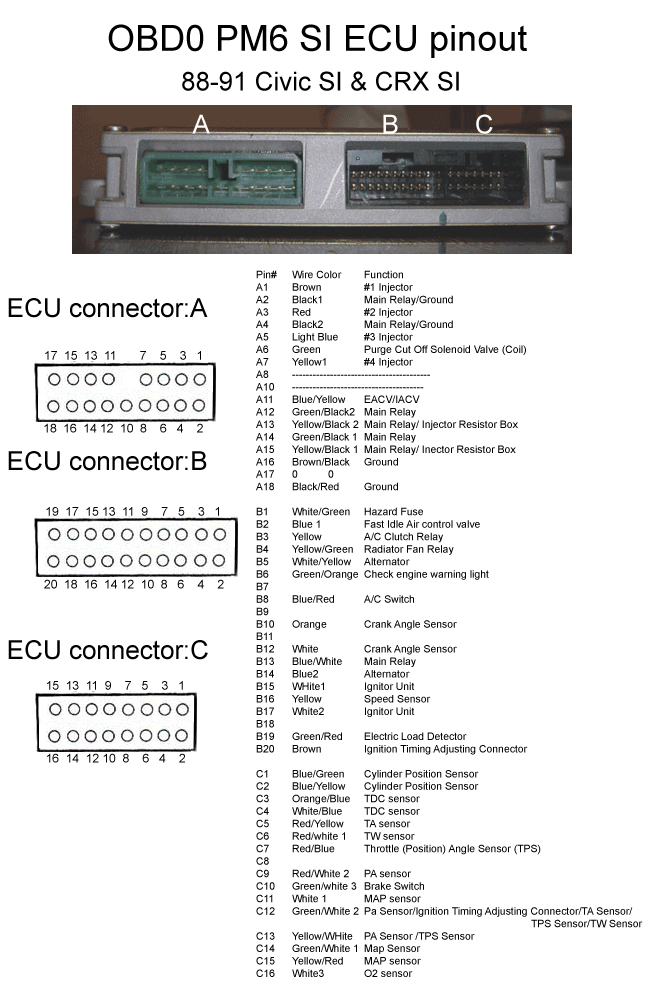

    OBD0 Pinout.
    [​IMG]

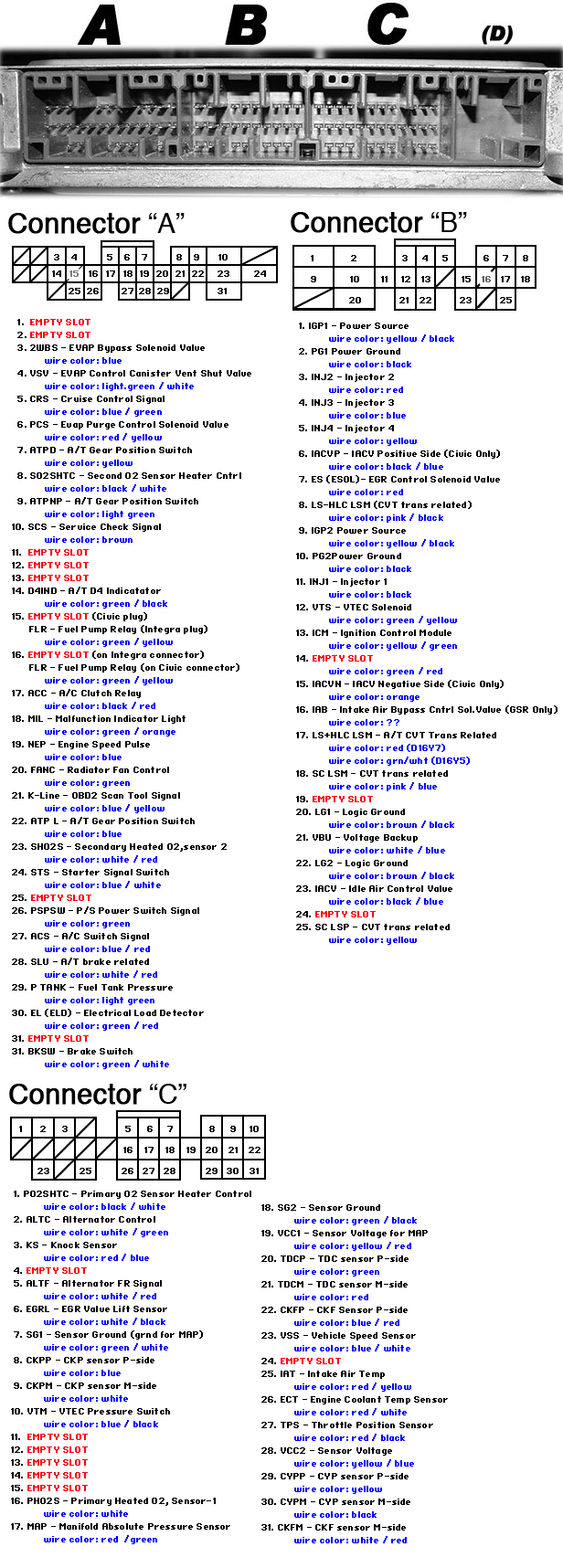

    OBD1 Pinout
    [​IMG]

    OBD2a Pinout
    [​IMG]

    OBD2b Pinout
    [​IMG]

    Here are the pinouts, so you know which spot goes where, which wire to splice from the bay to your ecu, and i'm gonna copy/create a generic hybrid wiring guide to lessen the blow of these re-asked questions. All pics from Pheerable.net. +rep if it helps.

    Last edited: Oct 6, 2009
