God damnnit... Someone help me!!!

Discussion in 'Forced Induction' started by B16RacerN2NR, Mar 21, 2008.

  1. B16RacerN2NR

    B16RacerN2NR Working Hard VIP

    Messages:
    6,148
    Likes Received:
    99
    Joined:
    Feb 28, 2003
    Location:
    Moving back West...
    I'm working on a 97 civic. Car came to me with a half way completed swap and wiring. The swap is a B20/Vtec BTW. Anyway, On top of me finishing the swap and wiring, this kid wants to go turbo as well. So before he bring me the car, he orders an egay turbo kit. Besides the fact that they parts look and feel cheap, they seem to be ok... Now, i'm having a problem with the piping. Either they sent him a piping kit for an Integra (which I didn't think mattered, I would have thought piping kit for both a civic and integra wre the same :shrug:) or i'm just an idiot. He told me he ordered the turbo kit off ebay for a 97 civic with a B-Series motor... Can someone help me with the damn piping?!!!?

    Here is the piping kit and intercooler...

    [​IMG]
    [​IMG]

    Keep in mind the way I have the turbo. This is the only way feasible I could clock the turbo without any clearence issues... Unless you have another idea...

    [​IMG]
    [​IMG]

    This car pisses me off!!!!! I've never had such a frustrating time with a car before. I'm getting rusty :( lol

  2. amadeuscr

    amadeuscr Member

    Messages:
    172
    Likes Received:
    2
    Joined:
    May 13, 2007
    Look , I tried my self to hook up that on my car and I spent the whole day and realize that was not possible so I realize too that I need it to make it fit, that's what I did:

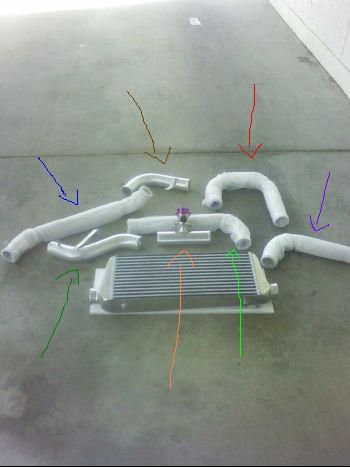

    I didn't get my U pipe ( red arrow) , but the rest was pretty much the same, I don't think it was made for the civic , or I don't know , but here it goes !

    you will need to cut either green or purple pipe a little bit so it doesn't go out too much. and the intercooller stays in the center

    Blue pipe is the one that goes to the intake manifold , I had to cut a little bit on the side of the intake manifold cause in the other side of the pipe it was tight agains the side of the hole , so it was vibrating. you can cut the blue pipe in the middle so you can install the bov pipe there (orange) (if you want),

    darkbrown goes after the blue pipe under the bumper, I had to cut that one too a little bit so it can fit with either light green or purple

    after this one install the intercooler , I can recommend to find out a way to install that U pipe (red ) with the shorter side on the inside and after that one either the green or the purple. ,

    I posted some pics , yellow is where I cut ! of course is not the same car , you have to use your common sense to find out the best way !

    good luck!
