asianboi89
New Member
i'm planning to cut off my obdo civic's ecu plugs and convert to obd1 plugs that i have but i need help with the color codes, can anyone help me with the color codes?
help me with obdo to obd1 ecu conversion
- Thread starter asianboi89
- Start date
- Replies 11
- Views 33K
We may earn a small commission from affiliate links and paid advertisements. Terms
custompainter
drive it like U stole it

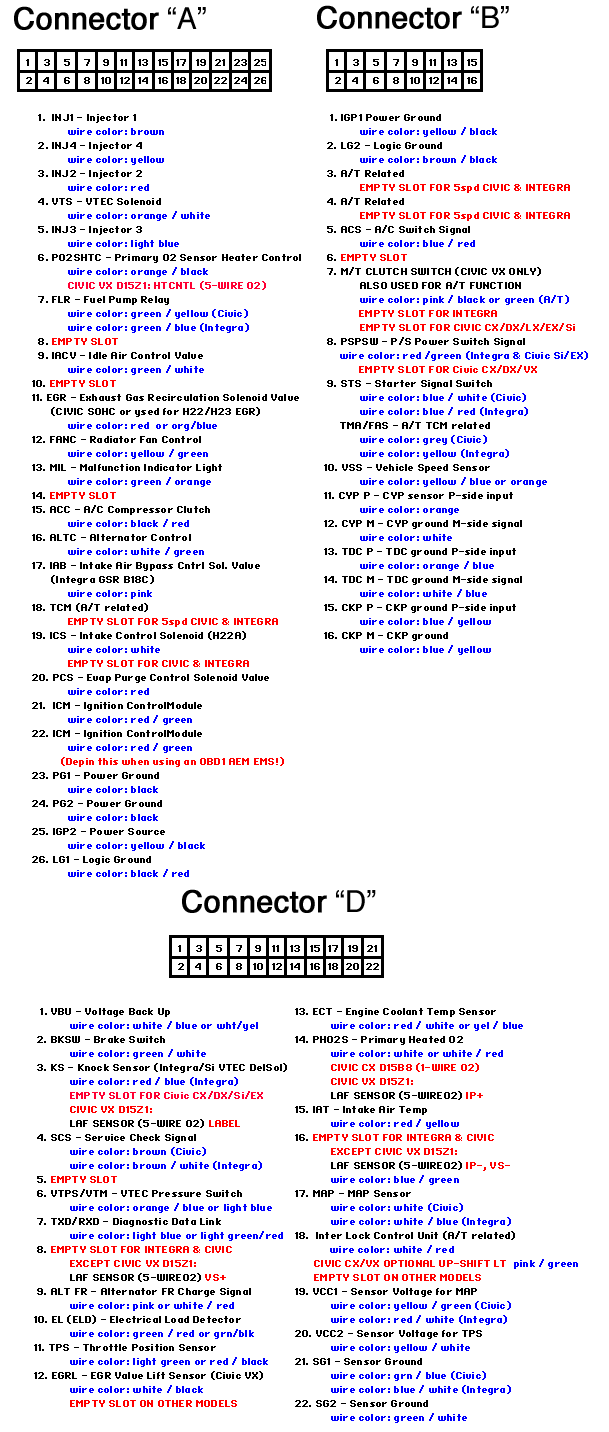

i dont have much on obd0 but i have the obd1 schematic hope this helps
custompainter
drive it like U stole it
This article exploits a combination of ECU pin locations and wire colors for all M/T '92-95 Civic / '92-95 Integra / '92-95 Prelude VTEC and NON-VTEC vehicles.
OBD1 PLUG CONFIGURATION
Below is an example that shows the common onboard male connectors for a Honda OBD1 ECU.
Take note of plugs: A, B, and D.
The 4-plug OBD1 connector image below is proof these do exist and are usually found on JDM AUTO 92-95 Civic, Integra, and Preludes.
Sorry - I do not have pin schematics for the JDM 4-plug OBD1 ecu! Although, connectors A B D should technically be the same pin locations as a 5spd 3-plug OBD1 ECU.
ADDITIONAL INFORMATION
These pin-out locations were cross-referenced with OBD1 Civic/Integra/Prelude Helm's service manuals.
The information in this article applies to:
OBD1 PLUG CONFIGURATION
Below is an example that shows the common onboard male connectors for a Honda OBD1 ECU.
Take note of plugs: A, B, and D.
The 4-plug OBD1 connector image below is proof these do exist and are usually found on JDM AUTO 92-95 Civic, Integra, and Preludes.
Sorry - I do not have pin schematics for the JDM 4-plug OBD1 ecu! Although, connectors A B D should technically be the same pin locations as a 5spd 3-plug OBD1 ECU.
ADDITIONAL INFORMATION
These pin-out locations were cross-referenced with OBD1 Civic/Integra/Prelude Helm's service manuals.
The information in this article applies to:
- All US & JDM OBD1 (92-95) M/T civic ecu's
- All US & JDM OBD1 (92-95) M/T integra ecu's
- All US & JDM OBD1 (92-95) M/T prelude ecu's
custompainter
drive it like U stole it
this link is for a obd0 schematic i has a lot of what you need check it out
http://media.honda.co.uk/car/owner/media/manuals/CRXManual/62SH200/6-12.pdf
http://media.honda.co.uk/car/owner/media/manuals/CRXManual/62SH200/6-12.pdf
asianboi89
New Member
i also found out about this but hope it also work:
KEY
--> XXXXXXXXXXXX Not Used
--> ?????????????? What Goes here?
OBD-0 --> OBD-1 HARNESS CONNECTIONS: PROOF-READ BY TURBOGIXXER
A01 - INJ #1 --> A01 - INJ #1
A02 - PG1 --> A23 - PG1
A03 - INJ #2 --> A03 - INJ #2
A04 - PG2 --> A24 - PG2
A05 - INJ #3 --> A05 - INJ #3
A06 - PCS --> A20 - PCS
A07 - INJ #4 --> A02 - INJ #4
A08 - LOCKSOL --> XXXXXXXXXXX
A09 - NOTUSED--> XXXXXXXXXXXX
A10 - EGR CSV--> A11
A11 - IACV --> A09 - IACV
A12 - FLR1 --> A07 - FLR1
A13 - IGP1 --> A25 - IGP1
A14 - FLR2 --> A08 - FLR2
A15 - IGP2 --> B01 - IGP2
A16 - GRD --> A26 - LG1
A17 - NOTUSED--> XXXXXXXXXXXX
A18 - GRD --> B02 - LG2
B01 - VBP --> D01 - VBU
B02 - NOTUSED--> XXXXXXXXXXXX
B03 - ACC --> A15 - ACC
B04 - FANC --> A12 - FANC
B05 - ALT --> A16 - ALT
B06 - MIL --> A13 - MIL
B07 - NOTUSED--> XXXXXXXXXXXX
B08 - ACS --> B05 - ACS
B09 - NOTUSED--> XXXXXXXXXXXX
B10 - CYP P --> B11 - CYP P
B11 - FUSEBOX--> xxxxxxxxxxxx
B12 - CYP M --> B12 - CYP M
B13 - FUSEBOX--> B09 - STARTER
B14 - ALT --> D09 - ALT
B15 - Igniti --> A21 - ICM
B16 - VSS --> B10 - VSS
B17 - Igniti --> A22 - ICM
B18 - NOTUSED--> XXXXXXXXXXXX
B19 - ELD --> D10 - ELD
B20 - SCS --> D04 - SCS
C01 - CKP P --> B15 - CKP P
C02 - CKP M --> B16 - CKP M
C03 - TDC P --> B13 - TDC P
C04 - TDC M --> B14 - TDC M
C05 - IAT --> D15 - IAT
C06 - ECT --> D13 - ECT
C07 - TPS --> D11 - TPS
C08 - EGR VLS--> D12
C09 - PA --> NOTUSEDXXXXX
C10 - BKSW --> D02 - BKSW
C11 - MILGRND--> D17 - MAP
C12 - SG2 --> D22 - SG2
C13 - VCC1 --> D19 - VCC1
C14 - SG1 --> D21 - SG1
C15 - VCC2 --> D20 - VCC2
C16 - O2S --> D14 - PHO2S
KEY
--> XXXXXXXXXXXX Not Used
--> ?????????????? What Goes here?
OBD-0 --> OBD-1 HARNESS CONNECTIONS: PROOF-READ BY TURBOGIXXER
A01 - INJ #1 --> A01 - INJ #1
A02 - PG1 --> A23 - PG1
A03 - INJ #2 --> A03 - INJ #2
A04 - PG2 --> A24 - PG2
A05 - INJ #3 --> A05 - INJ #3
A06 - PCS --> A20 - PCS
A07 - INJ #4 --> A02 - INJ #4
A08 - LOCKSOL --> XXXXXXXXXXX
A09 - NOTUSED--> XXXXXXXXXXXX
A10 - EGR CSV--> A11
A11 - IACV --> A09 - IACV
A12 - FLR1 --> A07 - FLR1
A13 - IGP1 --> A25 - IGP1
A14 - FLR2 --> A08 - FLR2
A15 - IGP2 --> B01 - IGP2
A16 - GRD --> A26 - LG1
A17 - NOTUSED--> XXXXXXXXXXXX
A18 - GRD --> B02 - LG2
B01 - VBP --> D01 - VBU
B02 - NOTUSED--> XXXXXXXXXXXX
B03 - ACC --> A15 - ACC
B04 - FANC --> A12 - FANC
B05 - ALT --> A16 - ALT
B06 - MIL --> A13 - MIL
B07 - NOTUSED--> XXXXXXXXXXXX
B08 - ACS --> B05 - ACS
B09 - NOTUSED--> XXXXXXXXXXXX
B10 - CYP P --> B11 - CYP P
B11 - FUSEBOX--> xxxxxxxxxxxx
B12 - CYP M --> B12 - CYP M
B13 - FUSEBOX--> B09 - STARTER
B14 - ALT --> D09 - ALT
B15 - Igniti --> A21 - ICM
B16 - VSS --> B10 - VSS
B17 - Igniti --> A22 - ICM
B18 - NOTUSED--> XXXXXXXXXXXX
B19 - ELD --> D10 - ELD
B20 - SCS --> D04 - SCS
C01 - CKP P --> B15 - CKP P
C02 - CKP M --> B16 - CKP M
C03 - TDC P --> B13 - TDC P
C04 - TDC M --> B14 - TDC M
C05 - IAT --> D15 - IAT
C06 - ECT --> D13 - ECT
C07 - TPS --> D11 - TPS
C08 - EGR VLS--> D12
C09 - PA --> NOTUSEDXXXXX
C10 - BKSW --> D02 - BKSW
C11 - MILGRND--> D17 - MAP
C12 - SG2 --> D22 - SG2
C13 - VCC1 --> D19 - VCC1
C14 - SG1 --> D21 - SG1
C15 - VCC2 --> D20 - VCC2
C16 - O2S --> D14 - PHO2S
custompainter
drive it like U stole it
where did you find that ?? is it a good sorce ??
asianboi89
New Member
i founded on a site while doing some research, forgot the site but i also going to try this...hope its a good score.
The 4-plug OBD1 connector image below is proof these do exist and are usually found on JDM AUTO 92-95 Civic, Integra, and Preludes.
Sorry - I do not have pin schematics for the JDM 4-plug OBD1 ecu! Although, connectors A B D should technically be the same pin locations as a 5spd 3-plug OBD1 ECU.
-----------------------
C- for automatically transmission
I need
Sorry - I do not have pin schematics for the JDM 4-plug OBD1 ecu! Although, connectors A B D should technically be the same pin locations as a 5spd 3-plug OBD1 ECU.
-----------------------
C- for automatically transmission
I need
JDMVtecIntegra
New Member
Did anyone try what asianboi89 posted and get working results? My car won't start, lol. I think it might have to do with the main relays being on the wrong wires. A12 and A14 are the same color wires. A13 and A15 are the same color wires, maybe one of those I have backwards? B15 and B17 are also the same color wires, those could be backwards as well. I'm not sure whether it matters though, anyone have any ideas?
LightWeightChamp
Honda FTW!
Xenocron Tuning: ECU Conversion Harness - OBD0 to OBD1 #[OBD0-1harnes]
highly recomended. forget the headaches. just dish out the cash, if you mess up on your conversion, it'll be so hard to figure out what plug you messed up on, and it will be hard to switch back to stock. xenocron ftw.
highly recomended. forget the headaches. just dish out the cash, if you mess up on your conversion, it'll be so hard to figure out what plug you messed up on, and it will be hard to switch back to stock. xenocron ftw.
JDMVtecIntegra
New Member
Well here's the problem with that, I've already cut the OBD0 connectors off, haha. And I don't want to give up when there's only 6 wires that could be wrong, another thing I realized is that I need an OBD1 distributor and OBD1 O2 sensor to do this conversion. So I think I'll get a hold of those and get those all wired up to see if that was the problem.
