How To: Make your gauge cluster brighter and clearer.

Discussion in 'Civic and CRX - EF' started by Andrew, Sep 7, 2006.

  1. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    Hey everyone, as you can see from my sig, I've recently been uploading some of my personal write-ups on different things regarding mostly EF's.
    Heres my How To on making those gauge cluster lights really shine. Unfortunatly enough, and I'm really sorry, my motor is out of town getting built, so I don't have any before and after pics. But please be assured, it looks MUCH brighter and clearer.

    Lets get to it.
    You'll need:
    -Small screwdriver. the screws are phillips head, but if it's small enough you can use a Flat head.
    (Thats it!)

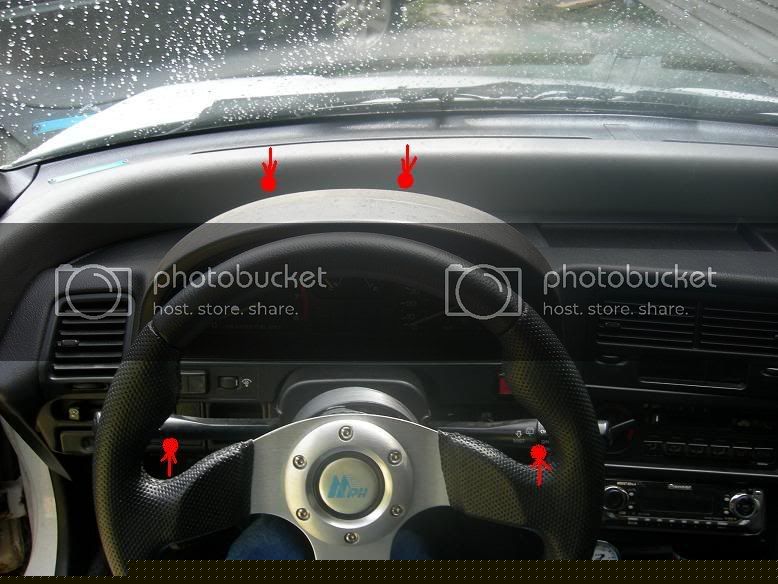

    1. Start by locating the 4 screws that hold the gauge cluster cover on.
    [​IMG]

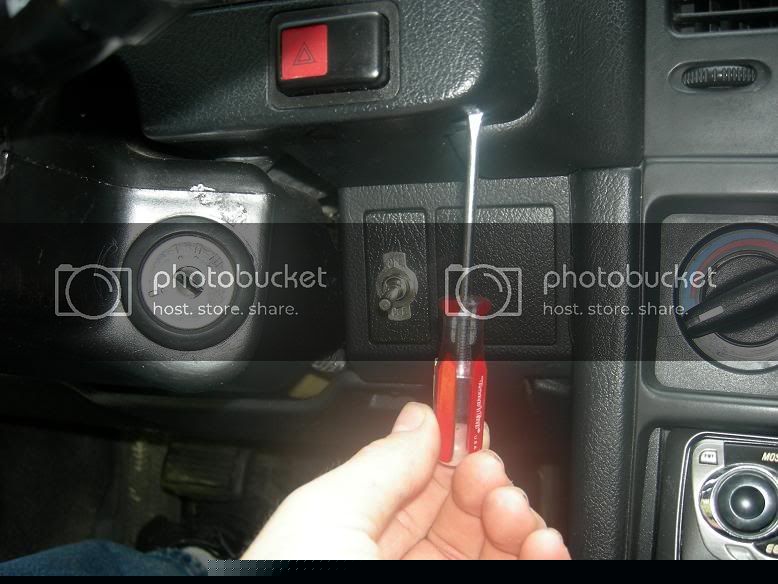

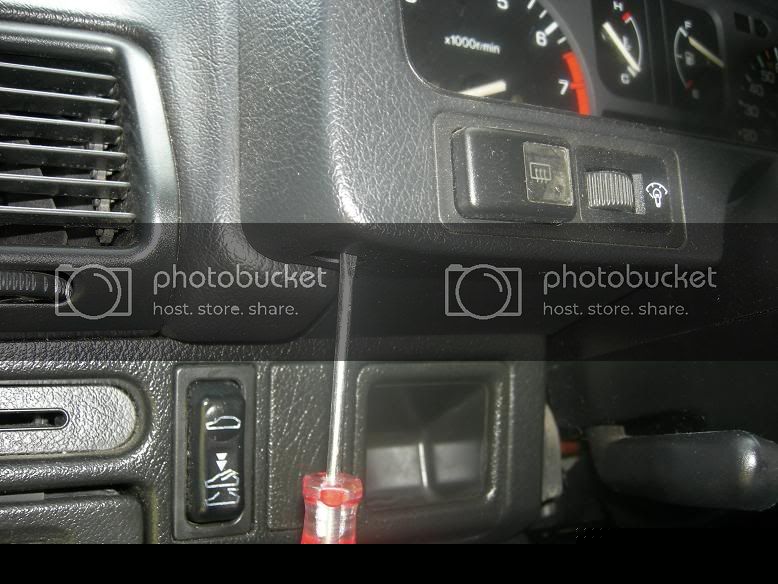

    2. Remove them-

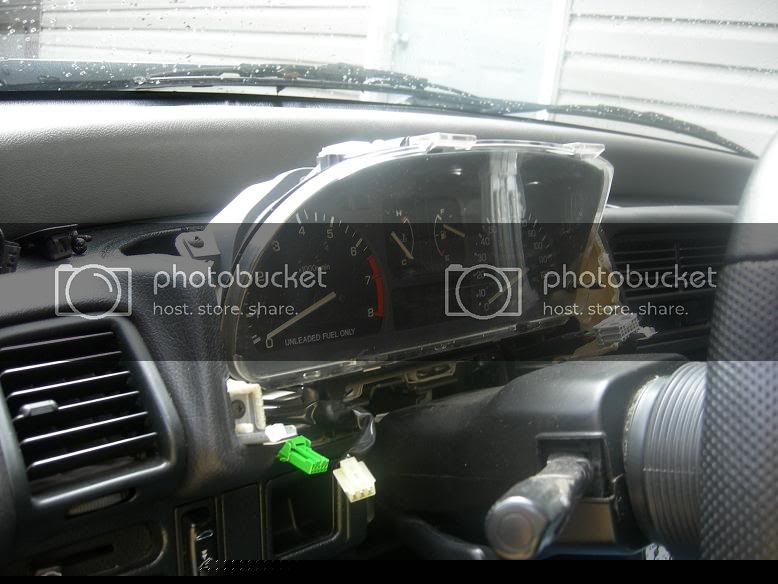

    [​IMG]
    [​IMG]

    As for these two, just pop the little covers off and unscrew them.
    [​IMG]

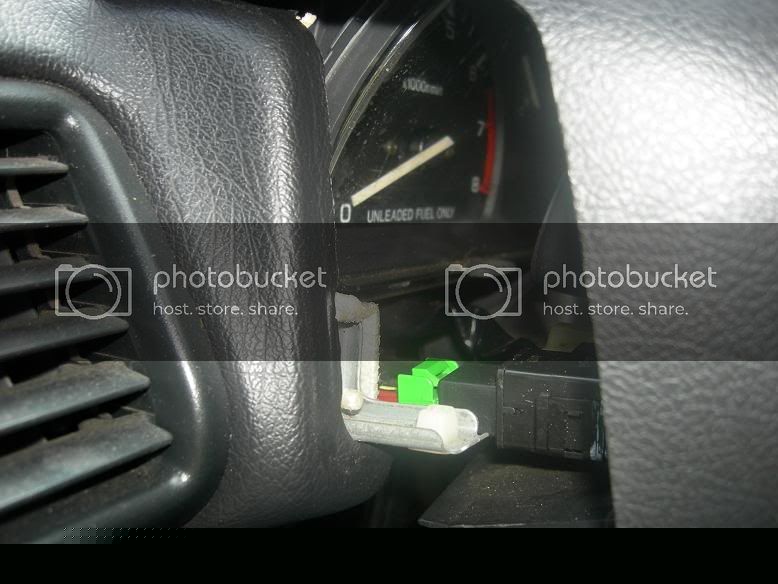

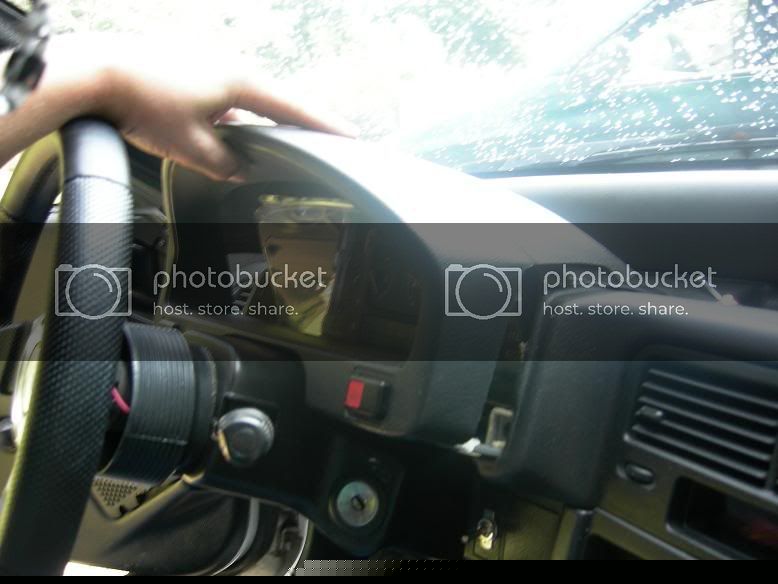

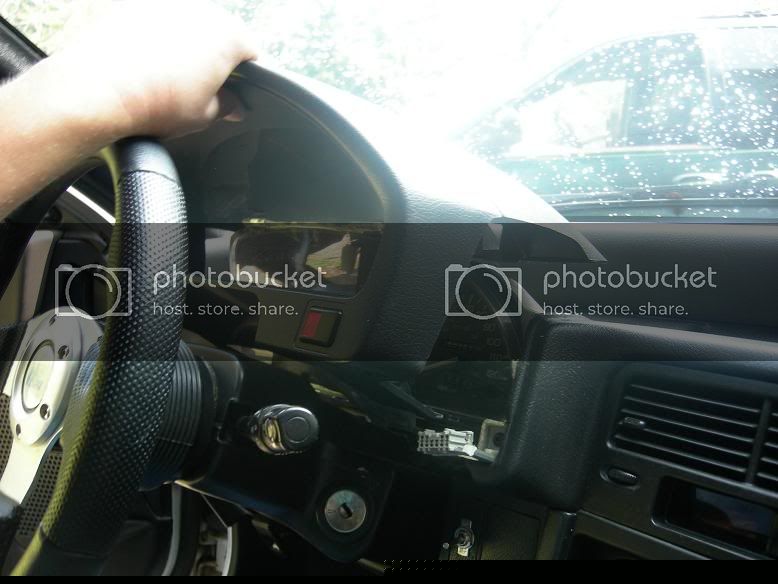

    3. As you start to pull the gauge cluster cover off, you'll feel some tension. Don't yank on it. Just look back behind it and you'll notice that your Hazard switch, Light dimmer, and rear defroster switches(if it's an SI) are holding it. Just unplug them and it will come right out.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

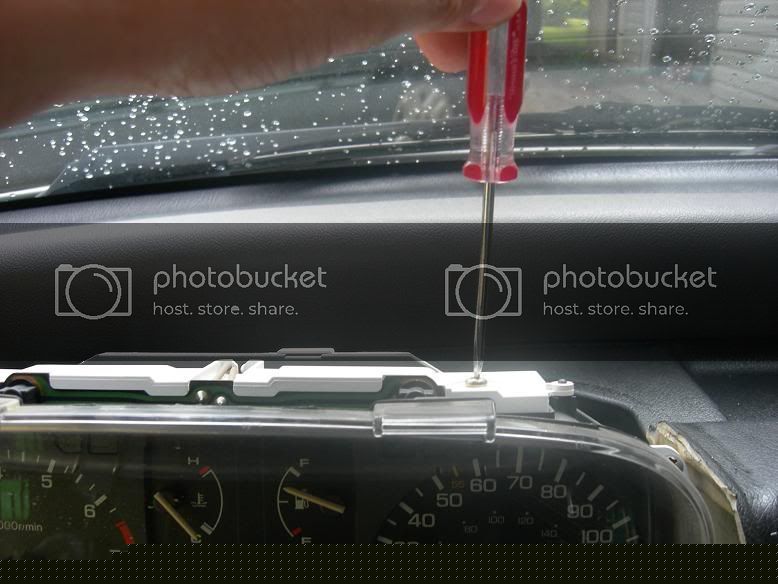

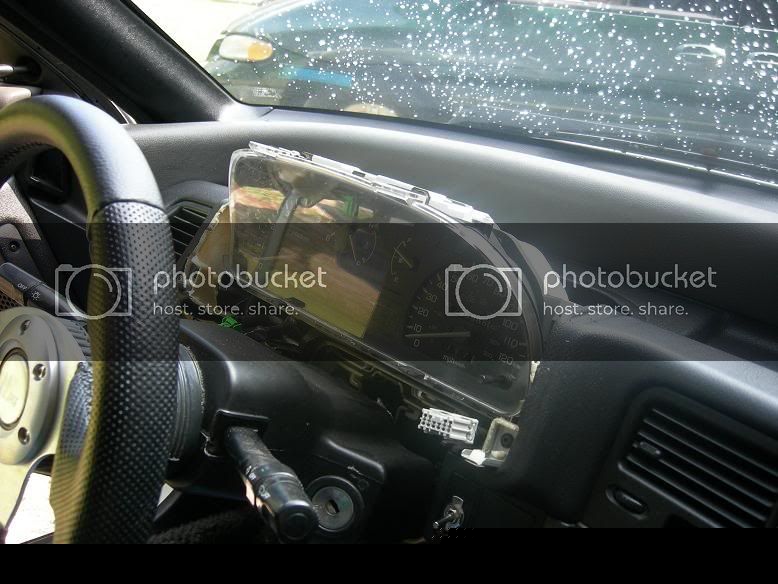

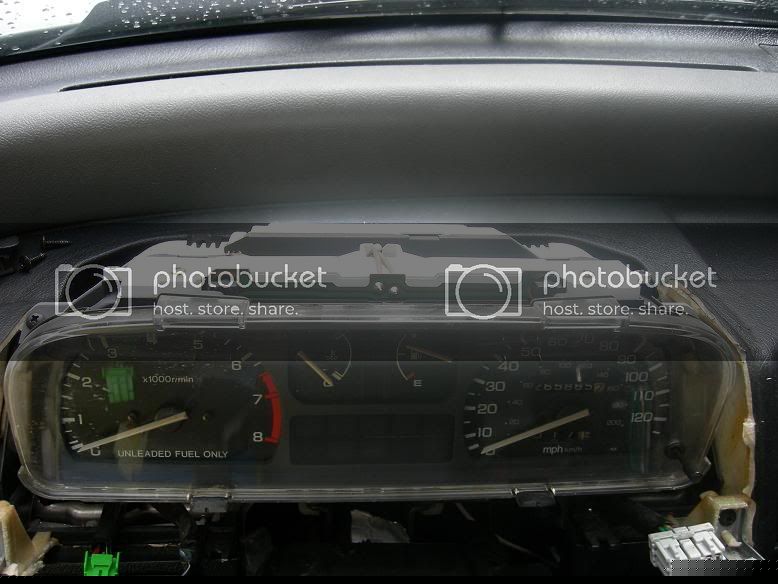

    4. On top of the gauge cluster you will find a small white plastic strip, the bulb housing. Unscrew the 2 screws holding it down and lift it up.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

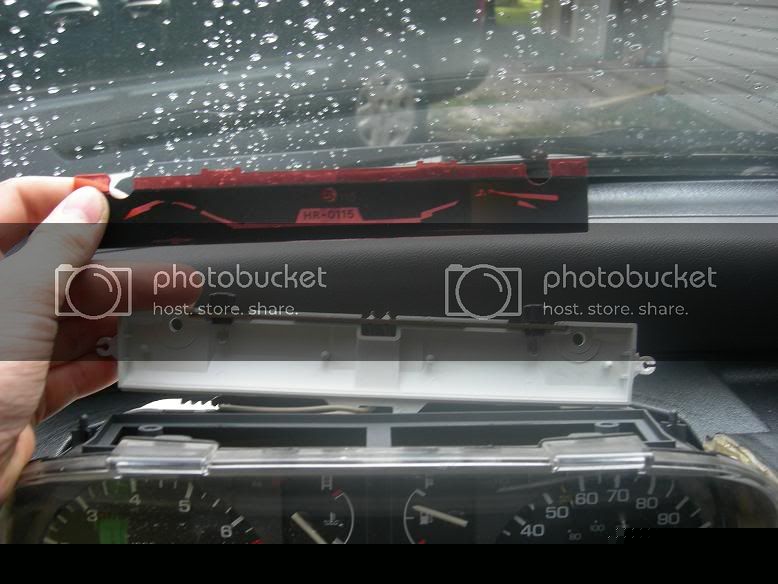

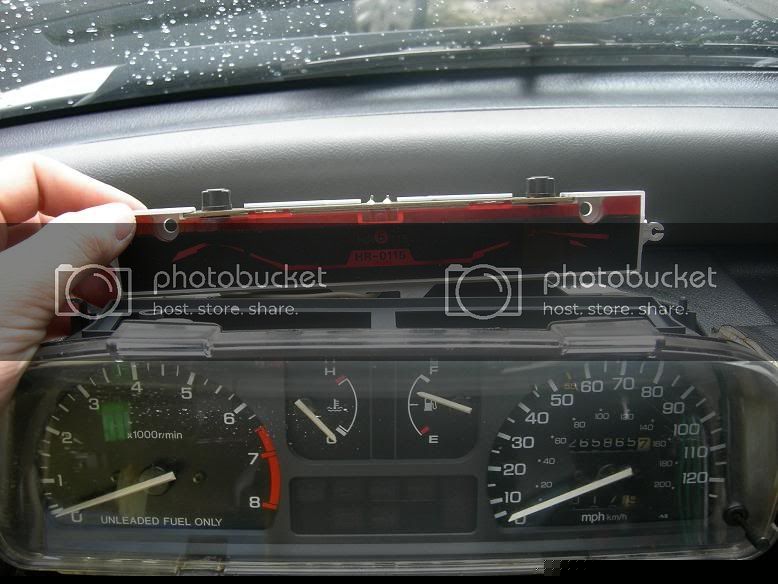

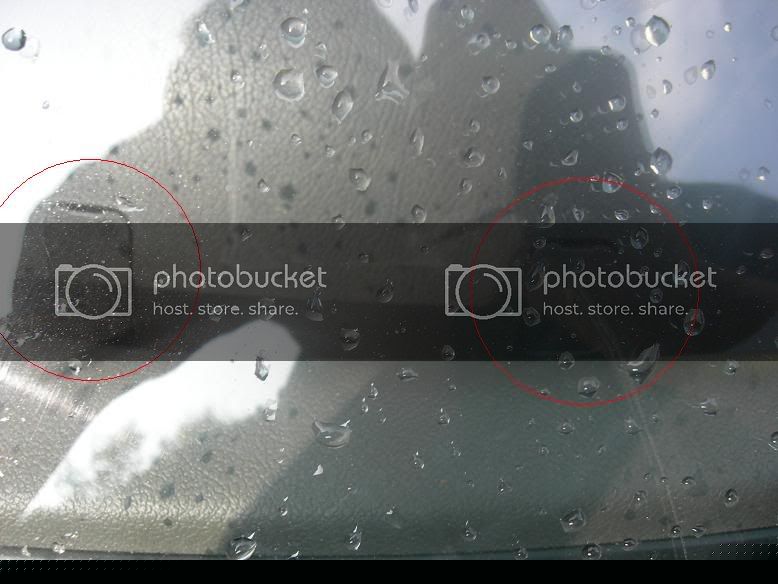

    5. With this up, you'll see a reddish colored light defuser. Remove it. As you can see, that light defuser does a lot more than just turn the light the color orange. it actually blocks the majority of the light from the bulbs.
    [​IMG]

    And thats all!

    If you want color in your cluster, take a piece of plastic, whatever color you want, and cut it to size and put it where the OEM piece was.

    Like I mentioned before, check my sig for other How To's, and as always, Comments are welcome.
    -Andrew

    1 person likes this.
  2. brian11to1

    brian11to1 Senior Member

    Messages:
    9,203
    Likes Received:
    21
    Joined:
    Jan 9, 2003
    any before or after shots?

  3. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    There were a couple great pics posted up on H-T a while back.
    Let me see if I can find them(it might be later tomorrow before I can get to it though)

    -Andrew

  4. NightCat

    NightCat New Member

    Messages:
    80
    Likes Received:
    0
    Joined:
    Nov 4, 2006
    I wonder if you could do the following,

    Cut a piece of plexiglass to the same size as the stock light difuser, then cut inside it to which you have a rectangle with no middle, then put a colored saran wrap over it and shove it back it.

    it shouldn't defuse too much light cause of it's thinness however, it should give you the color you want.

  5. 89crxzc

    89crxzc I provide inspiration!

    Messages:
    911
    Likes Received:
    11
    Joined:
    Nov 12, 2006
    Location:
    ohio
    thanks, i was trying to figure out how to get my gauge cluster brighter.

  6. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    hmm.. i think i'll try and make mine amber on my EG.. i'll figure it out

  7. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    I've seen people do that, and it works great!

    Go for it, and remember to take pics!

  8. 98DoHcWarrior

    98DoHcWarrior Junior Member

    Messages:
    36
    Likes Received:
    0
    Joined:
    Apr 3, 2004
    Hey man, this is a great Thread. Good Work...

  9. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
  10. cor-e

    cor-e New Member

    Messages:
    113
    Likes Received:
    0
    Joined:
    Oct 12, 2006
    Good stuff. I'll be doing that to my car. I love DIY (cuz I'm BROKE!).

  11. fasterimage

    fasterimage 2 SLOW CREW

    Messages:
    124
    Likes Received:
    0
    Joined:
    Jul 30, 2006
    Location:
    State College, PA
    Great write-up!! definetly will be doing that...Thank you

  12. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
  13. Alpine

    Alpine New Member

    Messages:
    51
    Likes Received:
    0
    Joined:
    Jan 1, 2007
    Location:
    Topeka, KS
    I did it on my car. How much trouble did the dimmer plug give you? I couldn't get it out so I just lowered my wheel and moved it. I love it though and eventually will make it blue.

  14. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
  15. Alpine

    Alpine New Member

    Messages:
    51
    Likes Received:
    0
    Joined:
    Jan 1, 2007
    Location:
    Topeka, KS
    What did you do to make it amber?

  16. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    for my EG cluster, i just bought amber bulbs and replaced the others with them

  17. Alpine

    Alpine New Member

    Messages:
    51
    Likes Received:
    0
    Joined:
    Jan 1, 2007
    Location:
    Topeka, KS
    Nice. Where did you get the bulbs?

  18. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    Autozone, but i've heard you can just scratch the blue thing off the bulbs that are in the cluster and color them with a red sharpie and it gives it a darker amber color..

  19. daveholiday

    daveholiday Do work

    Messages:
    1,820
    Likes Received:
    47
    Joined:
    May 10, 2007
    Location:
    Pittsburgh, Pennsylvania
    I know this thread was last active more than 7 months ago, but just for anyone reading this and thinking about doing it, it's the shit.

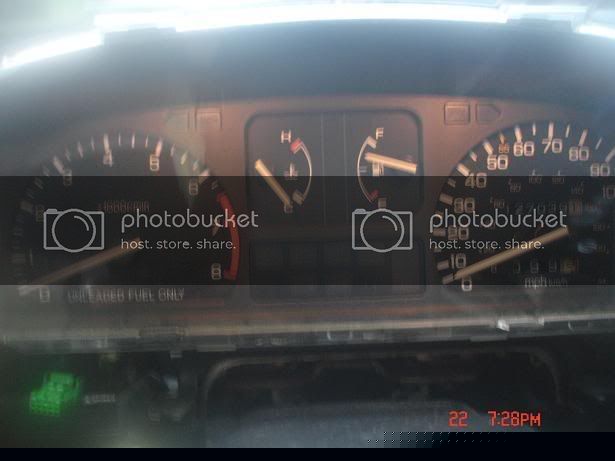

    [​IMG]
    this is during the day too

  20. EF9_Hatch

    EF9_Hatch Yeah

    Messages:
    1,012
    Likes Received:
    38
    Joined:
    May 1, 2007
    Location:
    Coraopolis, PA
    wow i really want to do that now lol...i want green ones...anyone know where u can get green saran wrap lol? is it the same steps in an ef?
