How To: Wire your own OBD-0 to OBD-1 Distributor Wiring adapter.

Discussion in 'HYBRID -> ED-EF / DA' started by Andrew, Sep 6, 2006.

  1. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    Heres how to make your own obd-0 to obd-1 dizzy adapters. It's kinda quick, but you get the idea.
    WIRE COLORS ARE NOT THE SAME AS YOURS. DON'T GO BY MY WIRE COLORS!!

    Stuff Needed:
    -OBD-0 dizzy plug with wires
    -OBD-1 dizzy plug with wires
    -Soldering gun/iron. I've had a few, and this is my favorite. it's a butane one from RadioShack for $20.
    -Solder. use what you like, I wanna say(from memory) this stuff is .35". Also from Radio Shack for about $3
    -Wire stippers.
    -Heat Shrink tubing. This is sold Everywhere. Home Depot, Lowes, RadioShack...
    -Time. It only took me about 30min to do it, but it's also my first one, and I took some extra time to MAKE SURE of my wiring before I soldered it. Please Take Your Time!

    Use this picture for wire connections.

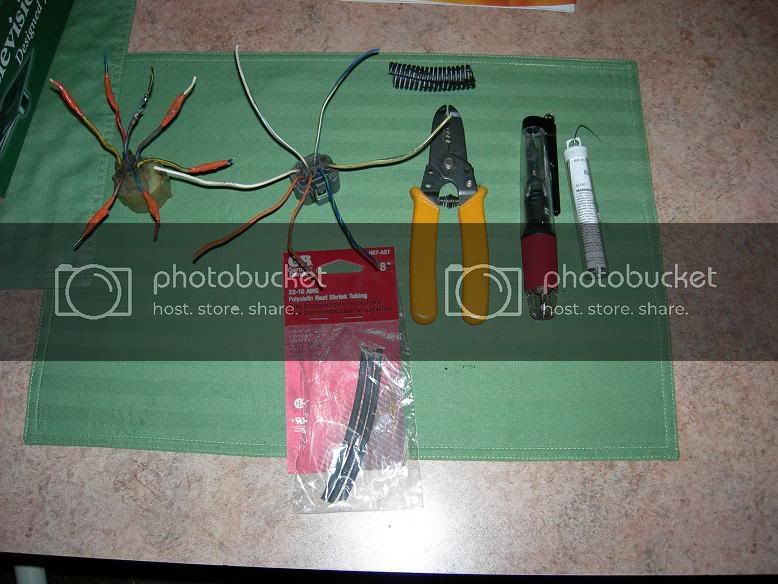

    1. Gather your stuff
    [​IMG]

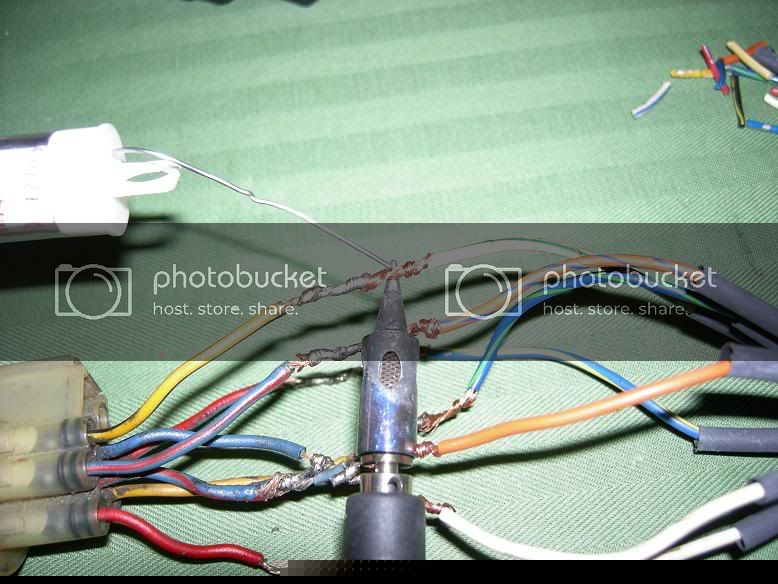

    2. Useing Boomslang's Installation Instructions on page 6; If you don't have Adobe, use This PIC, and find the correct connection.
    *Note* Don't forget to slide the Heat Shrink tubing on before you get to soldering! And make SURE of your connections.
    [​IMG]

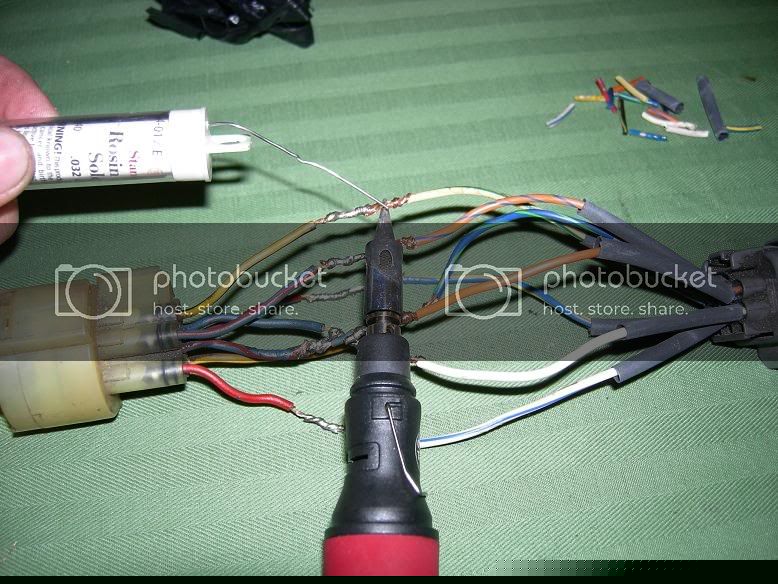

    3. Start soldering after your SURE of your connections.
    [​IMG]
    [​IMG]

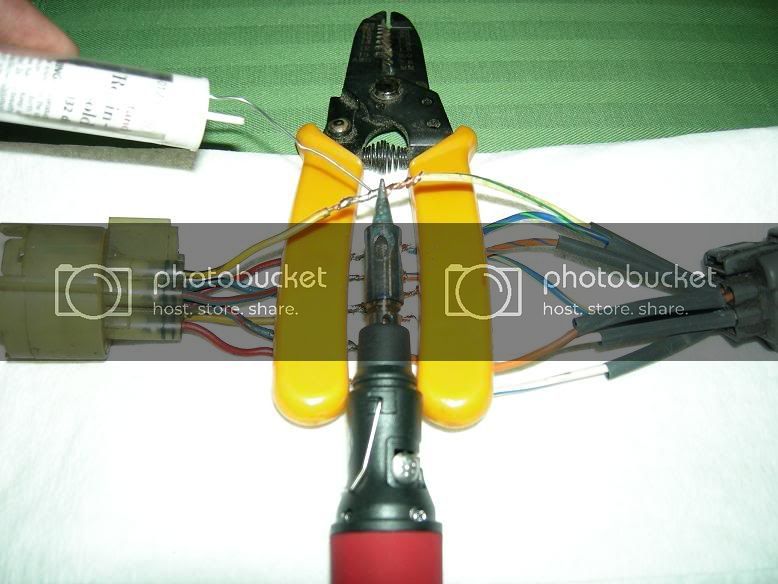

    This helped me in the process of soldering the wires. I held the other wires down with the wire stippers. You can obviously use anything you want, but these were right in front of me. It just kept the other wires out of the way, and I didn't have to worry so much about burning them accidentally while focusing on the main wire I was soldering.
    [​IMG]

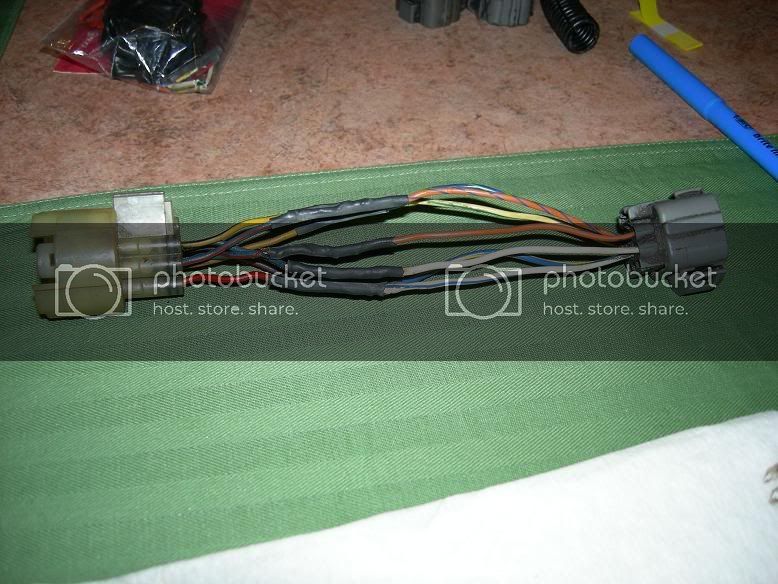

    4. Now once you've finished wiring them all up, go ahead and heat-shrink the wires. If your not too familiar with the process of heat-shrinking, don't fret- it's a piece of cake. All you do is slip the tubing over the exposed wires and apply heat not directly to the tubing, but close to it. What I did was left my soldering gun on low and hovered it over the tubing, and it worked like a charm.
    [​IMG]

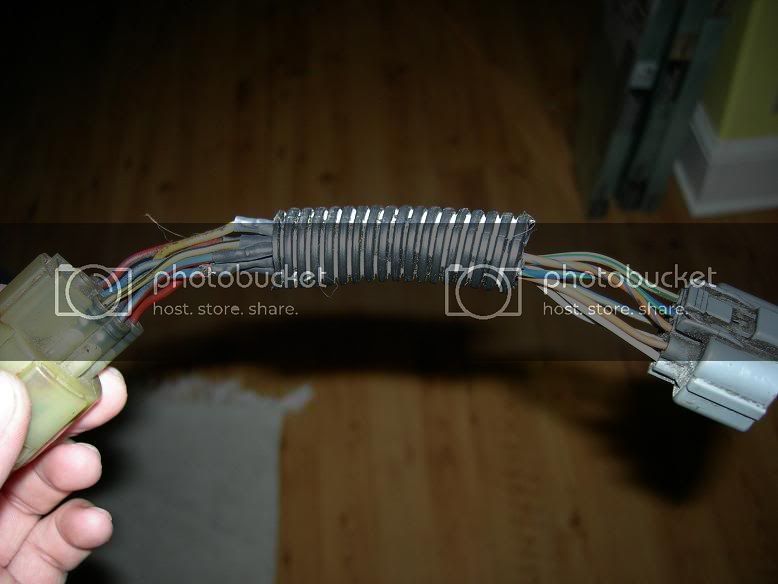

    5. Do what you like from here on out. tape the wires up, cover them with wire looming like I did in this picture, it doesnt matter. I'd suggest doing this just for protection. I didn't leave it like this, I did this and then followed it up with electrical tape wrapped all the way around the length of the adapter, from plug to plug. The reason I used such a little amount of looming is so that the plugs can bend and I won't have to worry so much about pins being under pressure. (Which is the sole reason of this little project.)
    [​IMG]


    Please enjoy, and tell your friends. :)
    Comments welcome as always. And don't forget to check my sig for other writeups too!
    -Andrew

    Last edited: Nov 28, 2006
    1 person likes this.
  2. lil_red_rex

    lil_red_rex i do body work!

    Messages:
    170
    Likes Received:
    0
    Joined:
    Jun 17, 2006
    Location:
    west have ct
    i honestly dont understand why people dont depin there wires and repin them in the new obd1 plug.....much easier and less wires! lol......:D

  3. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    well, yeah, but you see I didn't have the other(wiring harness side) obd0 plug to begin with. I bought this dizzy adapter but it was one of the worst wiring jobs i'd ever seen., and it was too short, so I rewired it with longer wires.

    Your right though, it would be easier to do it that way.

  4. phunky.buddha

    phunky.buddha Admin with a big stick Admin VIP

    Messages:
    28,465
    Likes Received:
    228
    Joined:
    Sep 30, 2002
    Location:
    Dallas / Fort Worth, TX
    Great job! One note- do NOT buy the heat shrink tubing that Radio Shack sells. It doesn't shrink worth a damn, and it melts under any kind of halfway decent heat. Buy the GB brand stuff from Home Depot. It's WAY better.... and is quite similar to the stuff that we use in a military spec electronics plant.

  5. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    Well then, I guess it's a good thing I bought my tubing at Home Depot then! haha

    Thanks for that bit on info bro.

  6. goldgreen90ef

    goldgreen90ef goldgeen90ef

    Messages:
    642
    Likes Received:
    4
    Joined:
    Aug 19, 2006
    Location:
    cold ohio
    sweet post...im about to do that in my 90 dx w a di5b vtec thanks

  7. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
  8. suspendedHatch

    suspendedHatch audio/security

    Messages:
    124
    Likes Received:
    1
    Joined:
    Jul 4, 2006
    Simple. Because it's easily reversible. If you have a problem, or you want to sell the car, it's a plug n play ordeal. If you're smart, you'll do the same thing with the engine harness.

  9. ef8

    ef8 Junior Member

    Messages:
    260
    Likes Received:
    1
    Joined:
    Jan 25, 2006
    So these pics are for obd0-obd1 dizzy wiring?How come you have a solid red wire when the diagram shows only the obd2 to have a red?

  10. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    What do you mean?

    The solid Red is on the OBD-0 side... the OBD-1 plug doesn't have a solid red wire at all...?

  11. ef8

    ef8 Junior Member

    Messages:
    260
    Likes Received:
    1
    Joined:
    Jan 25, 2006
    Last edited: Oct 7, 2006
  12. ef8

    ef8 Junior Member

    Messages:
    260
    Likes Received:
    1
    Joined:
    Jan 25, 2006
    It doesnt show the obd0 plug to have a red wire

  13. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    huh... thats wierd.
    I bought this as a 'conversion' harness adapter for the dizzy, and rewired it because it was originally connected badly(one twist and a shot of cold solder)..
    Maybe he wired new wires/pins on it? idk.

    I know it worked, sorry if mines different. The Boomslang instructions still provide you with everything you need to know...

    Thanks for bringing that to my attention though.

  14. ef8

    ef8 Junior Member

    Messages:
    260
    Likes Received:
    1
    Joined:
    Jan 25, 2006
  15. ef8

    ef8 Junior Member

    Messages:
    260
    Likes Received:
    1
    Joined:
    Jan 25, 2006
    [​IMG]

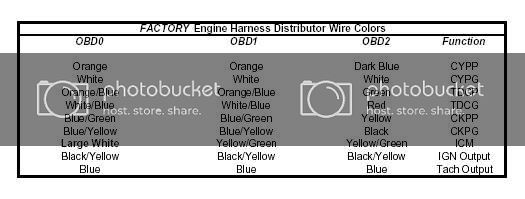

    So according to this the difference between obd0 and obd1 is the obd0 large white and the obd1 yellow/green?

  16. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    Yep... but my wires are different colors.
    The guy I bought the adapter from evidently re-pinned the connector... or maybe he used an obd2 plug... idk.

  17. ef8

    ef8 Junior Member

    Messages:
    260
    Likes Received:
    1
    Joined:
    Jan 25, 2006
  18. hondapartshero.com

    hondapartshero.com New Member

    Messages:
    18
    Likes Received:
    0
    Joined:
    Oct 12, 2006
    Honda used this OBD0 plug on other sensors, it looks like its probably wired for one of those

  19. suspendedHatch

    suspendedHatch audio/security

    Messages:
    124
    Likes Received:
    1
    Joined:
    Jul 4, 2006
    Is it just me, or are those plugs wired completely wrong? I'm not talking about the wire colors because obviously those are different. I'm talking about the pins. I have an OBD0 and an OBD1 plug in front of me, all the wire colors match up between them except the OBD0 has two white wires and the OBD1 has one white wire and one yellow/green wire.

    His red wire is white on my plug. He has it going to the white/blue on the OBD1?!! It should be going to his yellow/black.

    On my plug connector, both white wires are the same size. There is no "large" white wire. One of them is above the orange wire and below the empty pin. The other is below the orange wire. Which of these go to the yellow/green wire on the OBD1 connector?

  20. Andrew

    Andrew Well-Known Member

    Messages:
    2,685
    Likes Received:
    26
    Joined:
    Mar 2, 2006
    Location:
    Tallahassee, FL
    Once again, my wire colors are different.
    I bought this from a private guy selling dizzy adapters. He must have just pinned some random wires he had laying around.

    If you go by the wire chart ef8 posted(which is directly from Boomslang's manual), you can do it.
