Hybrid VTEC Wiring

Discussion in 'ECU's, Electronics, and Tuning' started by RoughKnight, Oct 6, 2009.

  1. RoughKnight

    RoughKnight Christmas Car

    Messages:
    846
    Likes Received:
    25
    Joined:
    Aug 4, 2009
    Location:
    Ottawa, Ont
    Basic schematics for OBD0 Wiring[​IMG]

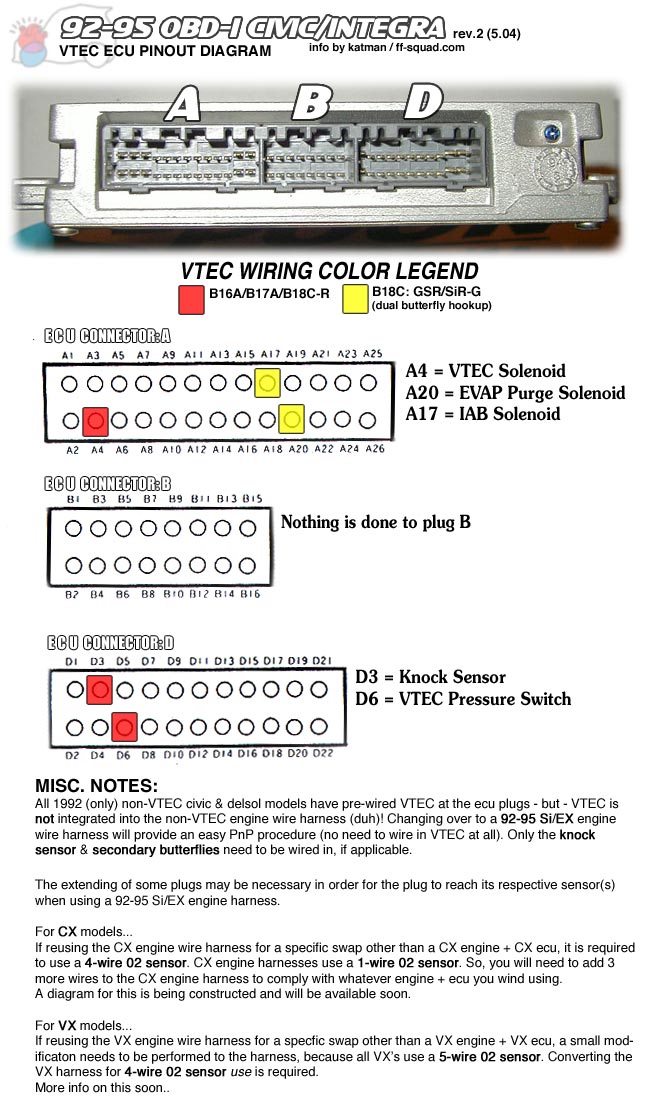

    OBD1 Basic wiring Schematics.
    [​IMG]

    BONUS!!! Engine Bay Splice Diagram!
    [​IMG]

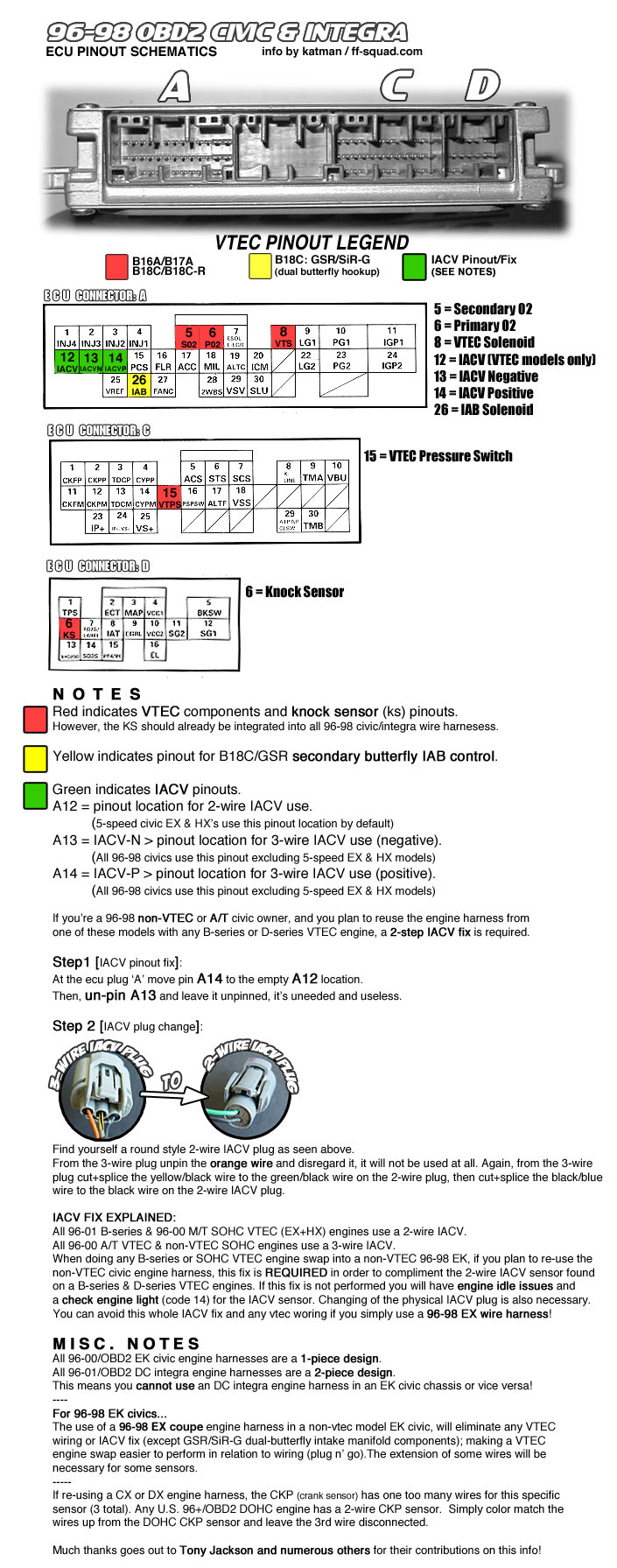

    OBD2a basic wiring schematics

    [​IMG]

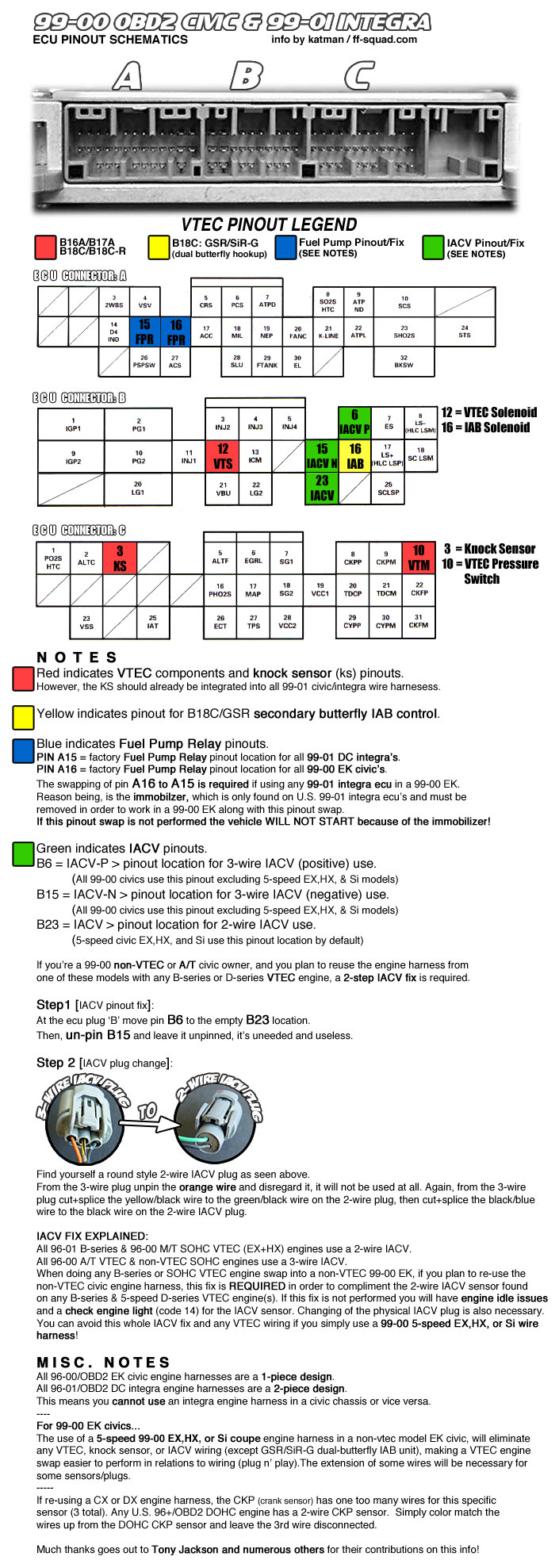

    OBD2b basic wiring schematics

    [​IMG]

    Hope this helps, most of the questions are answered here. I just used the diagram and did my own wiring, so its pretty accurate. All pics taken from Pheerable.net. It is hotlinked atm, I dunno if that is an issue, but I will post the pics on a image site if deemed necessary. I just don't know the site's rules against hotlinking.

  2. INJEN78

    INJEN78 HS LEGEND

    Messages:
    9,187
    Likes Received:
    121
    Joined:
    Oct 1, 2007
    Location:
    OHIO
    im pretty sure we have something similar to this in referance materials

  3. INJEN78

    INJEN78 HS LEGEND

    Messages:
    9,187
    Likes Received:
    121
    Joined:
    Oct 1, 2007
    Location:
    OHIO
  4. RoughKnight

    RoughKnight Christmas Car

    Messages:
    846
    Likes Received:
    25
    Joined:
    Aug 4, 2009
    Location:
    Ottawa, Ont
    Pics make it easier. I saw it there when I needed a diagram, and ended up using these. + They are coloured! If its not needed i'll just delete the posts. Just trying to help out.

  5. INJEN78

    INJEN78 HS LEGEND

    Messages:
    9,187
    Likes Received:
    121
    Joined:
    Oct 1, 2007
    Location:
    OHIO
    lol scroll down in that link and there are the exact same pix there..just lettin you know..there skippy

  6. RoughKnight

    RoughKnight Christmas Car

    Messages:
    846
    Likes Received:
    25
    Joined:
    Aug 4, 2009
    Location:
    Ottawa, Ont
    Oh snap! I never noticed! FAIL
    :facepalm:

  7. safiro21

    safiro21 New Member

    Messages:
    10
    Likes Received:
    0
    Joined:
    Sep 27, 2009
    OK I am lost!! is good the diagram but what ecu you use for this pin... i have the pm6 crx si ecu. and i try to activate vtec without change the ecu...

  8. 78civic

    78civic Junior Member

    Messages:
    725
    Likes Received:
    10
    Joined:
    Oct 28, 2004
    Location:
    NW MS, Y'all
    I was under the impression that you needed a Vtec specific ECU..?

    Roughknight: I like it. I do better with pictures anyhow.

    E

  9. RoughKnight

    RoughKnight Christmas Car

    Messages:
    846
    Likes Received:
    25
    Joined:
    Aug 4, 2009
    Location:
    Ottawa, Ont
  10. Bobby17772

    Bobby17772 New Member

    Messages:
    785
    Likes Received:
    6
    Joined:
    Jun 11, 2009
    Location:
    Enfield, CT
    not anymore, my friend has been running a B20 as obd0 with a B16 head and running the vtec with an rpm switch

  11. INJEN78

    INJEN78 HS LEGEND

    Messages:
    9,187
    Likes Received:
    121
    Joined:
    Oct 1, 2007
    Location:
    OHIO
    you cant activate vtec from a nonvtec ecu..you have to a 12v power supply from somewhere else..
