Injector cnntrol box

Discussion in 'Forced Induction' started by turbocrx2.0l, Jan 9, 2004.

  1. turbocrx2.0l

    turbocrx2.0l Member

    Messages:
    40
    Likes Received:
    0
    Joined:
    Aug 22, 2003
    Location:
    Cayman Islands ( caribbean near Jamaica)
    I would like to know with the help of good understanding how to conect a injector control box from a 1991 CRX to a 1997 Civic Sir with a B16A motor and a P30 ecu?I have a solid deck block to turbo and i want to add bigger injectors .Hel will be much appreciated with the help of a picture instruction. email me at k_fletcher10@hotmail.com ,thanks alot and keep up the useful info(pissedoff). :worthy: l

  2. pissedoffsol

    pissedoffsol RETIRED

    Messages:
    49,693
    Likes Received:
    54
    Joined:
    Sep 28, 2002
    Location:
    Retirement Home
  3. pissedoffsol

    pissedoffsol RETIRED

    Messages:
    49,693
    Likes Received:
    54
    Joined:
    Sep 28, 2002
    Location:
    Retirement Home
  4. pissedoffsol

    pissedoffsol RETIRED

    Messages:
    49,693
    Likes Received:
    54
    Joined:
    Sep 28, 2002
    Location:
    Retirement Home
    stock:

    [​IMG]


    after install:

    [​IMG]

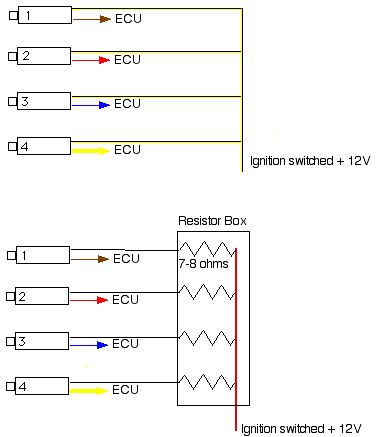

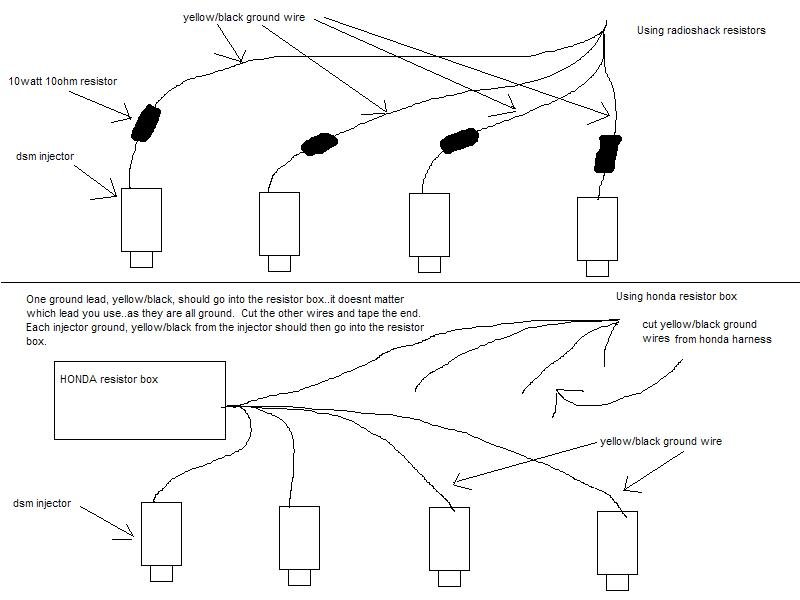

    The resistor box has internal to it 4 resistors with one lead of each tied together. This common lead gets tied to a switched ignition source, such as the original power wire (blk/yel) at the junction connector. The junction connector is partially displayed in the first picture.

    Notice in the first picture that each injector has a blk/yel power wire feeding it. You need to cut EACH blk/yel wire and solder one of the remaining 4 wires from the resistor box. It does not matter which wire...they are just resistors which are all tied to +V.

  5. turbocrx2.0l

    turbocrx2.0l Member

    Messages:
    40
    Likes Received:
    0
    Joined:
    Aug 22, 2003
    Location:
    Cayman Islands ( caribbean near Jamaica)
    Thanks for all the info guys,it really helps further more i am in the Cayman Islands and no one here understands what i am doing to my car.It is a turbocharged CRX that last weekend put a WRX Sti to rest by about 4 car length.Thanks alot.
