jumper harness problems

Discussion in 'ECU's, Electronics, and Tuning' started by c-rex-beat, Oct 21, 2008.

  1. c-rex-beat

    c-rex-beat yeah, it's a vtec.

    Messages:
    152
    Likes Received:
    0
    Joined:
    Aug 3, 2008
    Location:
    tyler, TX
    I am going from obd0 to obd1. I bought the harness from nigaphan no ebay, Heard he made a pretty good product. Anyways I lost the paper that explains what wire goes to what. I have 12 wires. I know 4 is for o2, thermo etc. Maby someone has one, I hope.

  2. mintoxik

    mintoxik Member

    Messages:
    430
    Likes Received:
    4
    Joined:
    Feb 22, 2008
    Location:
    Oceanside
    vtec?

  3. c-rex-beat

    c-rex-beat yeah, it's a vtec.

    Messages:
    152
    Likes Received:
    0
    Joined:
    Aug 3, 2008
    Location:
    tyler, TX
  4. mintoxik

    mintoxik Member

    Messages:
    430
    Likes Received:
    4
    Joined:
    Feb 22, 2008
    Location:
    Oceanside
    maybe thats where your other wires go

  5. c-rex-beat

    c-rex-beat yeah, it's a vtec.

    Messages:
    152
    Likes Received:
    0
    Joined:
    Aug 3, 2008
    Location:
    tyler, TX
    All I need to know is which ones goes to what. All I have is 12 wires dangling from jumper.

  6. mintoxik

    mintoxik Member

    Messages:
    430
    Likes Received:
    4
    Joined:
    Feb 22, 2008
    Location:
    Oceanside
    i dont think anyone is going to know that unless someone had the same problem
    theres not enough info just that you have 12 extra wires

  7. c-rex-beat

    c-rex-beat yeah, it's a vtec.

    Messages:
    152
    Likes Received:
    0
    Joined:
    Aug 3, 2008
    Location:
    tyler, TX
    well thats what I was hoping.

  8. mintoxik

    mintoxik Member

    Messages:
    430
    Likes Received:
    4
    Joined:
    Feb 22, 2008
    Location:
    Oceanside
  9. hatukazi

    hatukazi ambitious...but rubbish

    Messages:
    508
    Likes Received:
    6
    Joined:
    Jan 1, 2007
    Location:
    Big Lake, MN
  10. GlassHeadlights

    GlassHeadlights West West Yall

    Messages:
    4,066
    Likes Received:
    71
    Joined:
    Oct 24, 2007
    Location:
    Calgary, AB
    What colors are the 12 wires? I have a OBD0 to OBD1 jumper out of my car sitting in a box and maybe by chance the wires will be the same color. Or if not I could tell you which wire goes to each pinout if you'd like and its function.

    With my mini me swap I only used 6 wires of the 12 on the jumper. 4 for the o2 sensor and 2 for VTEC (last wire was a ground). The rest of the wires were just plain and simple ground and power wires. There was a couple of wires needed for different motors that I just taped off. Oh and there was one wire used for the check engine light.

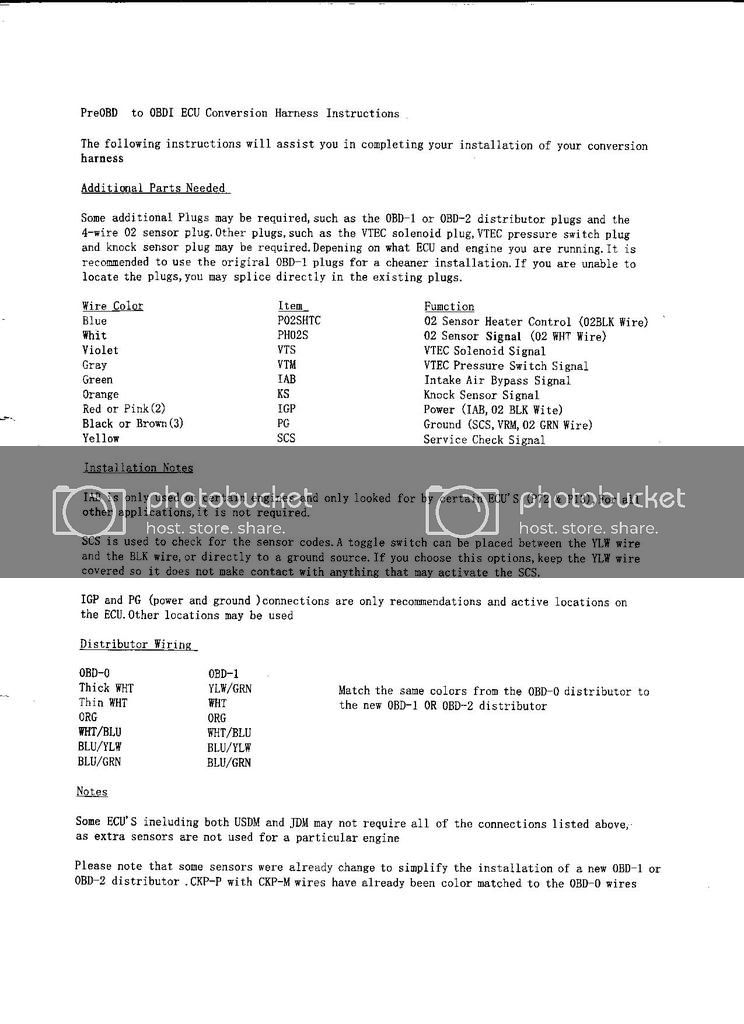

    Here are the instructions I got with my harness. If they don't match I can tell you which wire goes where: [​IMG]

    Last edited: Oct 21, 2008
  11. c-rex-beat

    c-rex-beat yeah, it's a vtec.

    Messages:
    152
    Likes Received:
    0
    Joined:
    Aug 3, 2008
    Location:
    tyler, TX
    those are the ones! but is it correct? What the hell at least try it. Did you notice a decent gain in your mini?

  12. c-rex-beat

    c-rex-beat yeah, it's a vtec.

    Messages:
    152
    Likes Received:
    0
    Joined:
    Aug 3, 2008
    Location:
    tyler, TX
    A: 1-3-5-7-9-11-13-15-17-19-21
    2-4-6-8-10-12-14-16-18-20-22


    B: 1-3-5-7-9-11-13-15
    2-4-6-8-10-12-14-16


    C: 1-3-5-7-9-11-13-15-17-19-21
    2-4-6-8-10-12-14-16-18-20-22

    A plug # 4 is purple, 6 is blue, 17 is green, 21 is red, 22 is black,
    B plug # 1 is red, 2 is black,
    C plug # 3 is orange, 4 is yellow, 6 is grey, 14 is white

  13. GlassHeadlights

    GlassHeadlights West West Yall

    Messages:
    4,066
    Likes Received:
    71
    Joined:
    Oct 24, 2007
    Location:
    Calgary, AB
    I haven't put it togther yet. I'm in the process of rebuilding my block and head.

  14. GlassHeadlights

    GlassHeadlights West West Yall

    Messages:
    4,066
    Likes Received:
    71
    Joined:
    Oct 24, 2007
    Location:
    Calgary, AB
    I'm calling A plug the biggest plug, B plug the smallest plug and C plug the middle sized plug.

    A Plug: #4 is purple(the same), #6 is blue(the same), #17 is green(the same), #21 is red(the same), #22 is black but it turns into brown(a bit different).

    B Plug: #1 is black but it turns into pink(a bit different), #2 is black and stays black(a bit different).

    C Plug: Is all the same.

    Its very close. From here you can use my instructions I got with my harness and what I added here to figure out yours. Good luck.:)

  15. c-rex-beat

    c-rex-beat yeah, it's a vtec.

    Messages:
    152
    Likes Received:
    0
    Joined:
    Aug 3, 2008
    Location:
    tyler, TX
    I think thats it. appreciate all the help. am looking for obd1 dizzy if anyone has one.

  16. GlassHeadlights

    GlassHeadlights West West Yall

    Messages:
    4,066
    Likes Received:
    71
    Joined:
    Oct 24, 2007
    Location:
    Calgary, AB
    Make sure you get the OBD1 D16Z6 VTEC one, not any OBD1 one.

    I got one off eBay for $25, just search around.
