mpfi swap distibutor wiring. my colors dont match TD-02u/pm6/91 std

Discussion in 'Civic and CRX - EF' started by bistage, Jun 16, 2010.

  1. bistage

    bistage New Member

    Messages:
    15
    Likes Received:
    1
    Joined:
    Jun 16, 2010
    Okay so i got hasty because all the tuts said match colors and connect the wires/re-pin into new plug. Well I de-pinned my plugs and went to match wire colors and pretty much none of the wires match color.

    The engine harness is the stock 91 civic standard harness
    the distributor is a td-02u from a 91 si
    I am running a pm6 ecu

    distributor wire colors...
    blue
    blue w/yellow stripe
    yellow w/ green stripe
    white
    creme
    creme w/blue stripe
    white w/ blue stripe

    engine harness colors and my c1 and c2...
    c1
    c2
    orange
    orange w/ blue stripe
    white w/blue stripe
    big white
    little white

    I take it that the creme color is supposed to be orange

    so...
    dizzy-----------------------------------harness
    creme----------------------------------orange
    creme w/ blue ----------------------orange w/ blue
    white w/ blue ------------------------white w/ blue
    blue w/ yellow -----------------------c2

    after that i am lost. i have these left to connect
    dizzy...................................harness
    yellow w/ green.....................c1
    blue.....................................big white
    white...................................little white

    Now are my assumed connections right and what about the rest of the connections. all tuts say c1 goes to a blue/green wire and my distributor does not have that color.

    Now after searching a while I found this picture of the plugs and had I not de-pinned my plug already this would have made it simple just going by position rather than color.
    [​IMG]

  2. podagee

    podagee New Member

    Messages:
    50
    Likes Received:
    0
    Joined:
    Sep 13, 2008
    Location:
    wailuku,hi
    i did the swap and if you read the walkthrough correctly it doent tell you to rewire the dizzy from the ecu,you just run the C spliced wires to the dizzy cut the plug then connect the remainder and the colors do match up

  3. bistage

    bistage New Member

    Messages:
    15
    Likes Received:
    1
    Joined:
    Jun 16, 2010
    i dont have the harness side of the plug from the si dizzy and no the colors dont match up in anyway. I listed the colors I have on both sides I thought that would make it clear that the colors dont match. I dont have the harness side of the Si plug I am putting 5 of the dizzy wires in the std plug that is made for the original harness and have a second radio shack plug for c1, and c3.

    Does anybody know what the green/yellow wire in the distributor is?

  4. bistage

    bistage New Member

    Messages:
    15
    Likes Received:
    1
    Joined:
    Jun 16, 2010

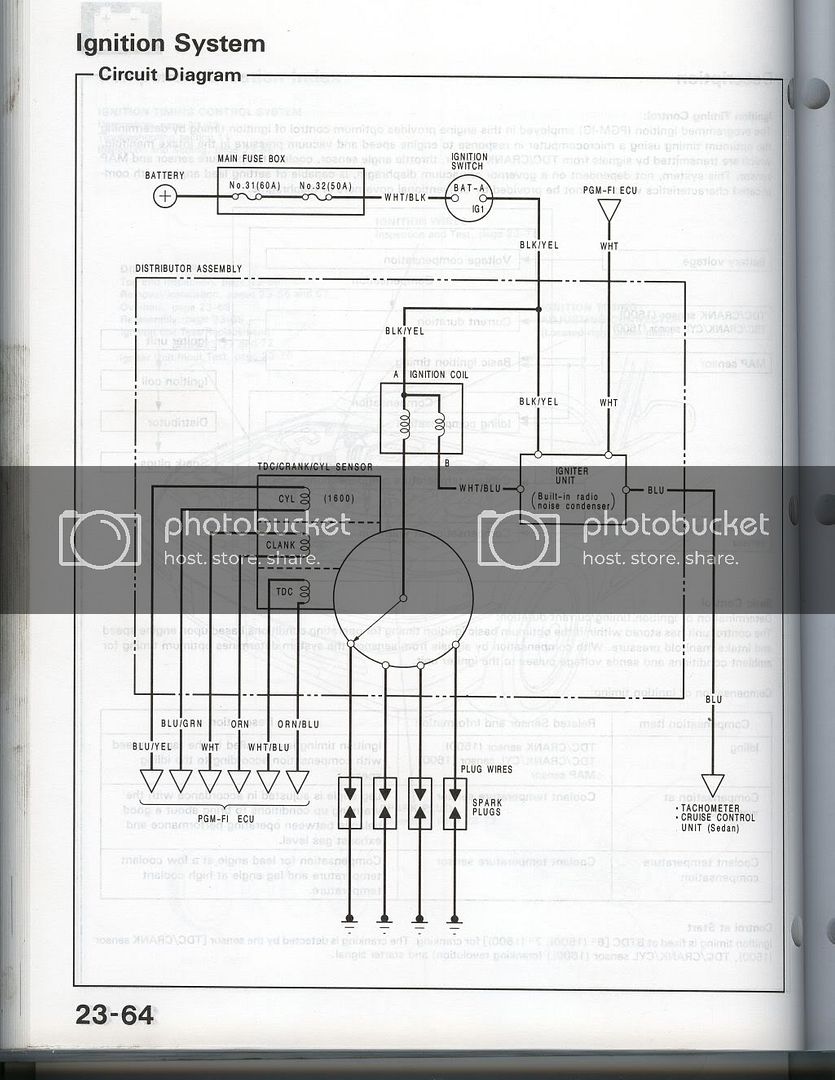

    I found this diagram of the si distributor and there is no mention of a green/yellow wire

    [​IMG]

  5. bistage

    bistage New Member

    Messages:
    15
    Likes Received:
    1
    Joined:
    Jun 16, 2010
    well i have it running but not sure its right. considering that it will run with c1 and c2 not plugged in I cant really tell. I have to get all the codes (3) the ecu is giving worked out.
