wiring diagram question

Discussion in 'ECU's, Electronics, and Tuning' started by deathbus, Oct 11, 2010.

  1. deathbus

    deathbus New Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Dec 15, 2009

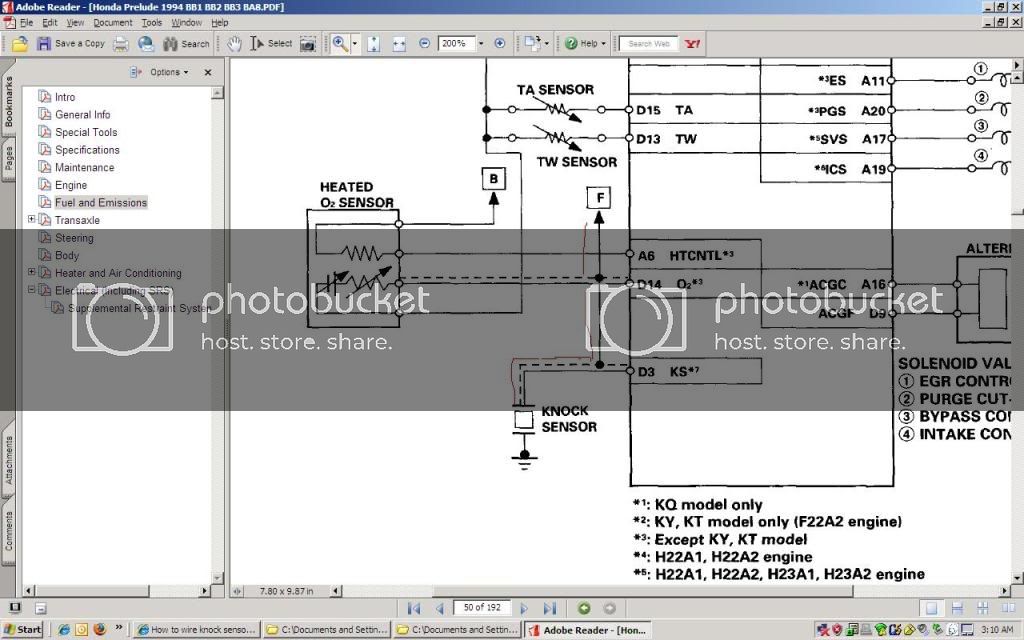

    anyone know what this dotted line is all about? (one next to the red line)

    [​IMG]the knock sensor is a single wire sensor, grounded to the block. i dont understand what the dotted one relates to, :confused: , is it something to do with other sensor live feeds being tied in with the knock? as the line goes up to the other page it crosses through the o2 sensor, ckp,cyl and tdc sensors before grounding out at ecu pins b2 (lg2) and a26 (lg1).
    im stumped as theres nothing like this in the wiring legend for the manual. :wtf:
    so electrical gurus, show me what u got! lol

  2. jlicrx

    jlicrx Senior Member

    Messages:
    1,891
    Likes Received:
    65
    Joined:
    Jun 5, 2003
    Location:
    Colorado Springs
    the dashed lines indicate that the adjacent wires are shielded - the shielding is all grounded with ground wire at the thermostat housing
