ecu pinout ???

Discussion in 'ECU's, Electronics, and Tuning' started by Dark91zc, Sep 27, 2004.

  1. Dark91zc

    Dark91zc Senior Member

    Messages:
    283
    Likes Received:
    0
    Joined:
    Sep 9, 2004
    Location:
    Corona,CA
    what is the white block and what wires are on it and what about the 2 black blocks what are they for and how do i know what pin is what. pm6 pm7 pg7 and pg7. are the pics that show what hole is what???


    thanks

  2. xj0hnx

    xj0hnx I wanna be sedated VIP

    Messages:
    14,172
    Likes Received:
    48
    Joined:
    Nov 10, 2002
    Location:
    C.C.TX.
    What the hell are you talking about? Post a pic or link or something.

  3. diamondthief

    diamondthief Member

    Messages:
    35
    Likes Received:
    0
    Joined:
    Feb 22, 2004
    Location:
    Hasty, Minnesota
    ya lol

    :nobreed:

    j/k, somebody help this G out

  4. Dark91zc

    Dark91zc Senior Member

    Messages:
    283
    Likes Received:
    0
    Joined:
    Sep 9, 2004
    Location:
    Corona,CA
    sorry what i mean is the ecu has 3 connectors

    a white one that has 16 wires on it but 17 pins on the ecu

    next is the middle black connector that has 16 wires and 20 pins on the ecu

    and the last black connector that has 15 wires and 16 pins on the ecu

    what block does what and what are the colors of the wires

    i am trying to re wire a civic

  5. xj0hnx

    xj0hnx I wanna be sedated VIP

    Messages:
    14,172
    Likes Received:
    48
    Joined:
    Nov 10, 2002
    Location:
    C.C.TX.

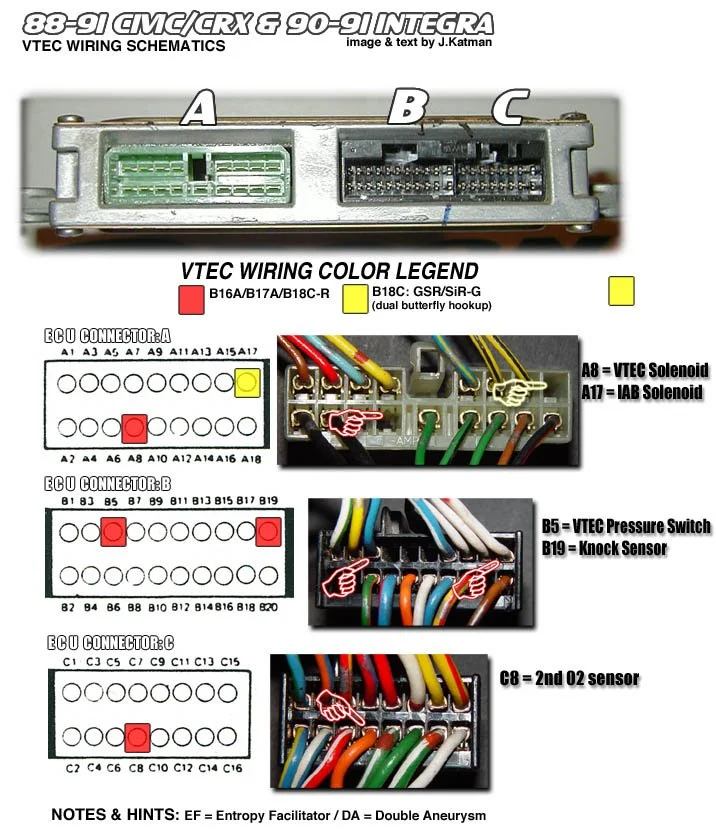

    If you're swapping, this may help a little.

    [​IMG]

    If not I suggest picking up an electrical manual from Helms. This isn't project to go blindly into.

  6. Dark91zc

    Dark91zc Senior Member

    Messages:
    283
    Likes Received:
    0
    Joined:
    Sep 9, 2004
    Location:
    Corona,CA
    dude thanks so much you have made my day.
