Vaccum Assistance b18a1

Discussion in 'General Tech and Maintenance' started by Eagle St Studios, Jun 17, 2012.

  1. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI

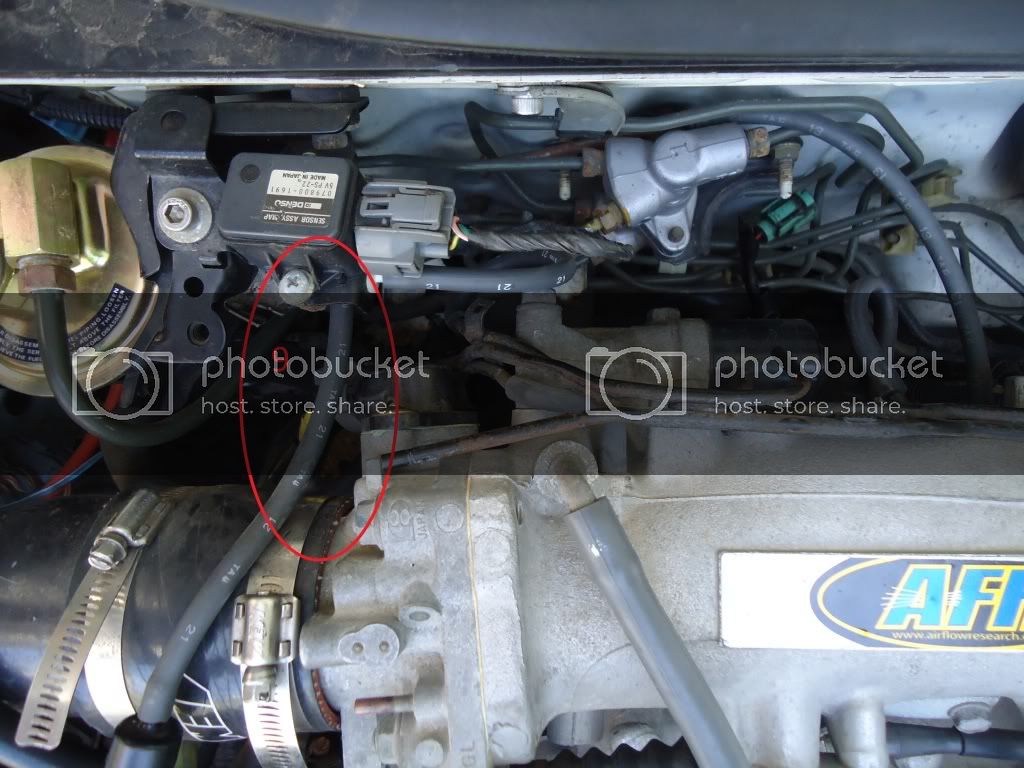

    i have quite the project and am having trouble finding a good diagram please help...ive taken the time to lable my questions and concerns for ease

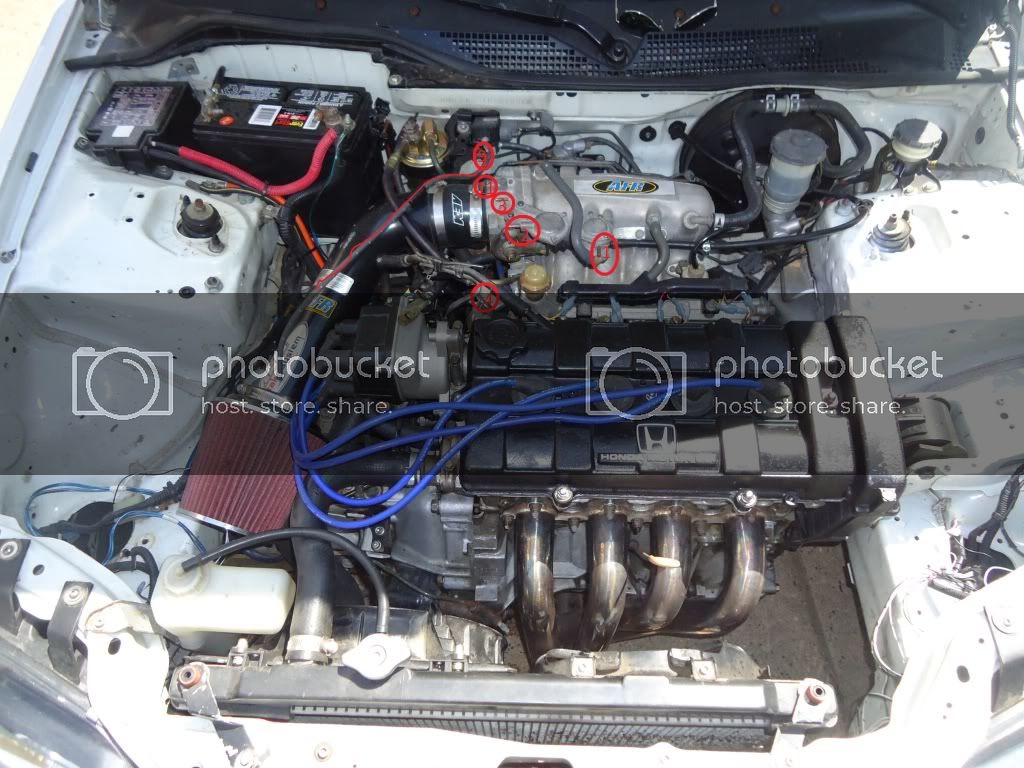

    [​IMG]

  2. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
    [​IMG]

  3. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
  4. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
  5. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI

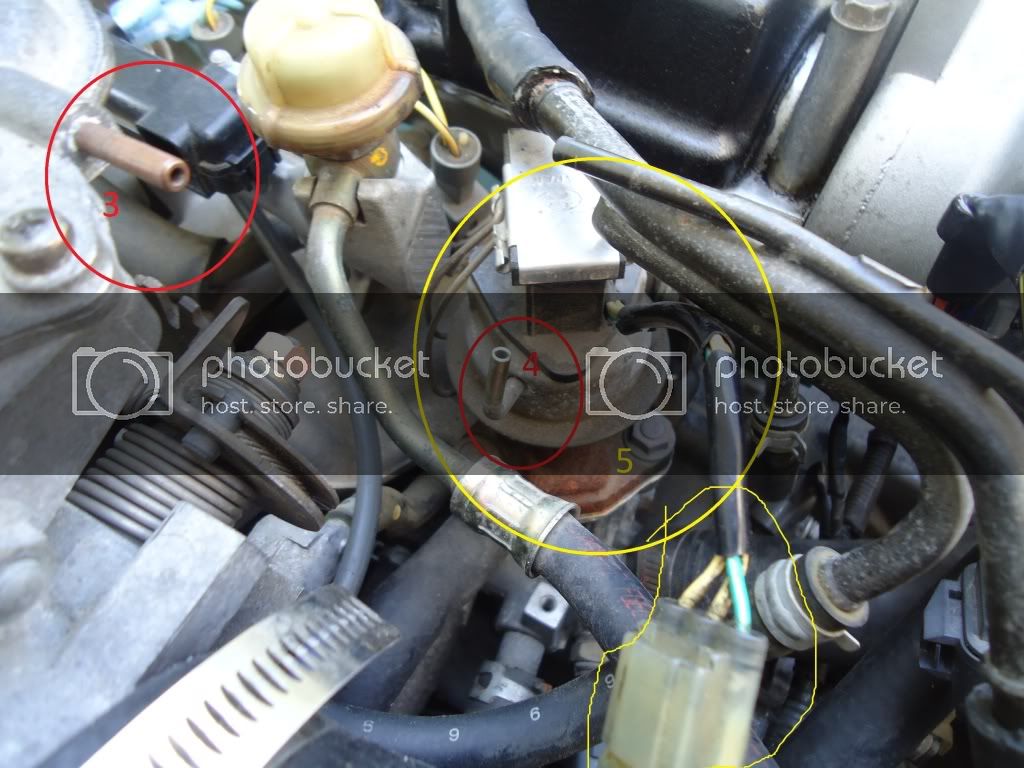

    7 has no vaccum comming out of one top spot... #6 whats this plug!?

  6. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
  7. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
    when i plugged #1 with my finger it seameed to help the idle... and finally my biggest idiot question that i havent been able to answer myself...what is #5 i cant find the other end to the plug... i first thought erg...but idk

  8. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
  9. CAFROG

    CAFROG Honda Minion VIP

    Messages:
    4,417
    Likes Received:
    154
    Joined:
    Apr 5, 2009
    Location:
    NOR-CAL
  10. CAFROG

    CAFROG Honda Minion VIP

    Messages:
    4,417
    Likes Received:
    154
    Joined:
    Apr 5, 2009
    Location:
    NOR-CAL
    I think #4 goes to #9 (JDM firewall mounted MAP).....at least my JDM B16A TB was just like that.

  11. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
    awesome thanks for the link, for as much as im on google im suprised im keep having a hard time finding what i need to

  12. Dual-500

    Dual-500 Well-Known Member VIP

    Messages:
    2,205
    Likes Received:
    216
    Joined:
    Jan 12, 2008
    Location:
    Fort Worth, Texas
    Looking a the pics, on the hard coolant lines, I shitcanned them all and use rubber lines everywhere on my install. Also, after years of using screw type and spring type clamps, I have gone back to using OEM spring type. Get the replacement hose at the auto parts store, they should also have the spring clamps you need for the smaller lines up to about 5/16". If not, just goto the dealer parts counter and order up a dozen or so. Why spring type? They never get loose and weep coolant. I HATE the smell of coolant coming from under the hood, only to look for it and not find it bacause it's under the intake manifold or somewhere else ya can't see.

    If your engine is solid, no knocks or major oil leaks or oil consumption this will be a worthwhile endeavor for sure. Clean it up and you will have a nice ride.

    :thumbsup:

  13. Dual-500

    Dual-500 Well-Known Member VIP

    Messages:
    2,205
    Likes Received:
    216
    Joined:
    Jan 12, 2008
    Location:
    Fort Worth, Texas

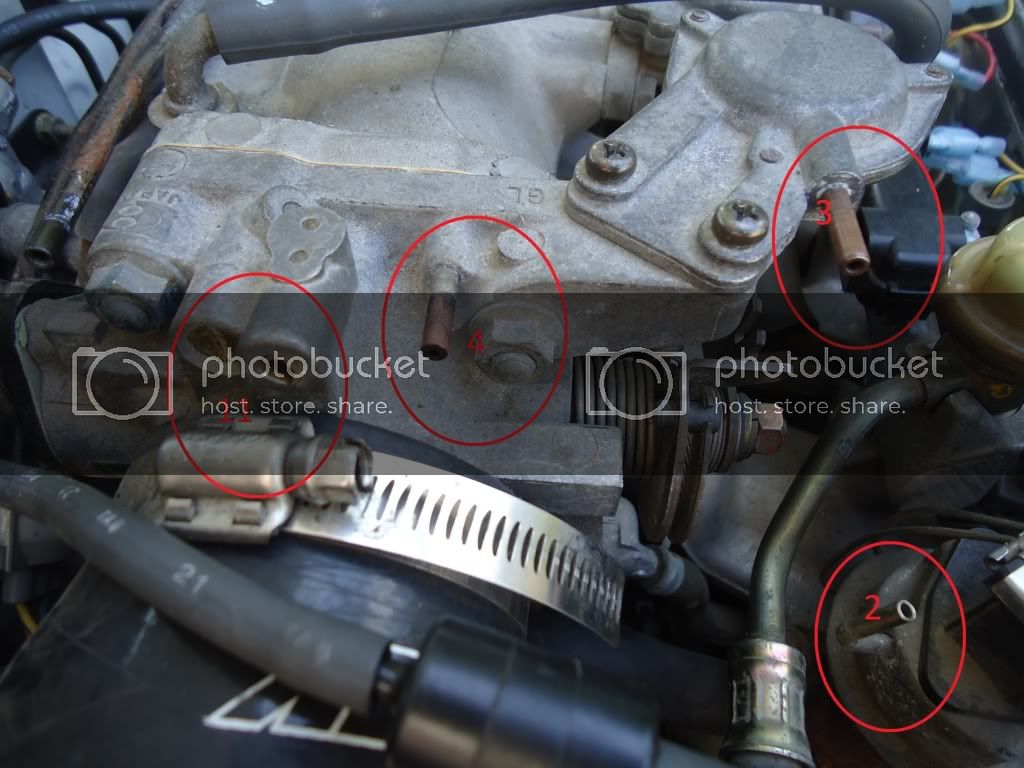

    Oh and on the vacuum nipples: #3 is the dash pot and not needed, #4 should be for the firewall mounted MAP sensor. Not sure WTF #11 is.

    You can read up on what a Dash Pot is on Google. I don't run one on mine anymore, have a 5 speed with lightened up 12# flywheel and it shifts just fine.

    Whatever #11 is, if it needs repair, no big deal. Pull TB off of engine, drill it out and goto hobby shop and get a piece of brass tubing, cut to length, scuff the end with sand paper, and insert into hole with some JB Weld or other suitable expoxy and let it cure.

    Keep the faith bro, you'll get it figured out - it's not that difficult. Plenty of good tech data available online for these cars.

    Last edited: Jun 17, 2012
  14. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
    thanks for the much needed direction im excited to get started on this ive only had it a few weeks and barley drove it so i have plenty of ambition to do it plus i can put some of my own touches to it.

  15. Dual-500

    Dual-500 Well-Known Member VIP

    Messages:
    2,205
    Likes Received:
    216
    Joined:
    Jan 12, 2008
    Location:
    Fort Worth, Texas
    If you don't have to drive it, and have the time to go through it - it probably won't be that big a deal. And when you're finished with it, the familiarization will make future maintenance pretty easy.

  16. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
    that was the plan good sir, since its mine ill make it mine and know it as such :)

  17. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
    and i mean if all else fails and the motor take a dump... i just need a new block go through everythring i have now and the damn near flawless body and ill be back or better off there where im at... if all goes to plan

  18. Dual-500

    Dual-500 Well-Known Member VIP

    Messages:
    2,205
    Likes Received:
    216
    Joined:
    Jan 12, 2008
    Location:
    Fort Worth, Texas
  19. Eagle St Studios

    Eagle St Studios New Member

    Messages:
    38
    Likes Received:
    0
    Joined:
    Jun 15, 2012
    Location:
    WI
    very nice... hopefully within the next few weeks ill have mine back out there rippin up the streets
