Help me identify these plugs / sensors? with PIC's

Discussion in 'HYBRID -> EG-EK / DC' started by IOU1, Jul 9, 2006.

  1. IOU1

    IOU1 Junior Member

    Messages:
    10
    Likes Received:
    0
    Joined:
    Jun 15, 2006
    Help me identify these plugs/sensors this engine is a B16A JDM 92-95

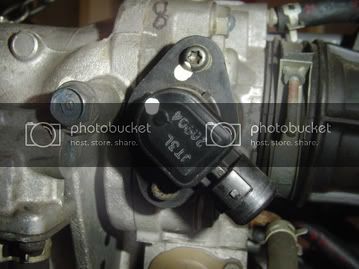

    1st top of intake white plug
    [​IMG]

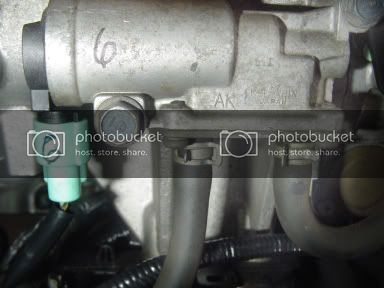

    2nd side of intake
    [​IMG]

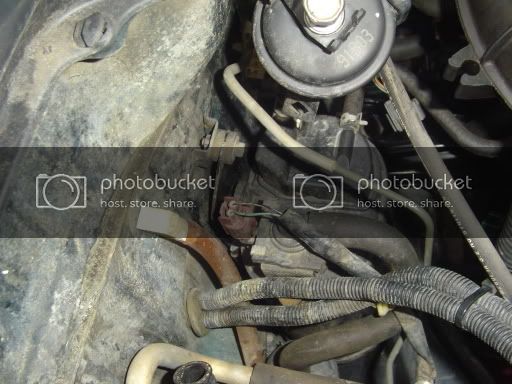

    3rd engine block side facing firewall right under head/intake
    [​IMG]

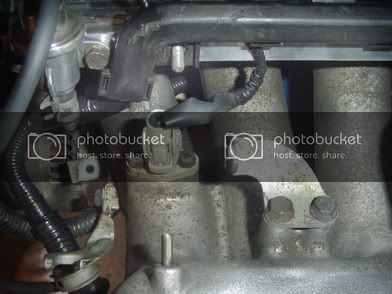

    4th right on end of intake
    [​IMG]

  2. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    1: IAT sensor (Intake Air Temp)

    2: IACV (Idle Air Control Valve)

    3: Knock sensor

    4: TPS (Throttle Position Sensor)

    someone correct me if i'm wrong

  3. lil_red_rex

    lil_red_rex i do body work!

    Messages:
    170
    Likes Received:
    0
    Joined:
    Jun 17, 2006
    Location:
    west have ct
  4. IOU1

    IOU1 Junior Member

    Messages:
    10
    Likes Received:
    0
    Joined:
    Jun 15, 2006
    Thanks what about the MAP sensor dose the B16A 92-95 have one and if so where? Do I need a EVAP purge control solenold valve on this engine?

  5. lil_red_rex

    lil_red_rex i do body work!

    Messages:
    170
    Likes Received:
    0
    Joined:
    Jun 17, 2006
    Location:
    west have ct
    the map sensor should be on the cars firewall....then it runs vaccuum lines to the manifold and the throttle body....as for the evap vavle....i cant remember if u need it or not......i dont think so.....hope this helps

  6. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    wrong.. the map sensor will be on top of the throttle body.. its on the firewall on obd0 cars, EFs.. anything newer will be on the TB..

  7. IOU1

    IOU1 Junior Member

    Messages:
    10
    Likes Received:
    0
    Joined:
    Jun 15, 2006

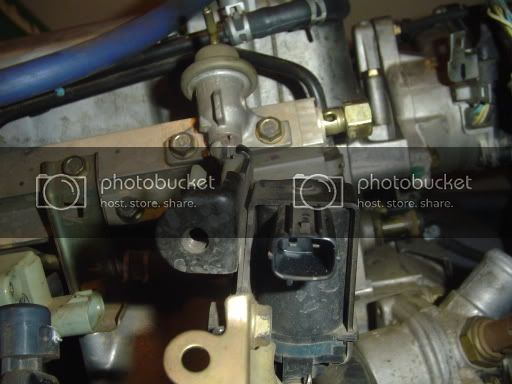

    Ok here is another pic I can not find the map sensor do JDM engine come with one?

    [​IMG]

  8. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    what car is this going into??

  9. 93civicsir

    93civicsir Senior Member

    Messages:
    123
    Likes Received:
    0
    Joined:
    Feb 23, 2005
    Location:
    kansas
    yes they do but they are mounted on the firewall. i ran into the same problem. but you can just use the map sensor that is on your car. just run the grey hose that is on top or your throttle body to the bottom of your cars map sensor. then mount it to the fire wall some how. make a braket if you can.

  10. IOU1

    IOU1 Junior Member

    Messages:
    10
    Likes Received:
    0
    Joined:
    Jun 15, 2006
    This engine is going in a 1999 dx Civic

  11. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    well.. if you plan on making this smog legal it would need to be on top of the TB

  12. flydex28

    flydex28 Senior Member

    Messages:
    328
    Likes Received:
    2
    Joined:
    Feb 18, 2003
    Location:
    Oregon coast
    I concur...ran into the same problem myself. I had to cap off the charcoal canister though as the new engine did not come with the evap purge solinoid. But I guess that doesnt matter since we dont have smog checks here. And yes the MAP is on the firewall...or should be anyways, it will not be on the TB.

  13. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
    well.. in my 94 hatch its on the TB.. i also have the 92-95 JDM b16, but with a delsol vtec TB for BAR..

  14. IOU1

    IOU1 Junior Member

    Messages:
    10
    Likes Received:
    0
    Joined:
    Jun 15, 2006
    Ok I have some more questions here are the pic's?:confused:

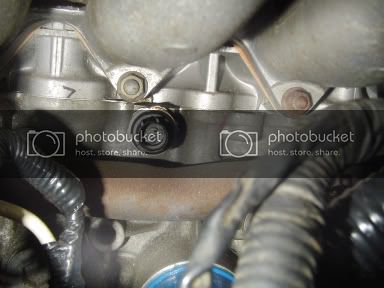

    This is the only sensor that is on the fire wall what is this its on top of the can?
    [​IMG]


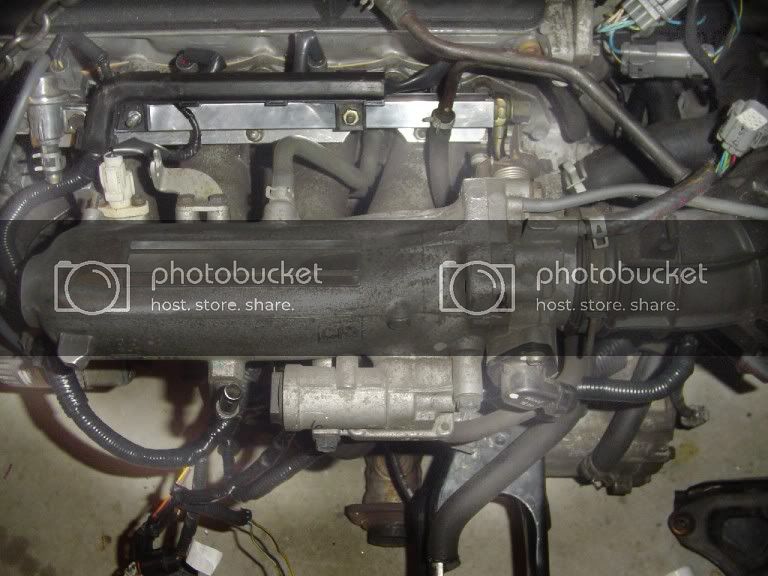

    This is a sensor off of my old engine 1999 D16Y7 what is this?
    [​IMG]


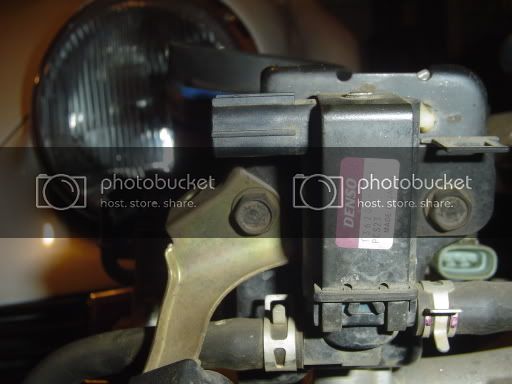

    Another pic of the same sensor just different view?
    [​IMG]


    Oh as you can see I have put the engine in call but still have a lot of work to do.
    [​IMG]

  15. eg6sir

    eg6sir Supa Mod Moderator VIP

    Messages:
    21,703
    Likes Received:
    321
    Joined:
    Aug 17, 2005
    Location:
    661 BK CA
