SYNOPSIS

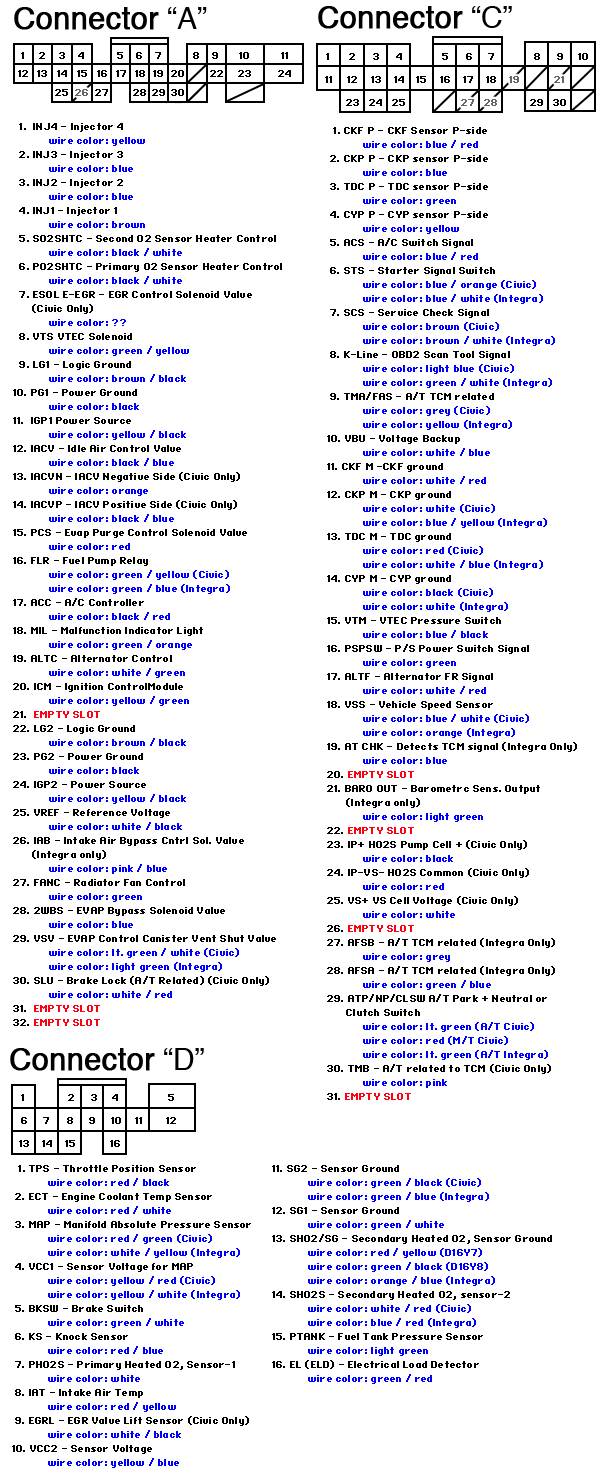

This article exploits a combination of ECU pin locations and wire colors for all M/T '96-98 Civic and '96-99 Integra VTEC and NON-VTEC vehicles.
OBD2A PLUG CONFIGURATION

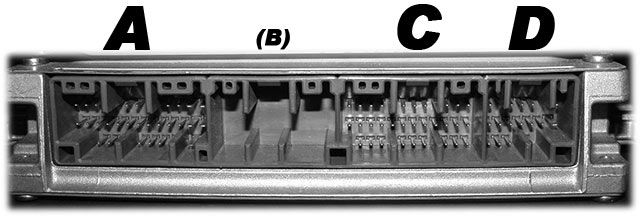

Below is an example that shows the onboard (female) connector configuration for an OBD2a ECU.
Take note of plugs: A, C, and D.
The blank connector (B) is only used with civic/integra vehicles equipped with A/T.
ADDITIONAL INFORMATION
These pin-out locations were cross-referenced with OBD2a Civic & Integra Helm's service manuals.
The information in this article applies to:
This article exploits a combination of ECU pin locations and wire colors for all M/T '96-98 Civic and '96-99 Integra VTEC and NON-VTEC vehicles.
OBD2A PLUG CONFIGURATION
Below is an example that shows the onboard (female) connector configuration for an OBD2a ECU.
Take note of plugs: A, C, and D.
The blank connector (B) is only used with civic/integra vehicles equipped with A/T.
ADDITIONAL INFORMATION
These pin-out locations were cross-referenced with OBD2a Civic & Integra Helm's service manuals.
The information in this article applies to:
- All US OBD2a (96-98) M/T civic ecu's
- All US OBD2a (96-99) M/T integra ecu's
- All JDM OBD2a M/T civic ecu's
- All JDM OBD2a M/T Integra ecu's
