H22 Swap into '99 Civic *PICS*

Discussion in 'HYBRID -> EG-EK / DC' started by Dr Tweak, Nov 4, 2006.

  1. Dr Tweak

    Dr Tweak New Member

    Messages:
    42
    Likes Received:
    1
    Joined:
    Nov 1, 2006
    [​IMG]

    [​IMG]

    [​IMG]

    Wiring up the H22 (using P13 ECU and modifying the Civic harness)

    [​IMG]

    I didn't have the bracket to hold the timing belt tensioner, so I whipped this up in a few minutes with a spare bracket, a hammer, and a cutting wheel...

    [​IMG]

    [​IMG]

    It doesn't seem like it could fit!

    [​IMG]

    PUSH! PUSH!

    [​IMG]

    [​IMG]


    More to follow this coming week =) See more of my swaps at Phoenix Tuning - Home and PSD_Home

    Last edited: Nov 18, 2006
  2. TurboMirage

    TurboMirage YEEAAAHHH VIP

    Messages:
    24,577
    Likes Received:
    696
    Joined:
    May 20, 2003
    Location:
    Central, MA
    nice!

    i hope that bracket holds ;)

  3. Dr Tweak

    Dr Tweak New Member

    Messages:
    42
    Likes Received:
    1
    Joined:
    Nov 1, 2006
    Oh no, that bracket doesn't stay there, it just holds the hydraulic tensioner in a compressed position so that I can slip the new timing belt on. Then it's removed and it tightens the belt up. :)

  4. Dr Tweak

    Dr Tweak New Member

    Messages:
    42
    Likes Received:
    1
    Joined:
    Nov 1, 2006
    Here's the rest of it :)

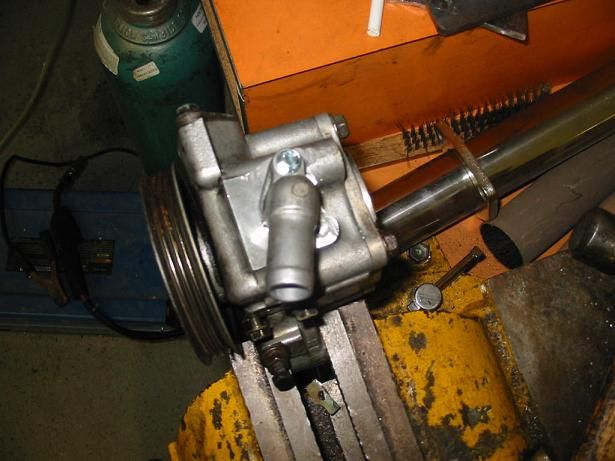

    Modifying the power steering pump. I rotated the return line fitting and drilled a new hole to bolt it in. I had to trim the pump a little for it to fit.

    [​IMG]

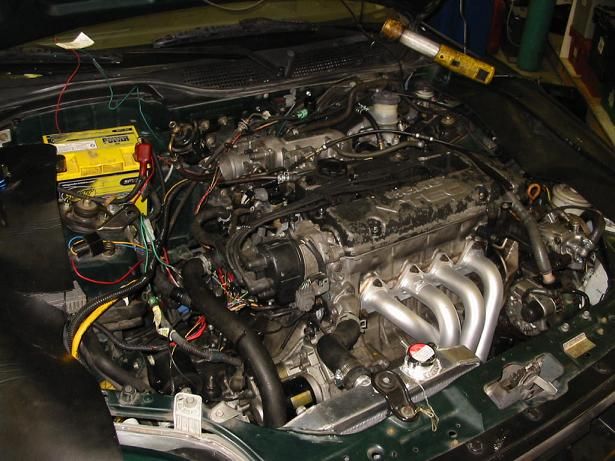

    First startup...

    [​IMG]

    After I confirmed that it was running correctly, I detached the harness and loomed it up...

    [​IMG]

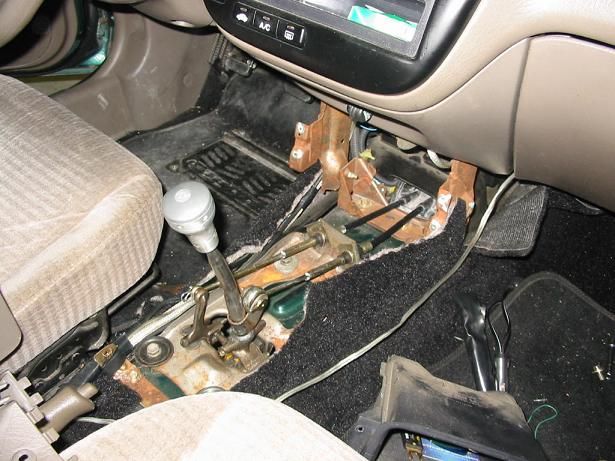

    Cutting the hole for the shifter...

    [​IMG]

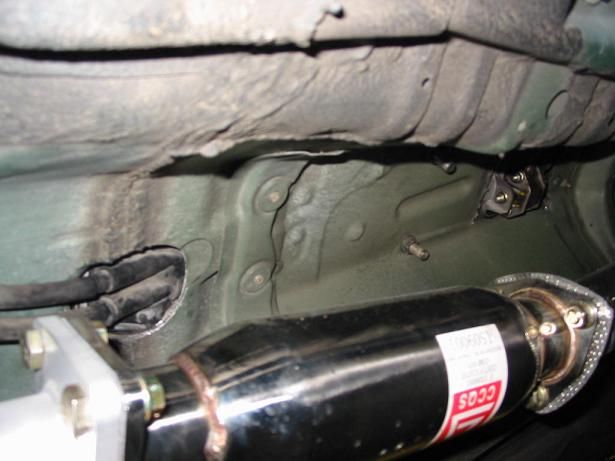

    Shot from underneath...

    [​IMG]

    There it is. Once the interior was installed you could hardly tell.

    [​IMG]

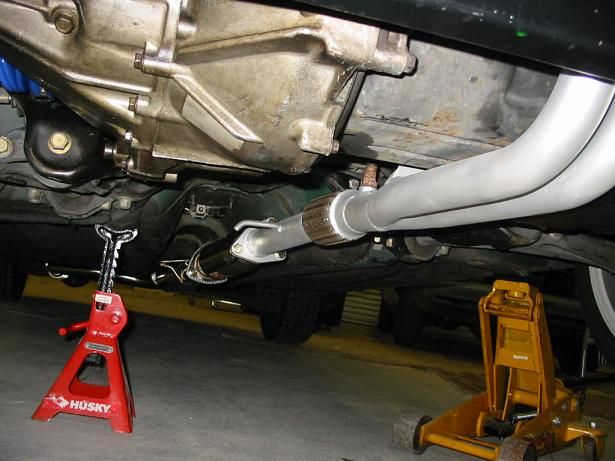

    Exhaust installed. The cat-back had to be shortened to fit.

    [​IMG]

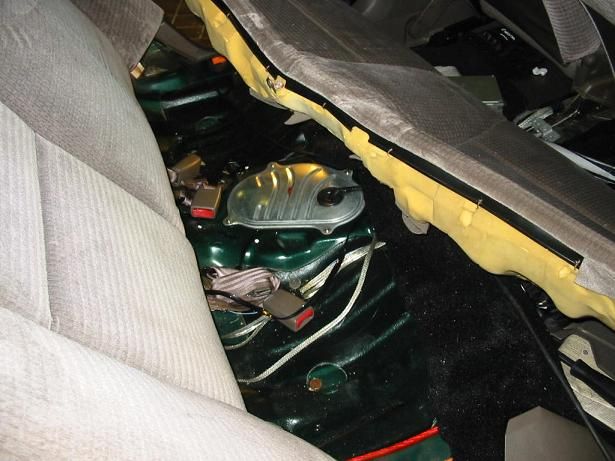

    Installing the new fuel pump...

    [​IMG]

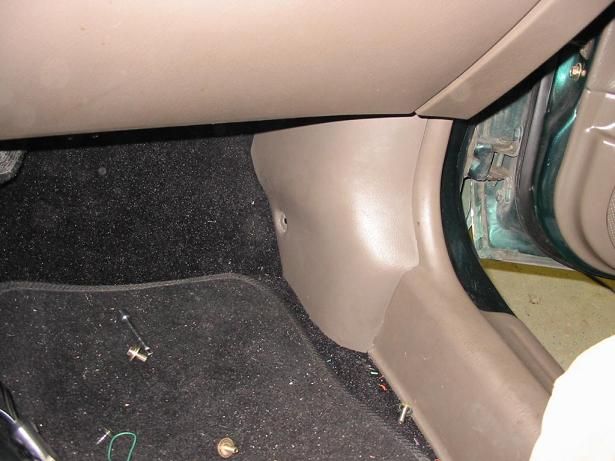

    The P13 ECU just barely fits behind this trim panel.

    [​IMG]

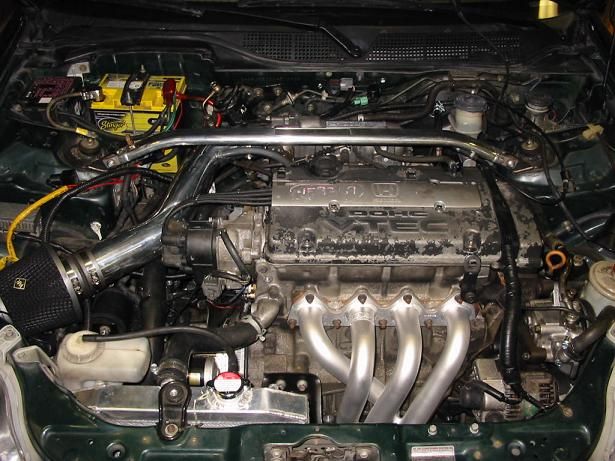

    All that needs to be done is the a/c and clean up the engine. It runs great and is VERY strong.

    [​IMG]

    [​IMG]

  5. 97SuperCivic

    97SuperCivic New Member

    Messages:
    31
    Likes Received:
    0
    Joined:
    Nov 29, 2006
    Location:
    Minnesota
    Hey, looks great, clean as hell. How many swaps have you done, and how long did that take?

  6. Dr Tweak

    Dr Tweak New Member

    Messages:
    42
    Likes Received:
    1
    Joined:
    Nov 1, 2006
    Well I'm an expert in all Toyota swaps since I've been doing them for quite some time now. This was my first H22/Civic swap though. It took me about 4-5 days of work including rewiring the harness (not using an adapter harness) and whatnot.

    -Doc

  7. Seany-izzle

    Seany-izzle New Member

    Messages:
    7,738
    Likes Received:
    8
    Joined:
    Aug 25, 2003
    Location:
    In a fucking house.
    awesome. what kind of mounts and axles did you use? Could you make a list of parts needed and stuff for reference purposes?

  8. Dr Tweak

    Dr Tweak New Member

    Messages:
    42
    Likes Received:
    1
    Joined:
    Nov 1, 2006
    I beleive the kit was a place racing kit, and the axles were specific for the swap (provided by the customer). There are several lists out there if you look around, that's what I would do.

    Where in VT are you from? I used to live in Newport.

    -Doc

  9. hazzardboy95

    hazzardboy95 Hon-daaaa

    Messages:
    671
    Likes Received:
    0
    Joined:
    Dec 5, 2006
    Location:
    Pasadena, Md
    nice swap, are you looking to hook it up anymore, or are you gonna run all motor

  10. Seany-izzle

    Seany-izzle New Member

    Messages:
    7,738
    Likes Received:
    8
    Joined:
    Aug 25, 2003
    Location:
    In a fucking house.
    Oh no, not jewport haha. Im from brattleboro, southern vt. I go to school with a bunch of kids from up yonder.

  11. DelSlow89

    DelSlow89 93 Del Sol

    Messages:
    59
    Likes Received:
    0
    Joined:
    Dec 7, 2006
    Location:
    I live in Portsmouth, VA
    Hey I Got a 93 Del sol and im tryin to get a new engine for it. i was looking at the b16, b18 and b20 and im not sure which one would be the easiest to do?

  12. reikoshea

    reikoshea HS Troll...And Mod Moderator VIP

    Messages:
    12,633
    Likes Received:
    193
    Joined:
    Apr 27, 2005
    Location:
    San Antonio, TX
    best to create a new thread for this question.

    Sick swap, doc. Looks like it belongs there.

  13. ThatGuy4life

    ThatGuy4life The Riced Sleeper

    Messages:
    1,478
    Likes Received:
    14
    Joined:
    Nov 27, 2006
    Location:
    Albuquerque, NM
  14. DelSlow89

    DelSlow89 93 Del Sol

    Messages:
    59
    Likes Received:
    0
    Joined:
    Dec 7, 2006
    Location:
    I live in Portsmouth, VA
    Help!!!!!!

    How do you start a Thread, I'm new to this Forum and I have no clue how to post or start a thread. By the way How hard is it to swap a b15 del sol for a b18 and c1 LSD tranny

  15. TurboMirage

    TurboMirage YEEAAAHHH VIP

    Messages:
    24,577
    Likes Received:
    696
    Joined:
    May 20, 2003
    Location:
    Central, MA
  16. blu

    blu New Member

    Messages:
    2
    Likes Received:
    0
    Joined:
    Jan 10, 2007
    How hard of a swap was it? How much did it cost? I'm dying to put an H in my 98' Civic EX. I've heard I would lose power steering and AC, was it hard preserving those things?

  17. Dr Tweak

    Dr Tweak New Member

    Messages:
    42
    Likes Received:
    1
    Joined:
    Nov 1, 2006
    I think including all the extra parts and labor it costed this customer around $2500, including the a/c and p/s and everything. That doesn't include the engine or mount kit.

    -Doc
