CAFROG's K20-R EGg

Discussion in 'HYBRID -> EG-EK / DC' started by CAFROG, Jul 22, 2011.

  1. CAFROG

    CAFROG Honda Minion

    Joined:
    Apr 5, 2009
    Messages:
    4,040
    Likes Received:
    90
    Location:
    NOR-CAL
    Car is a 1992 Civic Si that I have owned since '96
    Had stock D16Z6, B18B1, B16A w/CTR cams, and now I am K-swapping.
    2010
    [​IMG]

    [​IMG]

    Put stock stuff back on and parted that stuff out on CL and H-T.
    As many know....it can be a pain in the a$$ to deal with that stuff but I made my way to a little over $3k

    Just want to say I know this is expensive and there are so many other possibilities for the car or.....
    life in general with the money I spent but I have wanted this swap for a very long time. :violin:

    This swap takes a lot to absorb and make educated decisions. There are so many options and companies.
    I researched for a very long time....lots of reading.
    And, thanks to the K20A.org and their knowledgeable minions, I have left K-series nOOb status.....finally.
    So.....just as food for thought.....Extra super nOOb questions can be found with Google and time....I did it and so can you!

    Got a K20A complete swap from HMO (including PRC ECU, Shift box/cables, USDM Type S axles).
    It was wrapped/padded/strapped/padded and took 10 minutes to get the swap ready for the picker lol

    [​IMG]
    [​IMG]


    Put a RBC Intake Manifold on (nice deal BNIB from Honda dealership online)
    Karcepts TB adapter and Hondata IMG.
    Hybrid Racing Fuel Rail (bought by my woman for our anniversary :spin:)
    Black Fuel Lines and FPR ready to go on
    K20Z3 Idler Pulley and a 7 rib Napa 51in belt (easy way to run without PS and AC) Easiest thing I have done on it yet lol

    [​IMG]
    [​IMG]


    Greasy dirty jobs in hot weather so I did not take any pics of the Clutch install but I used a OEM Throw Out Bearing and Competition Clutch stg4 clutch kit. Did it like I own a Helm's Manual :ph34r:

    Engine Bay after 3 Different motors in and out....each time was unique. Times were with friends who know whats up...to a friend that was a paper wieght...to me by myself.
    ...Sweating , getting frustrated and becoming more gorilla than calm/collected :shrug:

    [​IMG]
    [​IMG]


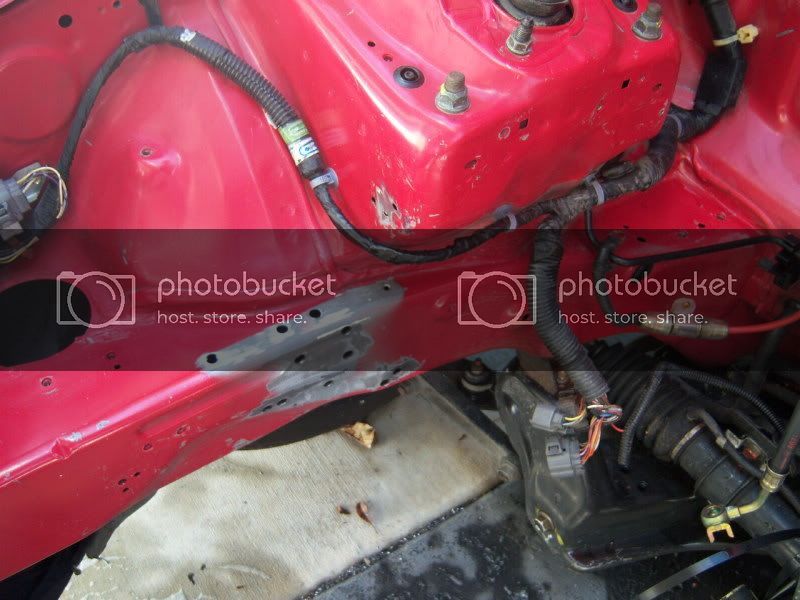

    So I took the old Trans mount off with some drilling of the 12 spot welds and took it to a local
    PPG store where they matched the color into a rattle can for less than $10 OTD. I didn't really care
    that much and just wanted something cheap (b/c I don't wanna save anymore) I will take after pics once
    I've buffed out the old paint to blend but I am stoked with the results for $13 (got two grades of wet sandpaper and the rattle can)

    [​IMG]


    I was able to get the motor/trans in last night. Had two friends to help (yes, please)
    Hasport Mounts installation was really easy (didn't like the Standard Size bolts it came with but they're much cleaner than what I had).
    Used my cherry picker and engine leveler (Harbor Freight = Shadetree Mechanics Win). Painter's Tape was placed around for some damage control
    Motor went in as easy as any B-series in my chassis. Just tried to be smart and slow....for once (don't wanna mess up the rattle can job....yo).
    Nothing hooked up.......just mounted

    [​IMG]


    I will add more later. Its hot....like hot and humid for CA right now so I am being a lazy bum for today.
    Charge Harness/Grounds will most likely be next.

    As of now (especially b/c of funds) its gonna be rolling the Virgin PRC ECU (easy mod to make it work).
    Its fine with H/I/E on the motor it was meant for
    (even with vodoo differences between Japanese octane and elevation vs. the weak a$$ 91 octane and the valley)
    And.....I PROMISE K-Pro will be happening so lets just leave it at that [​IMG]
    Last edited: Oct 31, 2011
  2. CAFROG

    CAFROG Honda Minion

    Joined:
    Apr 5, 2009
    Messages:
    4,040
    Likes Received:
    90
    Location:
    NOR-CAL
    I forgot that I had Karcepts 4X100 Hubs. They will accept the USDM Type S Axles once I swap the inner joints (36mm nut).
    New OEM bearings for my car and had a machine shop press them in (w/my flywheel re-surface and my 1992 OEM rotors turned)

    OEM and Karcepts

    [​IMG]

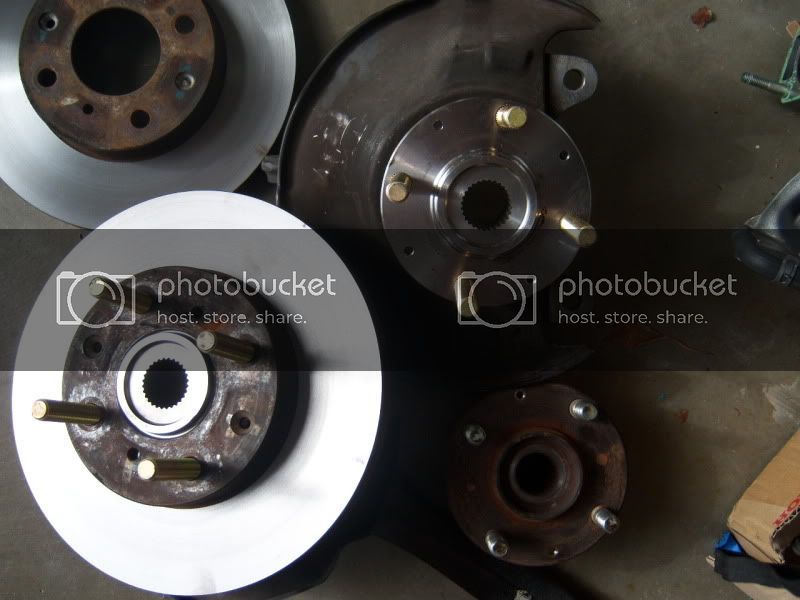

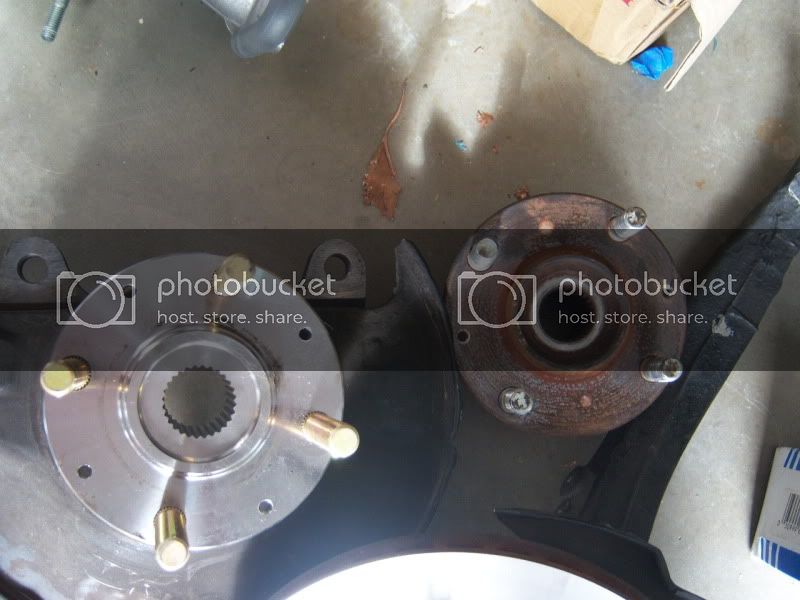

    The Two new hubs pressed in and the OEM next to them.

    [​IMG]

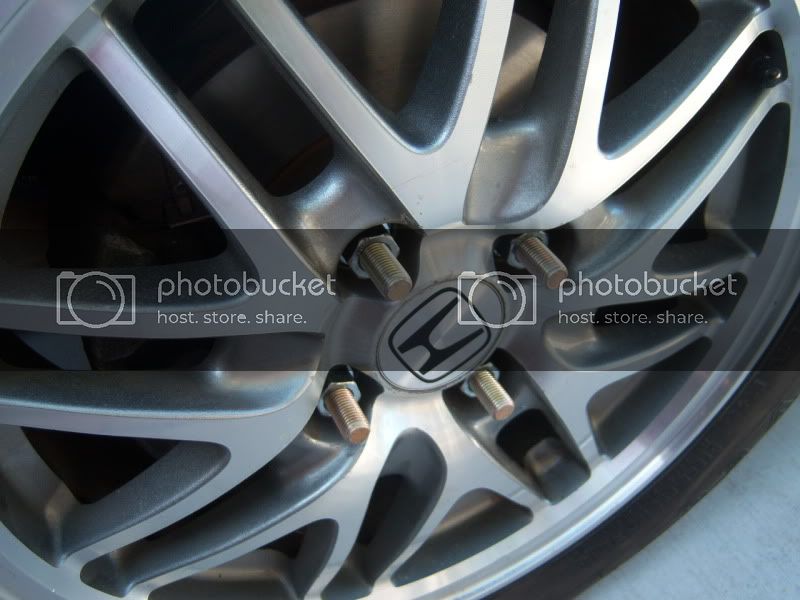

    On my meshies.....the Hubs come with ARP studs :shrug:

    [​IMG]
    Last edited: Jul 22, 2011
  3. CAFROG

    CAFROG Honda Minion

    Joined:
    Apr 5, 2009
    Messages:
    4,040
    Likes Received:
    90
    Location:
    NOR-CAL

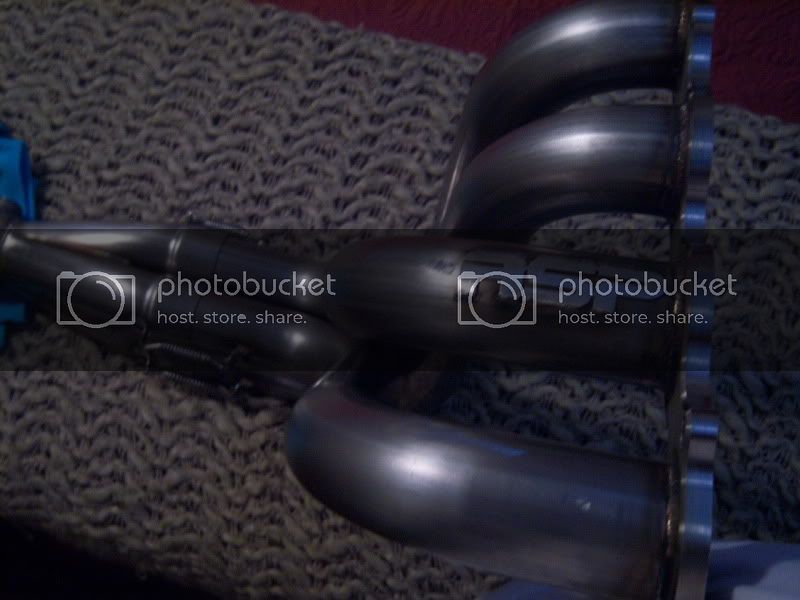

    And the ASP K-swap header that I got on a group buy (2.5" outlet to 2.5" cat to transition to 3" to Vibrant Muffler)

    [​IMG]

    The Vibrant 3" muffler

    [​IMG]
  4. phunky.buddha

    phunky.buddha Admin with a big stick Admin

    Joined:
    Sep 30, 2002
    Messages:
    28,428
    Likes Received:
    221
    Location:
    Dallas / Fort Worth, TX
  5. wikedeye

    wikedeye Well-Known Member

    Joined:
    Dec 14, 2006
    Messages:
    1,760
    Media:
    1
    Likes Received:
    52
    Location:
    Savannah, Ga.
    Damn the thread is almost over. Good job though.
  6. eg6sir

    eg6sir Supa Mod Moderator

    Joined:
    Aug 17, 2005
    Messages:
    21,628
    Media:
    3
    Likes Received:
    303
    Location:
    661 BK CA
    sweetness... glad to see its getting done so soon.. i figured we'd have to wait a while
  7. Magana559

    Magana559 The Warden

    Joined:
    Aug 9, 2008
    Messages:
    2,568
    Media:
    10
    Albums:
    2
    Likes Received:
    42
    Location:
    fresno Ca
    Good job chris looks damn good I'm Hella digging that r motor
  8. Dual-500

    Dual-500 Well-Known Member

    Joined:
    Jan 12, 2008
    Messages:
    1,989
    Likes Received:
    124
    Location:
    Fort Worth, Texas
    Yes indeed! That outta be fun fun fun!!!! :thumbsup:
  9. CAFROG

    CAFROG Honda Minion

    Joined:
    Apr 5, 2009
    Messages:
    4,040
    Likes Received:
    90
    Location:
    NOR-CAL
    Sadly.....it still seems like I have a lot to do. Gotta cut my hole for the shift box. Welding the 2.5"-3" transition to a flange and to the 3" exhaust.....haven't welded in years and never welded on exhaust :ph34r: Lets see what I can do on my dad's Miller 110
  10. Dual-500

    Dual-500 Well-Known Member

    Joined:
    Jan 12, 2008
    Messages:
    1,989
    Likes Received:
    124
    Location:
    Fort Worth, Texas
    What about weight for the engine/tranny assembly compared to stock? Changes to front springs required? Looks fabulous BTW.
    Last edited: Jul 23, 2011
  11. CAFROG

    CAFROG Honda Minion

    Joined:
    Apr 5, 2009
    Messages:
    4,040
    Likes Received:
    90
    Location:
    NOR-CAL
    Hard for me to compare to stock motor (D16Z6) b/c its been so long since I had it in (1998)

    In comparison to a B-series swap.......it sits about the same right now......but with no fluids and such.

    Here it sits this morning: Neuspeed 2.25", KYB shocks (last legs) 205 50 R15 Meshies

    [​IMG]


    And I found these on CL for a good deal (lots of thread left) But I do not think they will roll lol.
    13X8 22" Slicks with a +4 offset. So I probably need adj coil overs and roll 4X4 style :(

    [​IMG]


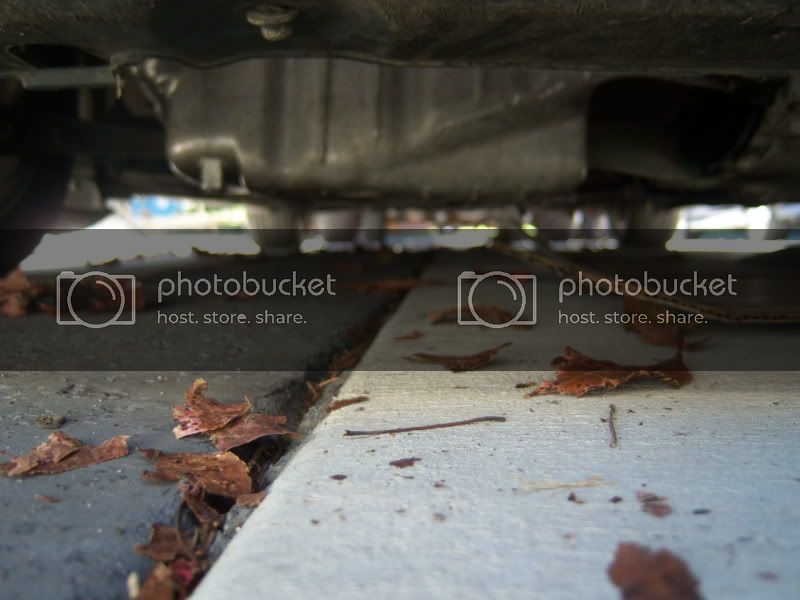

    Here is the scary part about lowered K-swaps.......oil pan clearance about 2-13/16".......so lets say almost 3" to be optimistic :clown2:
